WIKA operating instructions process transmitter, model UPT-2x
14111166.02 04/2015 EN/DE
EN
5. Commissioning, operation
Screwing in
CAUTION!
Improper mounting
Process transmitter is damaged.
▶
Tighten the process transmitter using the spanner flats.
▶
Do not tighten using the sensor housing or the case head.
▶
Use a suitable open-ended spanner.
▶
Do not cross the threads.
Screw the process transmitter into the mounting location with a spanner using the
spanner ats.
The tightening torque depends on the dimensions of the process connection and the
gasket used (form/material).
For information on tapped holes and welding sockets, see Technical infor-
mation IN 00.14 at www.wika.com.

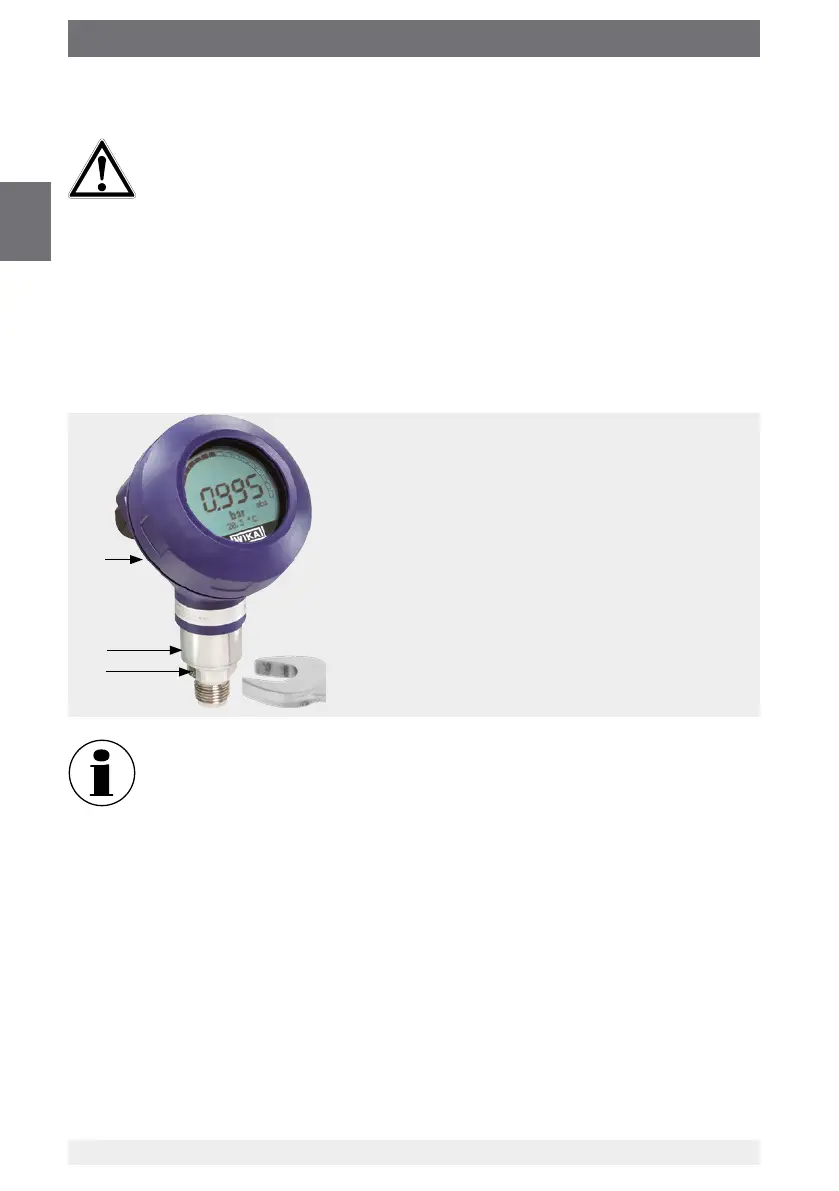

Spanner ats
Sensor housing
Case head
