WIKA operating instructions process transmitter, model UPT-2x
14111166.02 04/2015 EN/DE
EN
2. Design and function
2. Design and function

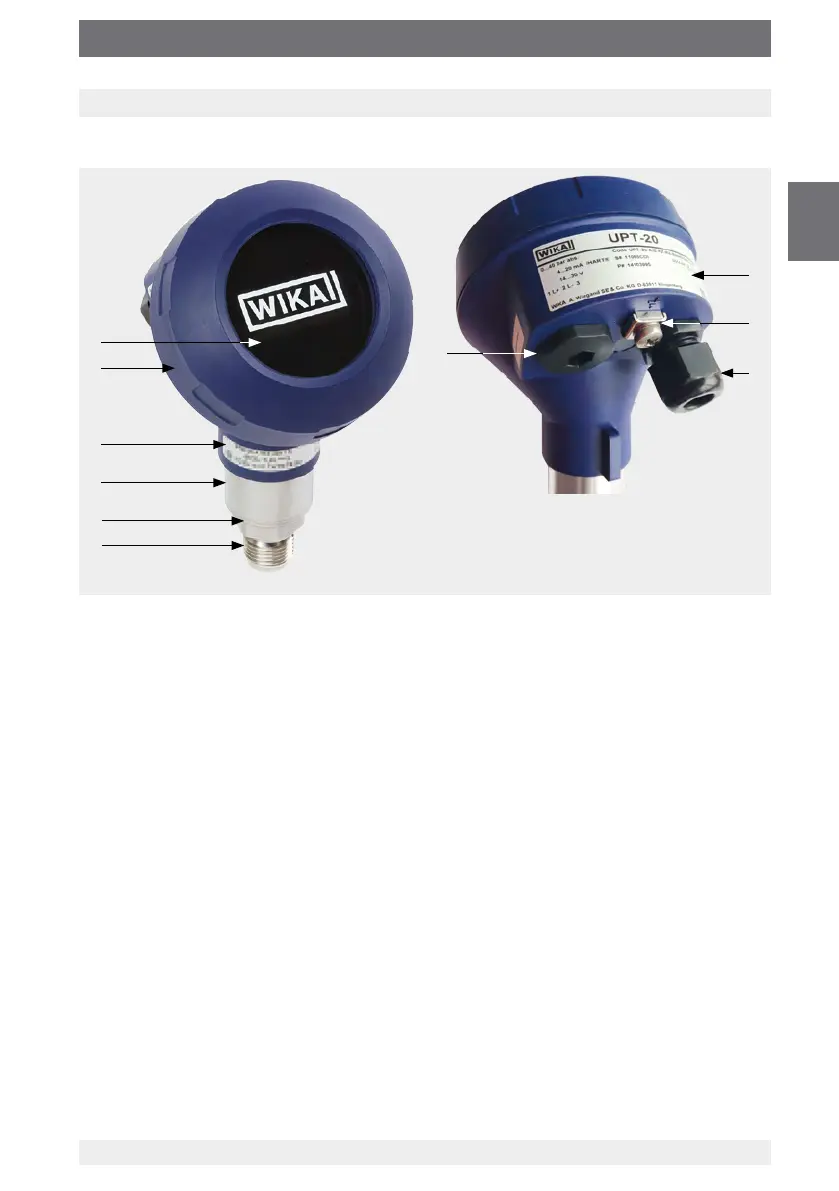

2.1 Design
2.2 Description
The process transmitter processes the prevailing pressure and converts it into a current
signal. This current signal can be used for the evaluation, control and monitoring of the
process.
HART
®
(option)
The instrument version with HART
®
can communicate with a controller (master).
Measuring range scaling (turndown)
The start and end of the measuring range can be set within dened ranges.

Process connection, thread

Push-on cap

Process connection, spanner ats

Product label

Sensor housing

Ground screw, outside

Ex-relevant data

Electrical connection, cable gland

Case head

Second bore for cable gland (delivered sealed
with blind plug)










