10. Detailed settings
10.3 Setting the alarm signal
Alarm signal downscale (3.5 mA)
In the event of a failure in the process transmitter, the output signal changes itself to
3.5 mA.
Alarm signal upscale (21.5 mA)
In the event of a failure in the process transmitter, the output signal changes itself to
21.5 mA.

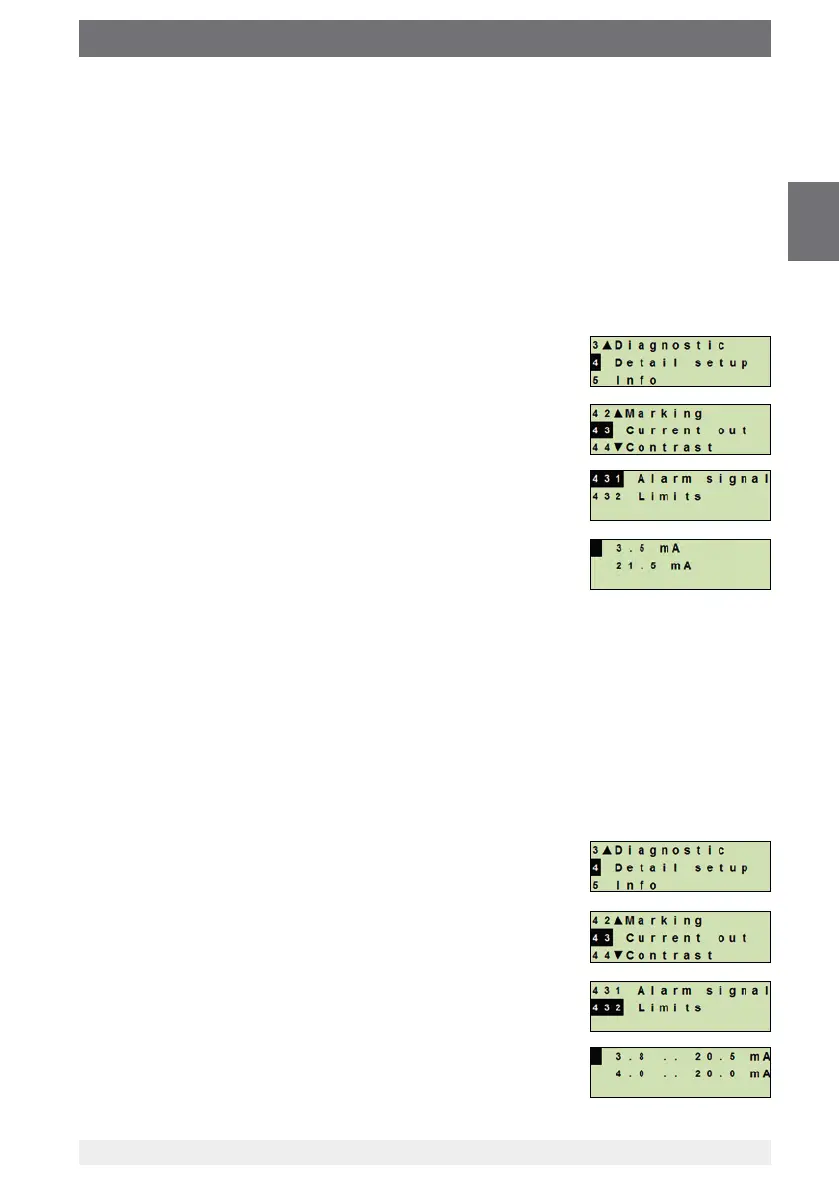

1. Open the operating menu with [↵].
Select “Detail setup” and conrm with [↵].
2. Select “Current out” and conrm with [↵].
3. Select “Alarm signal” and conrm with [↵].
4. Select alarm signal and conrm with [↵].
3.5 mA = alarm signal downscale
21.5 mA = alarm signal upscale
» Alarm signal is set.
10.4 Setting the signal limits
The signal limits dene the current range within which the output signal can be. Above
or below the signal limits are the preset limits for the output signal.
Setting range 3.8 ... 20.5 mA or 4.0 ... 20.0 mA (NAMUR recommendation for process
instruments is 3.8 ... 20.5 mA)
1. Open the operating menu with [↵].
Select “Detail setup” and conrm with [↵].
2. Select “Current out” and conrm with [↵].
3. Select “Limits” and conrm with [↵].
3. Select signal limits and conrm with [↵].
» Signal limits are set.
