WIKA operating instructions process transmitter, model UPT-2x
14111166.02 04/2015 EN/DE
EN
5. Commissioning, operation

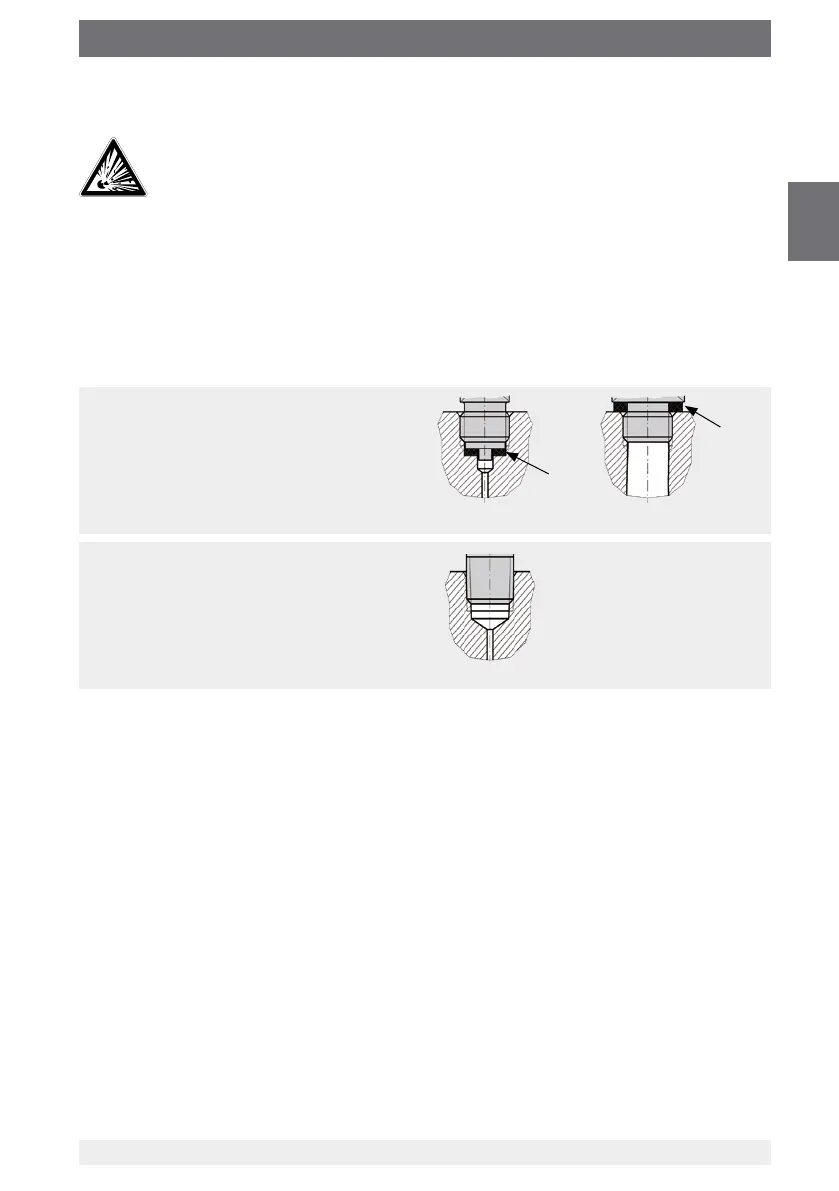

5.1.2 Mounting the process transmitter
DANGER!
Damaged diaphragm of the ush process connection
If the diaphragm is damaged, the explosion protection is no longer guaran-
teed. Through any explosion resulting from this, there will be a high danger
to life.
▶
Before commissioning, the diaphragm should be checked for visible
damage. Leaking fluid is indicative of damage.
▶
Protect the diaphragm from contact with abrasive media and against any
impacts.
Sealing
Parallel threads
Seal the sealing face  with at gaskets,
sealing rings or WIKA prole sealings.
per EN 837 per DIN 3852-E


Tapered threads
Wrap threads with sealing material,
e.g. PTFE tape.
NPT, R and PT
