5. Commissioning, operation

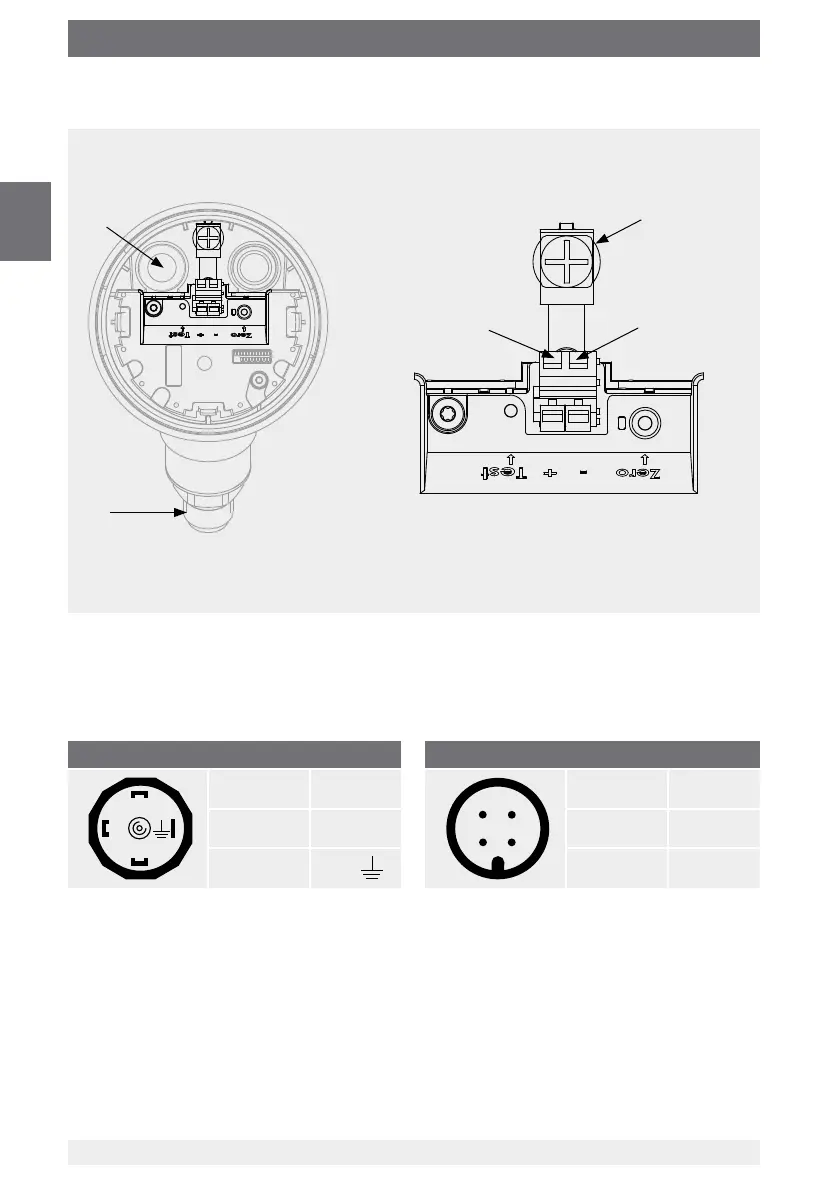

5.2.7 Pin assignments

Pin assignmentOutlet for connection cable





Cable gland

Negative power supply terminal –

Process connection

Ground screw, inside (GND)

Positive power supply terminal +
Spring-loaded terminal
Angular connector DIN 175301-803 A
1
2
3
+ 1
– 2
Shield GND
Circular connector M12 x 1 (4-pin)
4
3
1
2
+ 1
– 3
Shield 4
The shield connection is located on the inside of the instrument.
