WIKA UPT-20 User Manual

24
WIKA operating instructions process transmitter, model UPT-2x
14111166.02 04/2015 EN/DE
EN
6. Display and operating unit, model DI-PT-U
6.5 Setting the additional display
The additional display can indicate the following values:
■
Pressure Applied pressure is displayed.
■
Level Level is displayed.
■
Volume Volume is displayed.
■
Current Output signal is displayed.
■
PV percent Output signal is displayed as a percentage.
■
Sensor temperature Temperature at the sensor is displayed.
■
PV (primary value) The value corresponding to the mode will be displayed.
If the mode is changed, then the main display will change.
Drag pointer values
■
P
min
/ P
max
■
PV
min
/ PV
max
■
T
min
/ T
max
Further data
■
TAG short (max. 8 capital letters and gures)
■
TAG long (max. 32 alphanumeric characters)
■
Empty (additional display switched o)

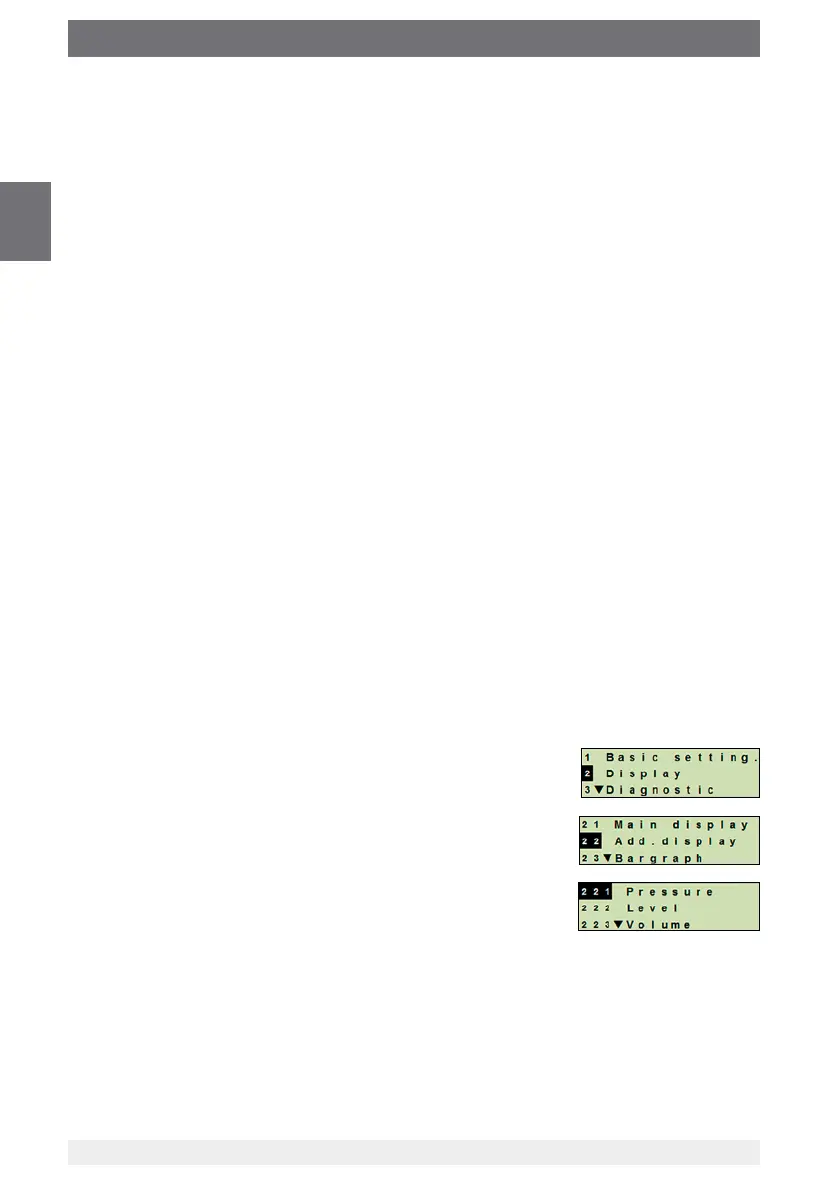

1. Open the operating menu with [↵].
Select “Display” and conrm with [↵].
2. Select “Add. display” and conrm with [↵].
3. Select value and conrm with [↵].
» Additional display indicates the selected value.
