9. Diagnostic functions
9.2 Display/reset drag pointer
The drag pointer function indicates the limit values reached since the last reset. These
limit values can be displayed and reset.
9.2.1 Drag pointer P
min
/ P
max

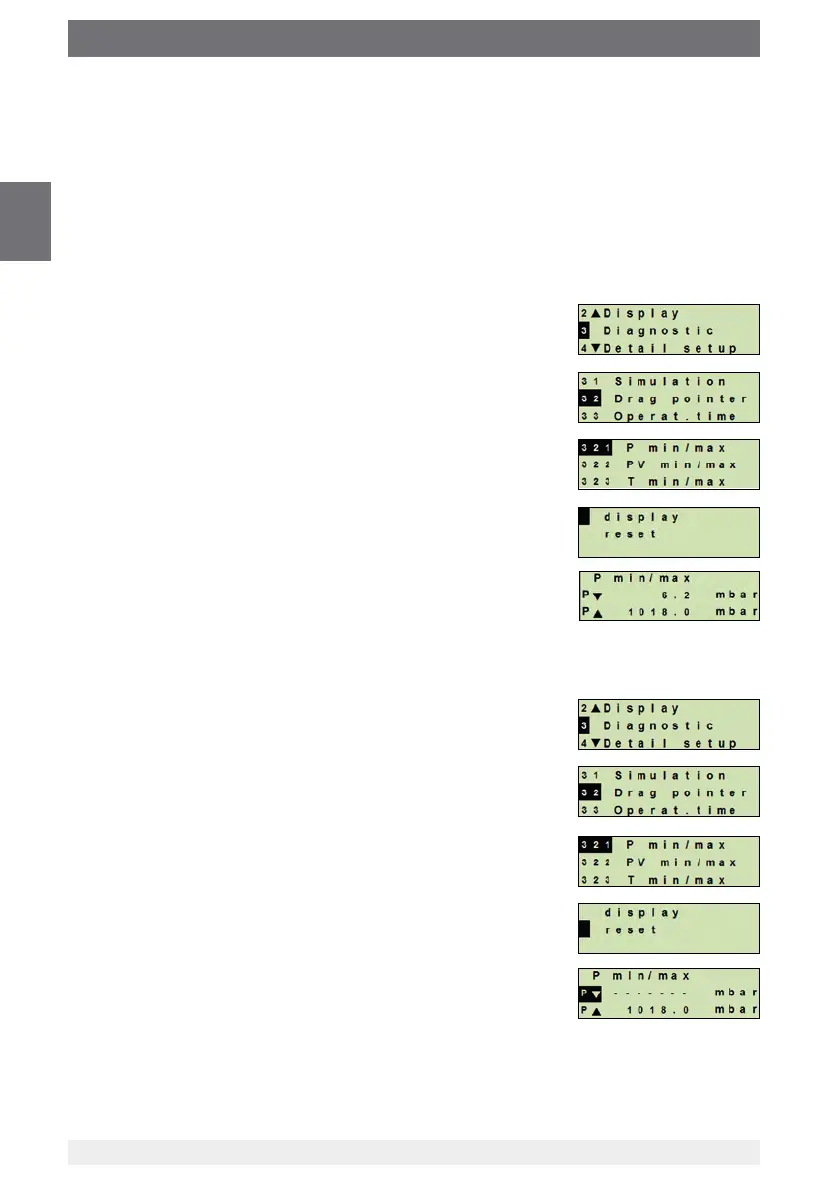

Displays the minimum and maximum pressure that has occurred since the last reset.
Displays
1. Open the operating menu with [↵].
Select “Diagnostic” and conrm with [↵].
2. Select “Drag pointer” and conrm with [↵].
3. Select “P min/max” and conrm with [↵].
4. Select “display” and conrm with [↵].
» Limit values are displayed.
P
▼
= P
min
P
▲
= P
max
Resetting
1. Open the operating menu with [↵].
Select “Diagnostic” and conrm with [↵].
2. Select “Drag pointer” and conrm with [↵].
3. Select “P min/max” and conrm with [↵].
4. Select “reset” and conrm with [↵].
5. Select limit value and conrm with [↵].
■
P
▼
= P
min
■
P
▲
= P
max
» Limit value is reset.
