WIKA operating instructions process transmitter, model UPT-2x
14111166.02 04/2015 EN/DE
EN
15. Specications
Hygienic Hygienic

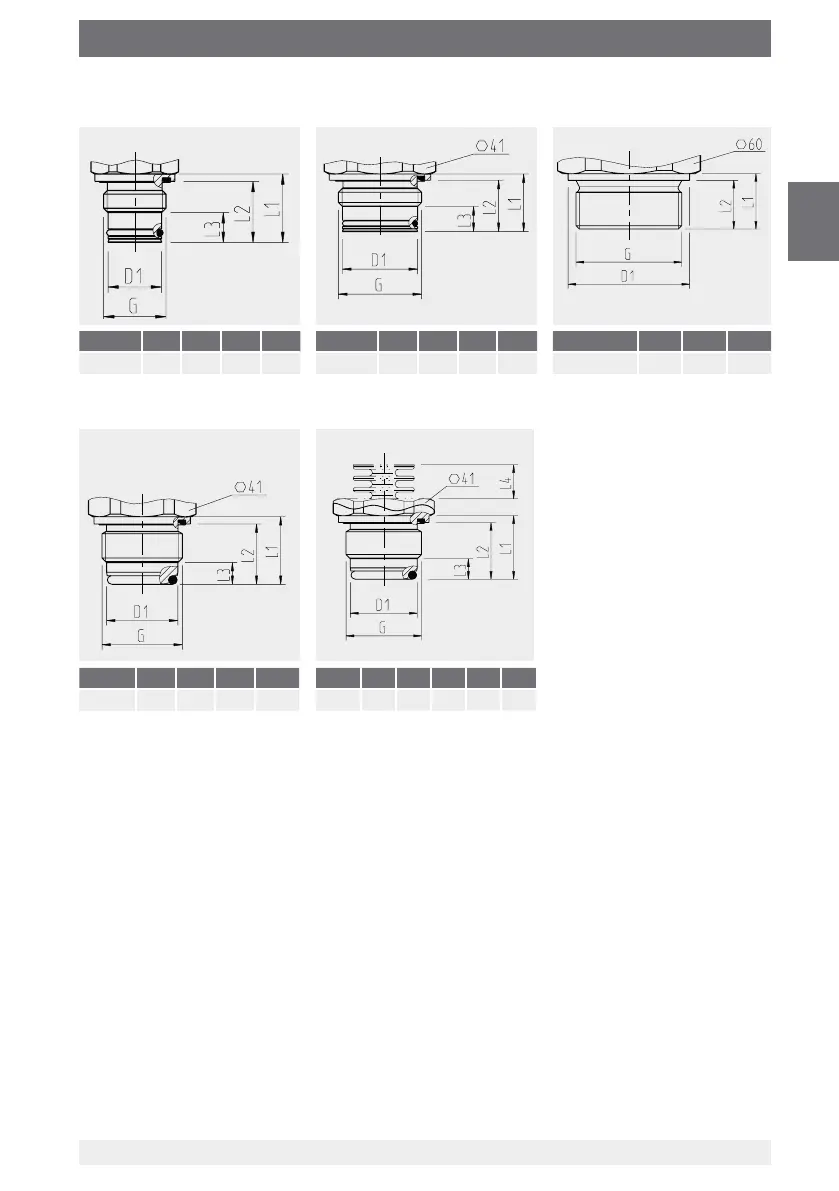

Process connections for model UPT-21
G L1 L2 L3 D1
G ½ B 23 20.5 10 18
Hexagon dimension: 12 mm
Spanner width: 27 mm
G L1 L2 L3 D1
G 1 B 23 20.5 10 30
Hexagon dimension: 13 mm
G L1 L2 D1
G 1 ½ B 25 22 55
Hexagon dimension: 14 mm
G L1 L2 L3 D1
G 1 B 28 25 9 29.5
Hexagon dimension: 13 mm
G L1 L2 L3 L4 D1
G 1 B 28 25 9 15.5 29.5
Hexagon dimension: 13 mm
