Assembly TPM
+
en-16 4022-D018396 Revision: 07
5.3 Components mounted on the output side
The prescribed screw sizes and tightening torques for the output flange can be found in
Chapter 9.2 "Specifications on mounting on the gear output side", Tables "Tbl-13", "Tbl-14"
and "Tbl-15".
Coat the fastening screws with a threadlocker
(e.g. Loctite
®
243).

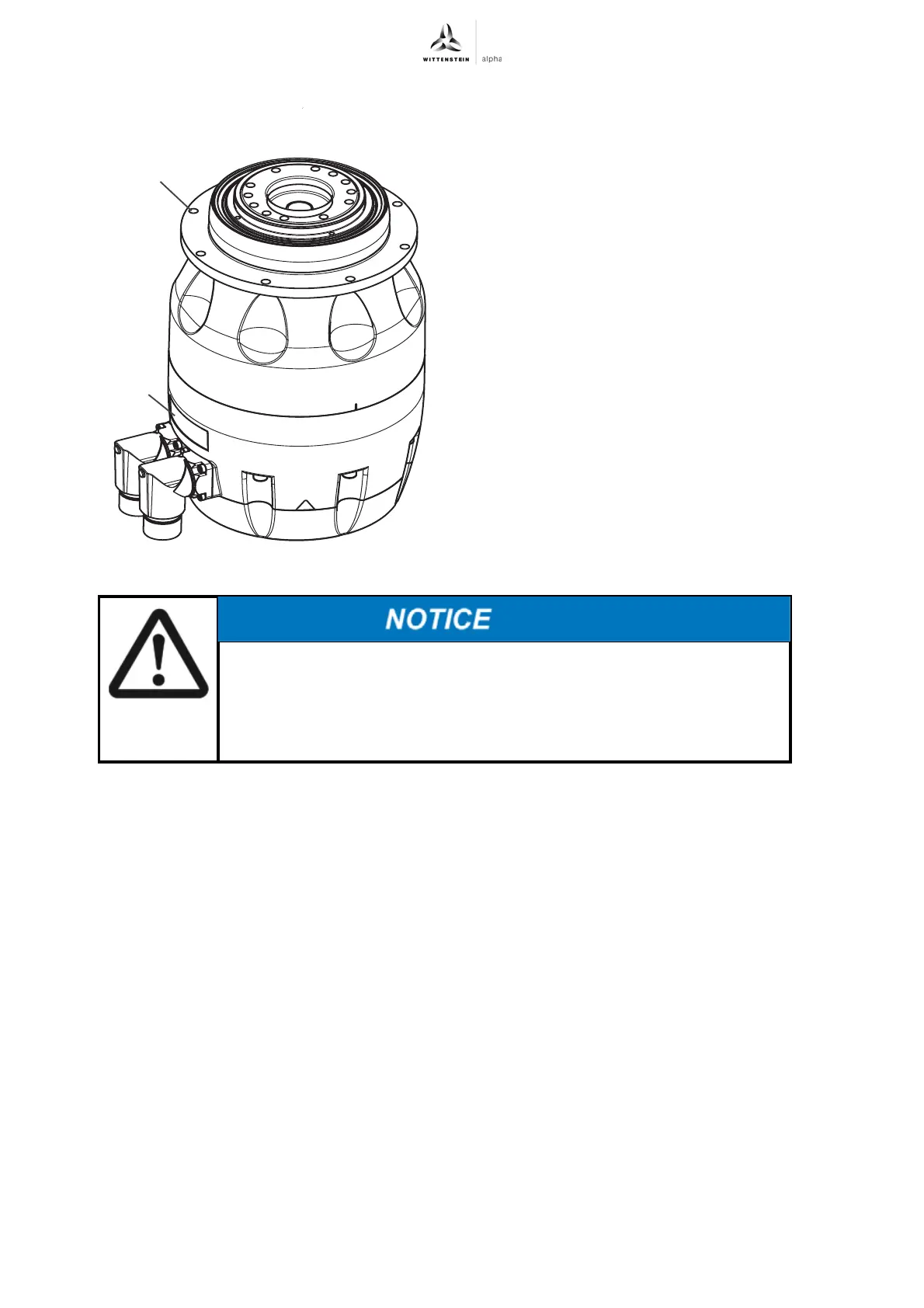

Fasten the servo actuator to the machine with
the fastening screws through the through-
holes (A).
Mount the servo actuator in such a way that
the type plate (B) remains legible.
Do not use washers (e.g. plain washers,
tooth lock washers).
For specified screw sizes and tightening
torques, see Chapter 9.1 "Specifications on
mounting onto a machine", Tables "Tbl-11"
and "Tbl-12".
Distortions during assembly can damage the servo actuator.
Mount gearwheels and toothed belt pulleys onto the output flange
without forcing.
Never attempt to assemble by force or hammering!
Only use suitable tools and devices for assembly.
