Appendix TPM
+
en-48 4022-D018396 Revision: 07
Option “R” —signal (pin assignment 4)

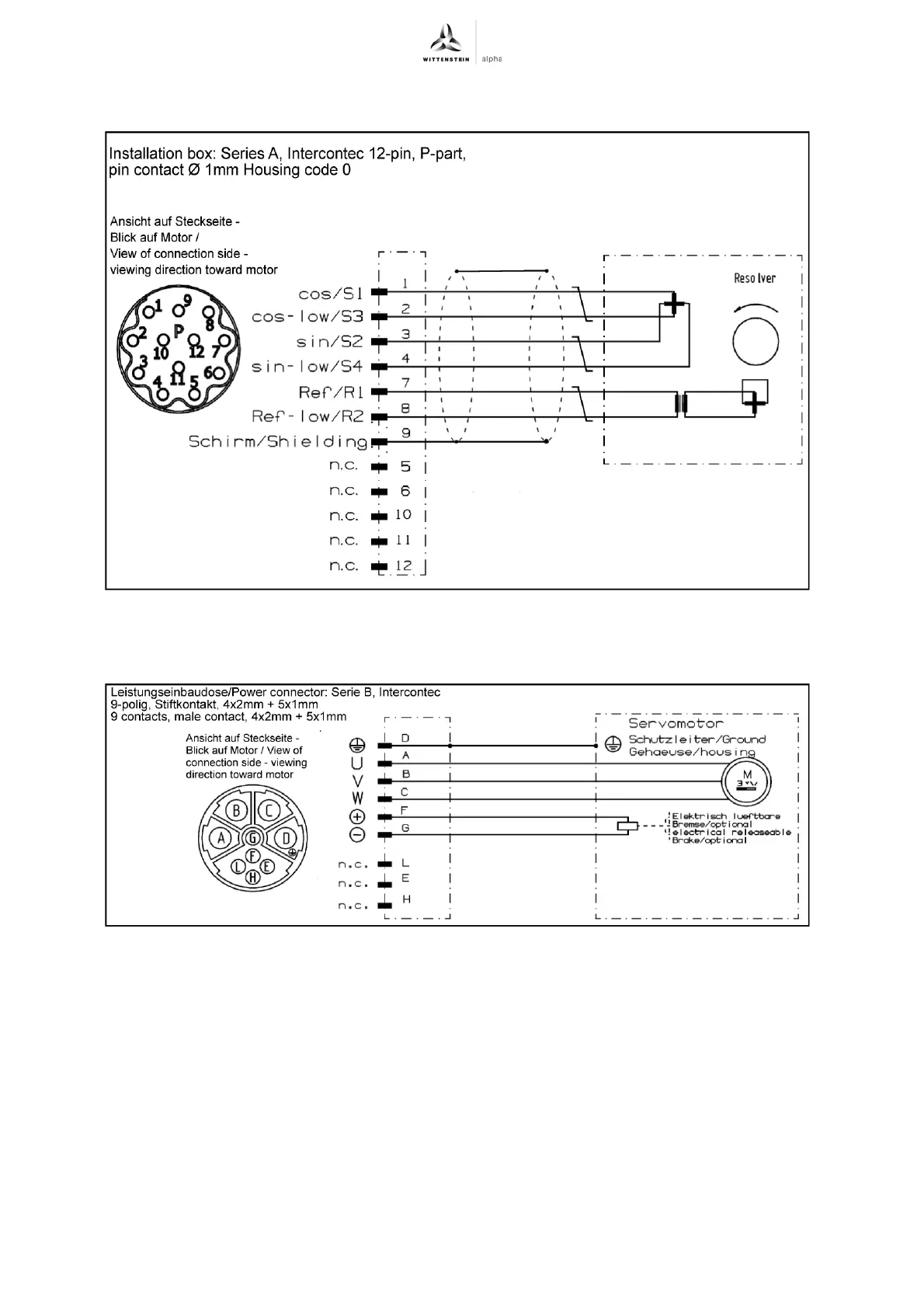

9.4.26 Pin assignment 5 TPM
+
dynamic
Design with optical encoder —output (pin assignment 5)
