9.4.27 Pin assignment 6

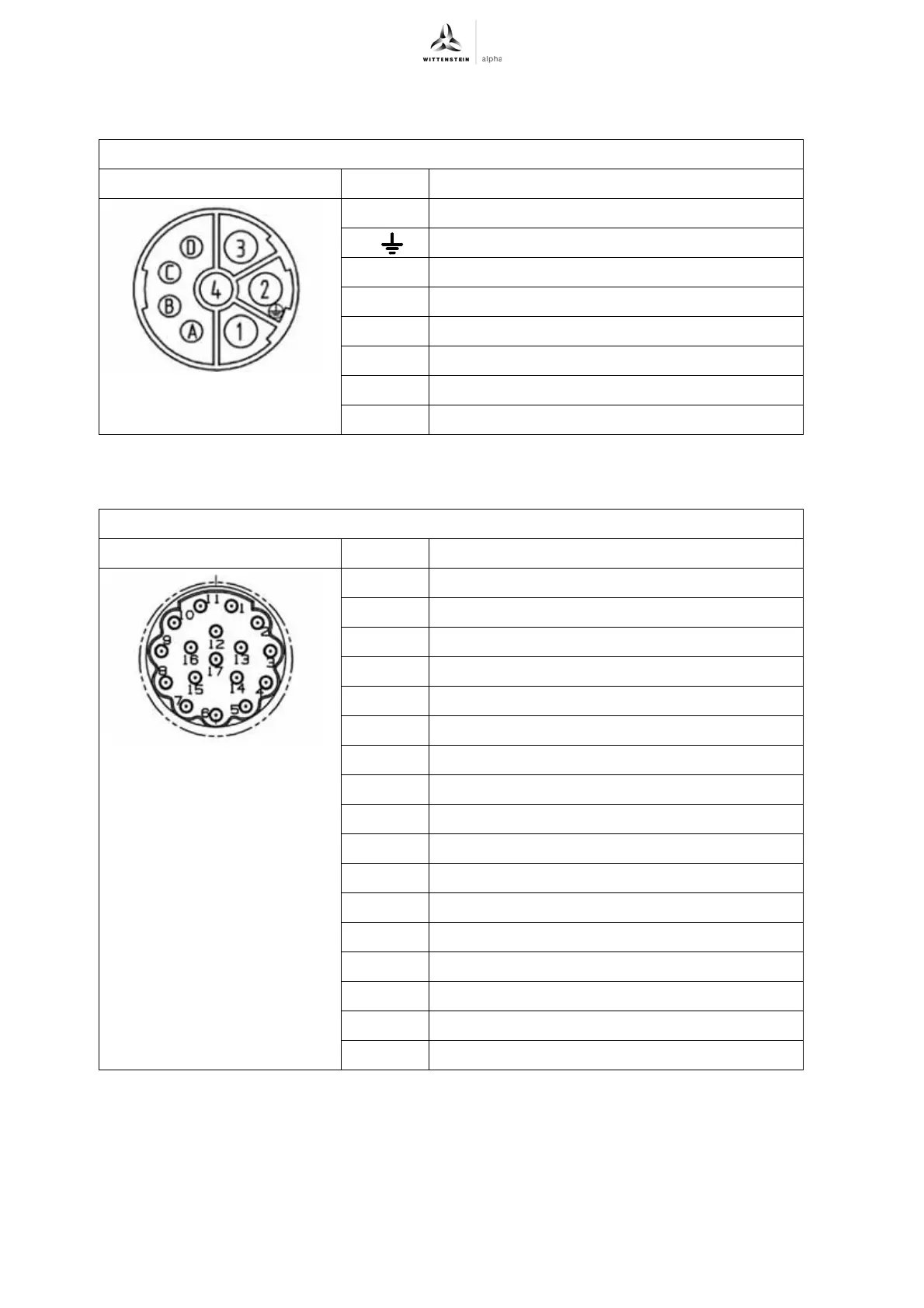

Design with optical encoder — output (pin assignment 6)
Option "S" and "M" — signal (pin assignment 6)
Intercontec mounting socket, series production 923, 8-pin E, contact pin 4x2mm + 4x1mm
View of plug side of actuator Pin Function
1U
2 ( ) Earth conductor
3W
4V
A Temp +
B Temp -
C Brake + (optional)
D Brake - (optional)
Tbl-40: Design with optical encoder — output (pin assignment 6)
Intercontec mounting socket, series production 623, 17-pin E, contact pin Ø 1mm
View of plug side of actuator Pin Function
1 5V Sense
2n.c.
3n.c.
4 0V Sense
5n.c.
6n.c.
7 P-encoder / +5V
8clock
9*clock
10 M-encoder / 0V
11 n.c.
12 Ua2
13 *Ua2
14 data
15 Ua1
16 *Ua1
17 *data
Tbl-41: Option "S" and "M" — signal (pin assignment 6)
