Appendix TPM
+
en-42 4022-D018396 Revision: 07
9.4.23 Technical specifications brake TPM
+
power
The listed opening and closing times are noted without the use of an additional wiring of the brake.
To avoid interfering signals from the switching of the brake, in general an additional wiring, e.g.
in form of a varistor, should be added. Observe the requirements for this of the applied servo
controller manufacturer.

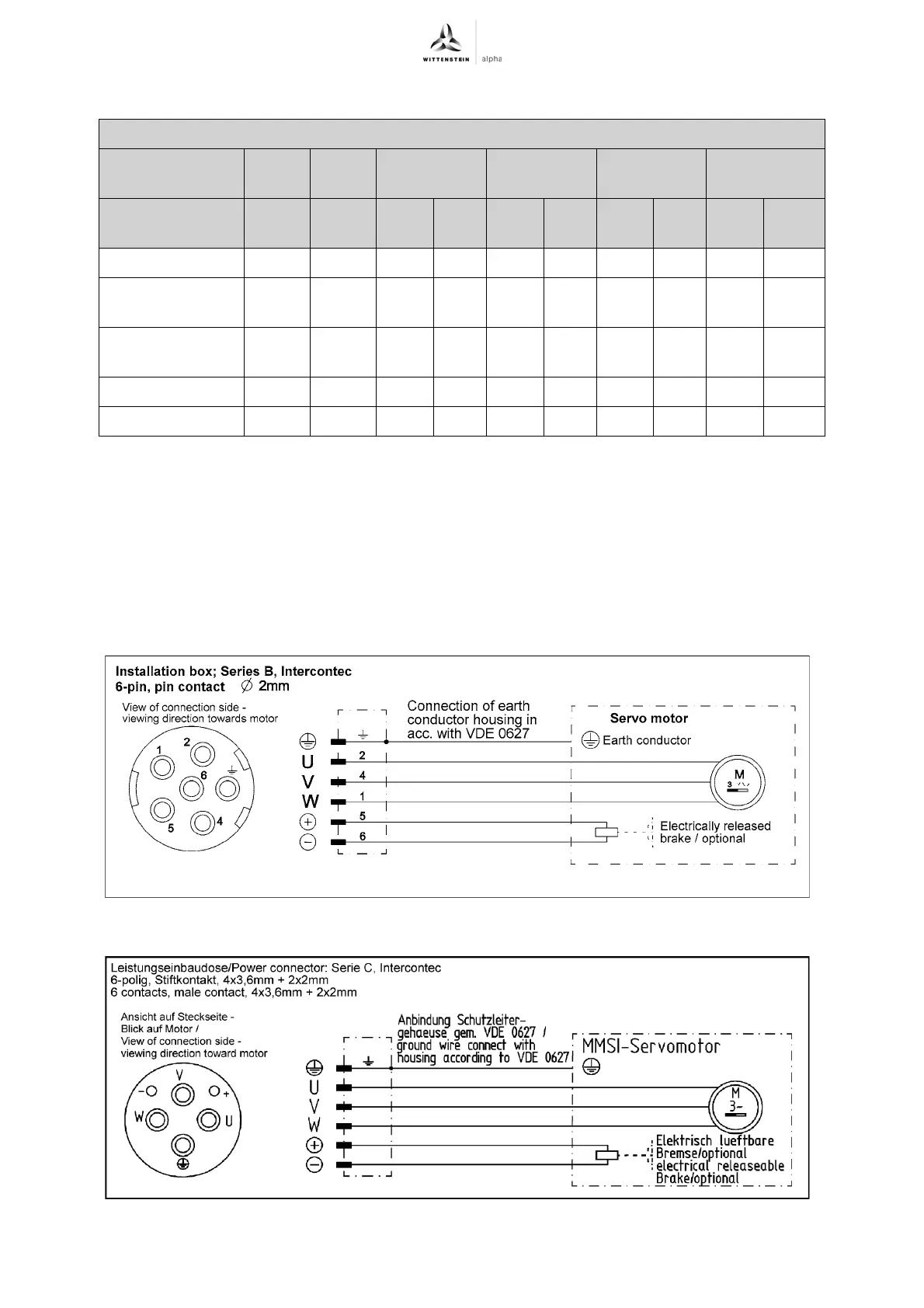

9.4.24 Pin assignment 1
Design with resolver —output size 1 (pin assignment 1)
Design with resolver and optical encoder —output size 1.5 (pin assignment 1)
Ordering code: TPMPxxxx-xxxx-xxBx-xxxx-xx-xxx
Unit TPM
+
004
TPM
+
010 TPM
+
025 TPM
+
050 TPM
+
110
Ratio i 4 –70 100 4 –70 100 4 –70 100 4 –50 70 –
100
Voltage V DC 24 24 24 24 24 24 24 24 24
Power
consumption
A DC 0.42 0.58 0.46 0.71 0.71 1 1 1.67 1.67
Holding torque
at 120 C
Nm 1.1 4.5 1.8 13 6 23 11 72 25
Opening time msec 11 30 30 42 42 50 50 200 140
Closing time msec 10 20 25 20 20 40 50 50 90
Tbl-39: Technical specifications brake TPM
+
power
