Wittenstein TPM dynamic - 27 Pin Assignment 6

TPM
+
Appendix
Revision: 07 4022-D018396 en-49

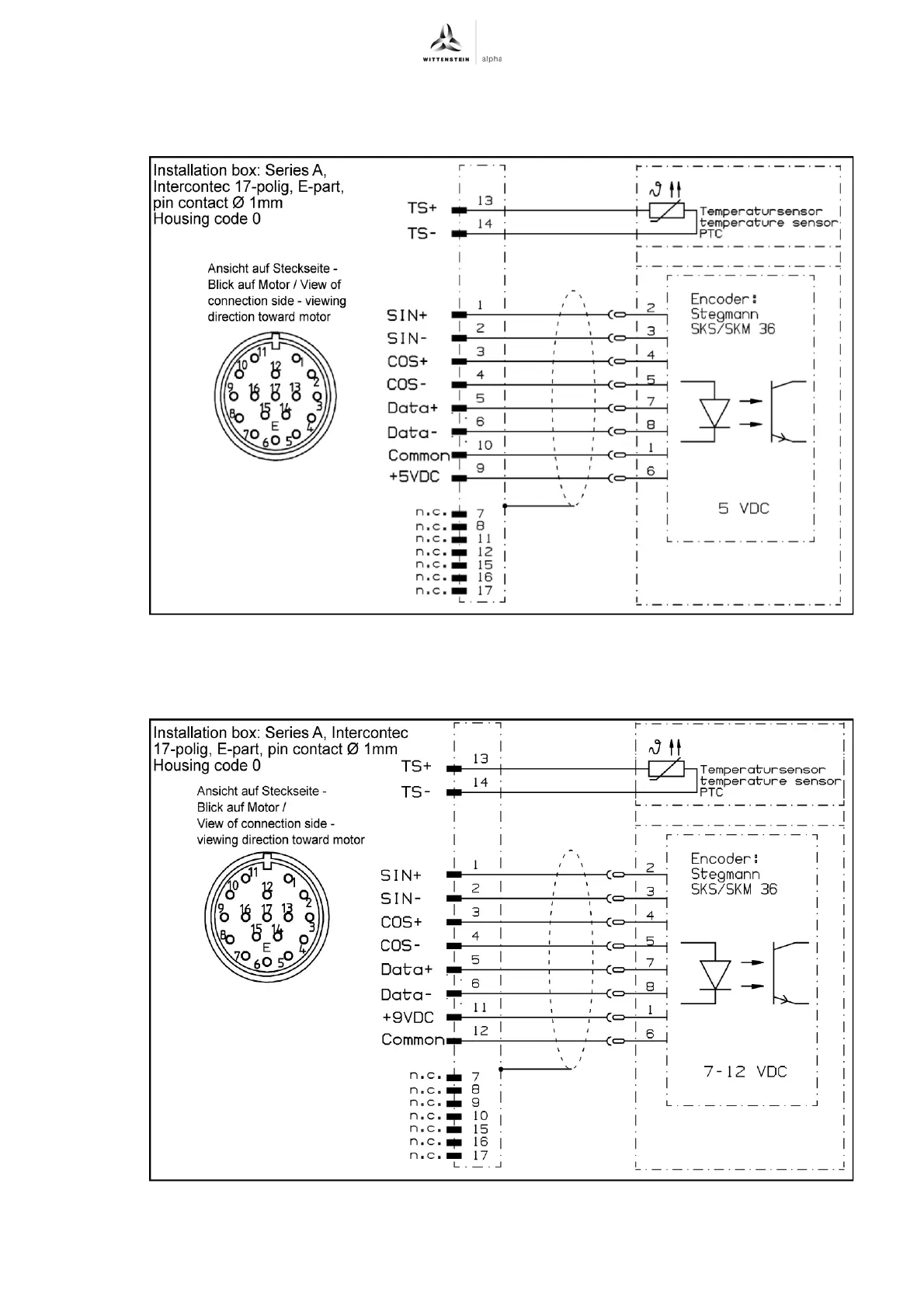

Option “E” and “V” with 320 V intermediate voltage —signal (pin assignment 5)
With TPM
+
dynamic product size 004, 010 and 025 with 320V intermediate voltage
Option “E” and “V” with 560 V intermediate voltage —signal (pin assignment 5)
With TPM
+
dynamic product size 050 with 320V and all product sizes with 560V intermediate
voltages
