2-12
Installation InformationCT Hoods and DD Ventilation
INTERNAL BLOWER INSTALLATION
NOTE: Before turning the power on, make
sure blower control is in the “OFF” posi-
tion. Use wire connectors or wire nuts
approved by UL or C/UL. Refer to installa-
tion instructions provided with each blower
to verify wall or roof cut-outs.
NOTE: Blower options vary with the cook-
ing surface. Use only a Wolf blower with
the cooktop ventilation hood.
NOTE: For mounting and installation of
the internal blower, refer to the specifi c
installation instructions provided with each
blower.
Remove the hood fi lters.1.
Lift the blower into position inside 2.
the hood, the threaded studs on the
blower will slide through the slots pro-
vided in the upper panel.
Use four hex nuts provided with 3.
the blower to fasten the unit to four
threaded studs. (See Figure 2-21)
Plug the blowers’ single power cord 4.
(double for some blowers) into the
receptacle(s) inside the hood. Use the
clip on the hood to keep excess power
cord away from moving parts.
Reinstall the hood fi lters.5.
NOTE: Before turning the power on, make
sure the blower control is in the OFF posi-
tion.
INTERNAL BLOWER INSTALLATION
TO REDUCE THE RISK OF
ELECTRICAL SHOCK, POWER
SHOULD BE TURNED OFF TO
UNIT BEFORE ATTEMPTING THE
FOLLOWING PROCEDURE.

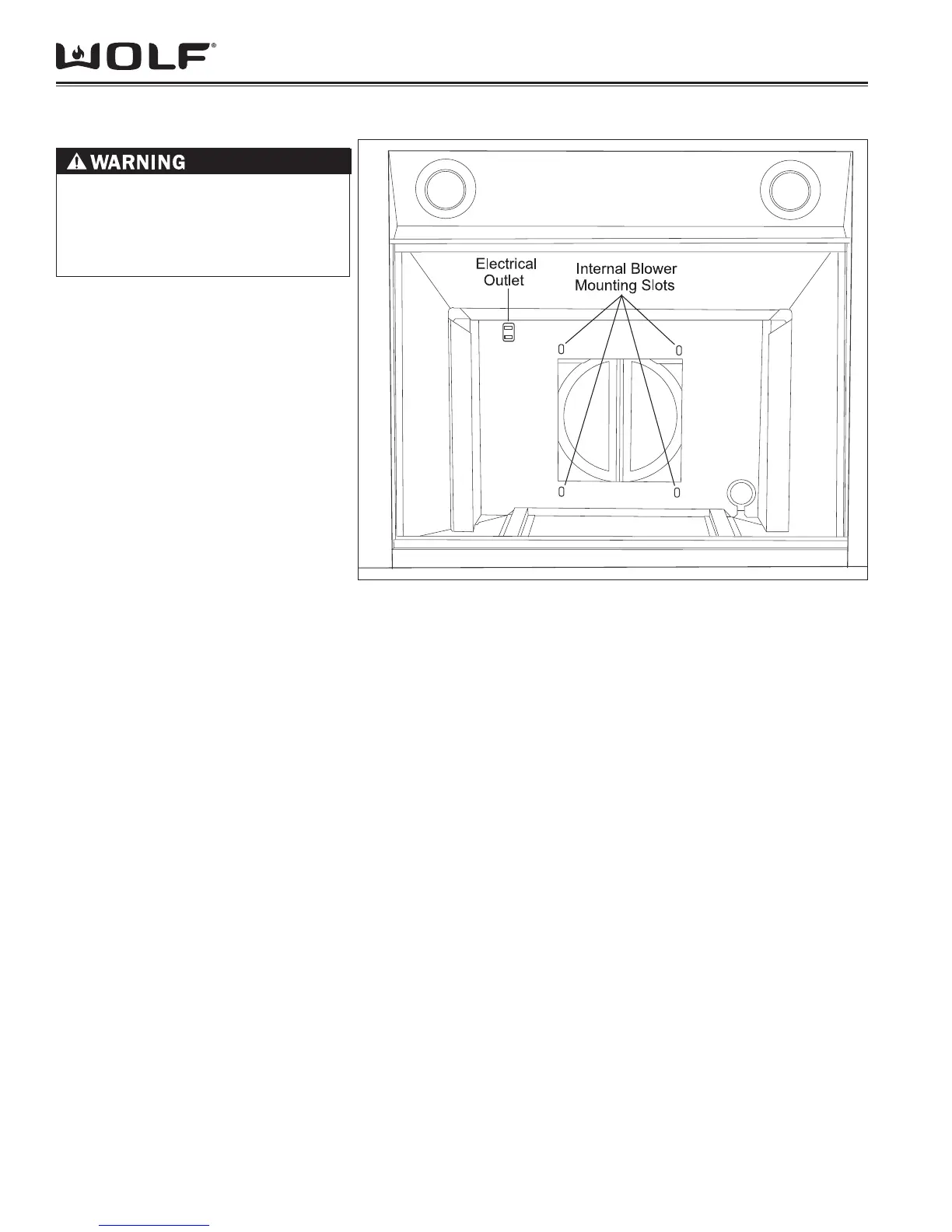

Figure 2-21 Internal Blower Install
