2-19
Installation Information CT Hoods and DD Ventilation
WIRING
NOTE: The ventilation hood must be properly ground-
ed. It should be installed by a qualifi ed electrician in ac-
cordance with all applicable national and local electrical
codes.
Run supply conductors to the hood wiring box 1.
marked “120 VAC input”.
Remove the cover from the wiring box and remove 2.
one knockout as shown in Figure 38.
Secure the conduit to the wiring box through a 3.
conduit connector.
Make electrical connections at the hood. Connect 4.
white-to-white, black-to-black and green-to-ground.
Replace the wiring box cover and screws. Make 5.
sure wires are not pinched between the cover and
box.
F
INAL STEP
Remove the adhesive tape and slide the lower fl ue
downward, placing it gently onto the hood base. Instal-
lation is now complete and the grease fi lters can be
installed.
3.9 x 9.5mm
C
3.9 x 9.5mm

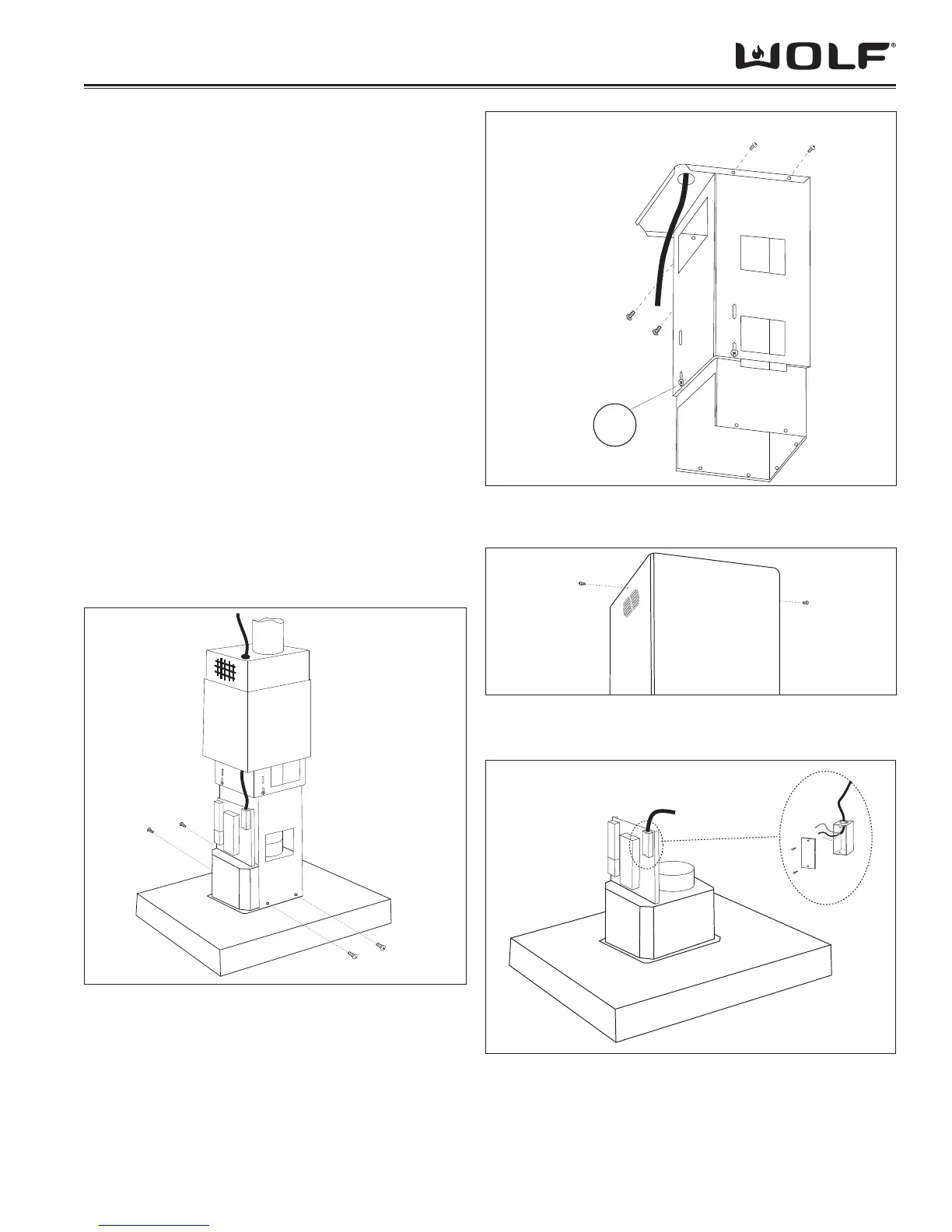

Figure 2-35 CTE Island Hood Telescopic Flue Mounting
Figure 2-38 CTE Island Hood Electric Hookup
Figure 2-36 CTE Island Hood Upper Flue Mounting
BOX MARKED
120 VAC INPUT
Figure 2-37 CTE Island Hood to Telescopic Flue
