Troubleshooting Guide
Fuse Terminal Extension Stud
Troubleshooting Guide 60HDdoc081208 6-17
6
6.10 Fuse Terminal Extension Stud
A fuse terminal extension stud is provided in the fuse box. The extension may be used to
temporarily connect a battery charger or jumper cables to raise the saw head from the
towing position so the battery box lid can be removed.
CAUTION! The fuse stud extension is designed to provide
enough power to raise the saw head only. Do not attempt to
start the engine or operate any other electrical function until
direct battery charging can be performed. Do not attempt to
move the saw head by attaching jumper cables from a sec-
ondary power source to the up/down motor terminals. Dam-
age to the electrical system will result.
See Figure 6-4.
1. Remove the fuse box cover and remove the stud from its storage position inside the fuse
box.
2. Thread the extension stud on the bottom-right fuse terminal.
3. Attach the positive cable from a battery charger or jumper cables to the extension stud.

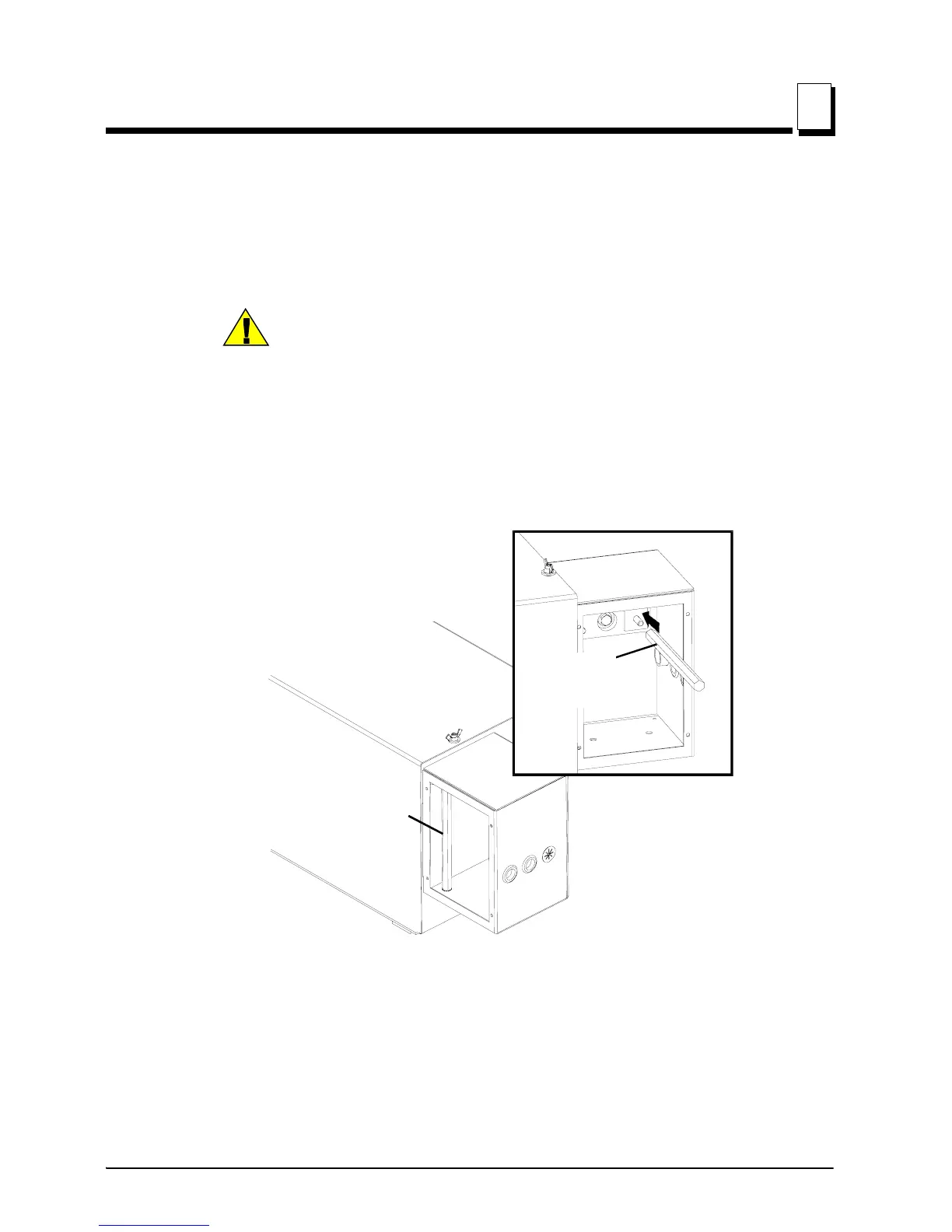

FIG. 6-4
Place stud on
bottom right
fuse terminal
3H0417
Extension stud
storage location
