Sawmill Alignment
Vertical Adjustment of Side Supports
7
7-15 60HDdoc081208 Sawmill Alignment
7.3 Vertical Adjustment of Side Supports
1. Place a flat board across the bed rails.
2. Swing a side support up so that it is vertical.
3. Pull back at the top of the support to eliminate slack as if a log were being clamped
against it.
See Figure 7-14.
4. Check the angle of each support with a square on the board.
5. The side support should be 90° to the bed rails. Loosen the top adjustment bolt, adjust
the side support, and retighten the bolt.
6. Repeat for the remaining side supports.

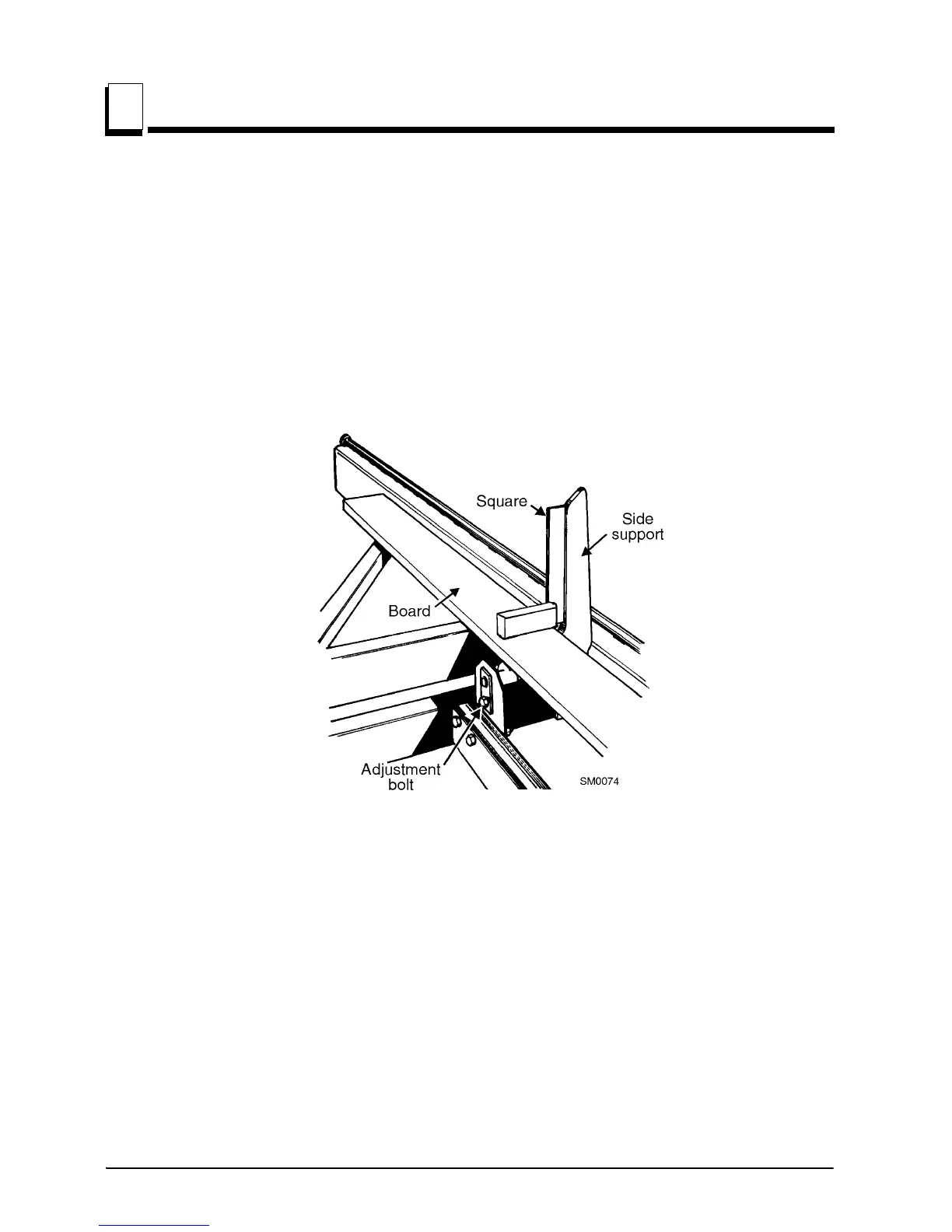

FIG. 7-14
