Sawmill Alignment
Routine Alignment Procedure
7
7-3 60HDdoc081208 Sawmill Alignment
See Figure 7-2. To adjust the saw head tilt, use the bolts located at the bottom of the saw
head mast. Loosen the three sets of four retaining plate bolts. To raise the outside of the
saw head, back the stop bolts out, then tighten the adjustment bolts. To lower the outside
of the saw head, loosen the adjustment bolts and tighten the stop bolts. Recheck the
measurement from the blade to the bed rails and adjust the stop bolts and adjustment
bolts until the outside of the saw head is 1/26" (1mm) higher than the inside. Retighten
the retaining plate bolts.

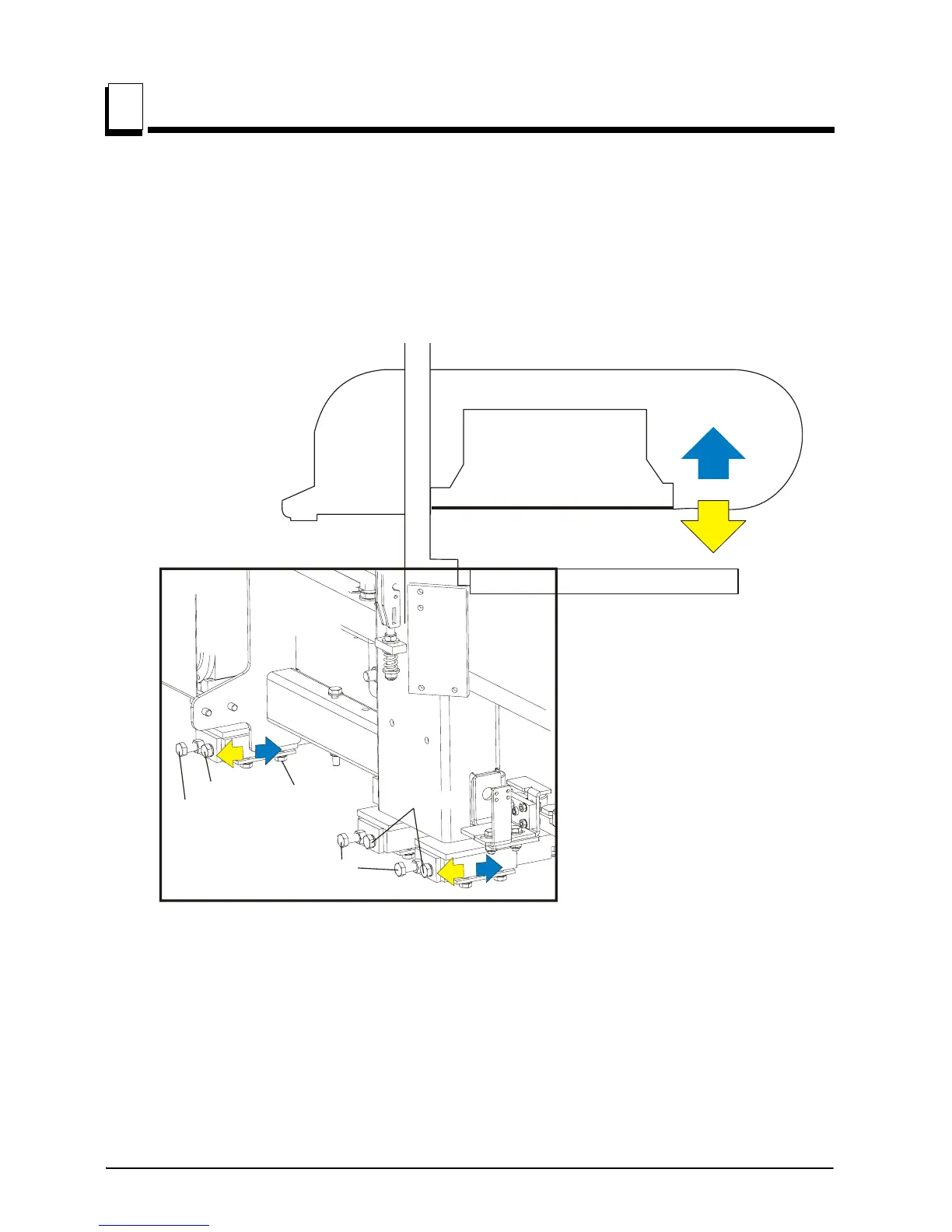

FIG. 7-2
600011-4a
Stop Bolt
DETAIL OF LOWER TRACK ROLLER ASSEMBLY
Stop Bolt
Adjustment Bolt
Retaining
Plate Bolts
Tighten adjustment
bolts to raise saw head;
Loosen adjustment
bolts to lower saw head
Adjustment Bolt
