Sawmill Alignment
Complete Alignment Procedure
7
7-21 60HDdoc081208 Sawmill Alignment
See Figure 7-18. Use the vertical adjustment screws to adjust the idle-side blade wheel.
To tilt the wheel up, loosen the bottom adjustment screw one quarter turn. Loosen the jam
nut on the top adjustment screw and tighten the screw. Tighten the top and bottom jam
nuts.
To tilt the wheel down, loosen the top adjustment screw one quarter turn. Loosen the jam
nut on the bottom adjustment screw and tighten the screw. Tighten the top and bottom
jam nuts.
8. Recheck the vertical tilt of the idle-side blade wheel with the blade guide alignment tool.
Readjust the blade wheel as necessary until the front and rear of the tool are the same
distance from the bed rail (within 1/16" [1.5 mm]).

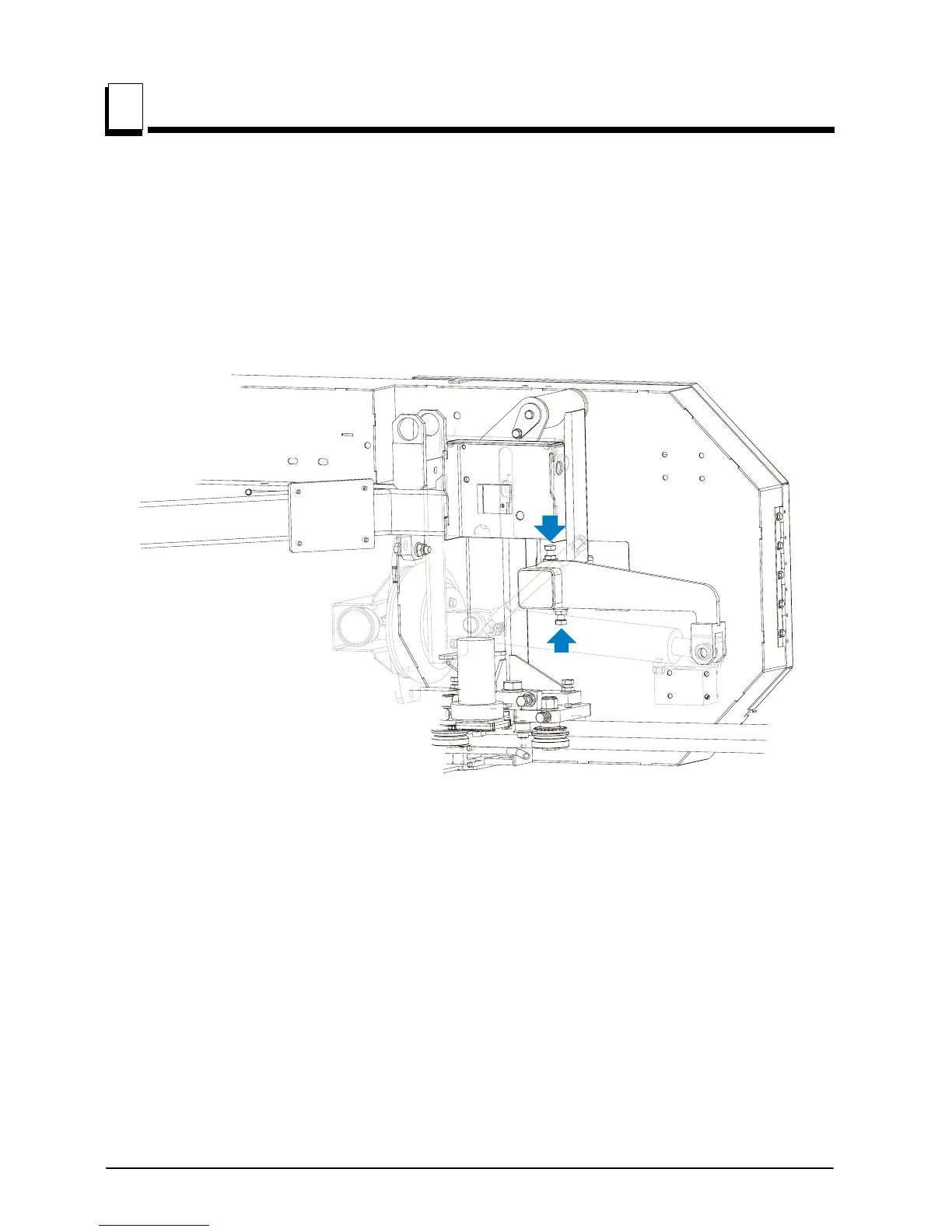

FIG. 7-18
600025-5C
Adjust vertical adjustment
screws up to tilt idle-side
blade wheel down; Adjust
