Maintenance
Brake Adjustment
Maintenance 60HDdoc081208 5-10
5

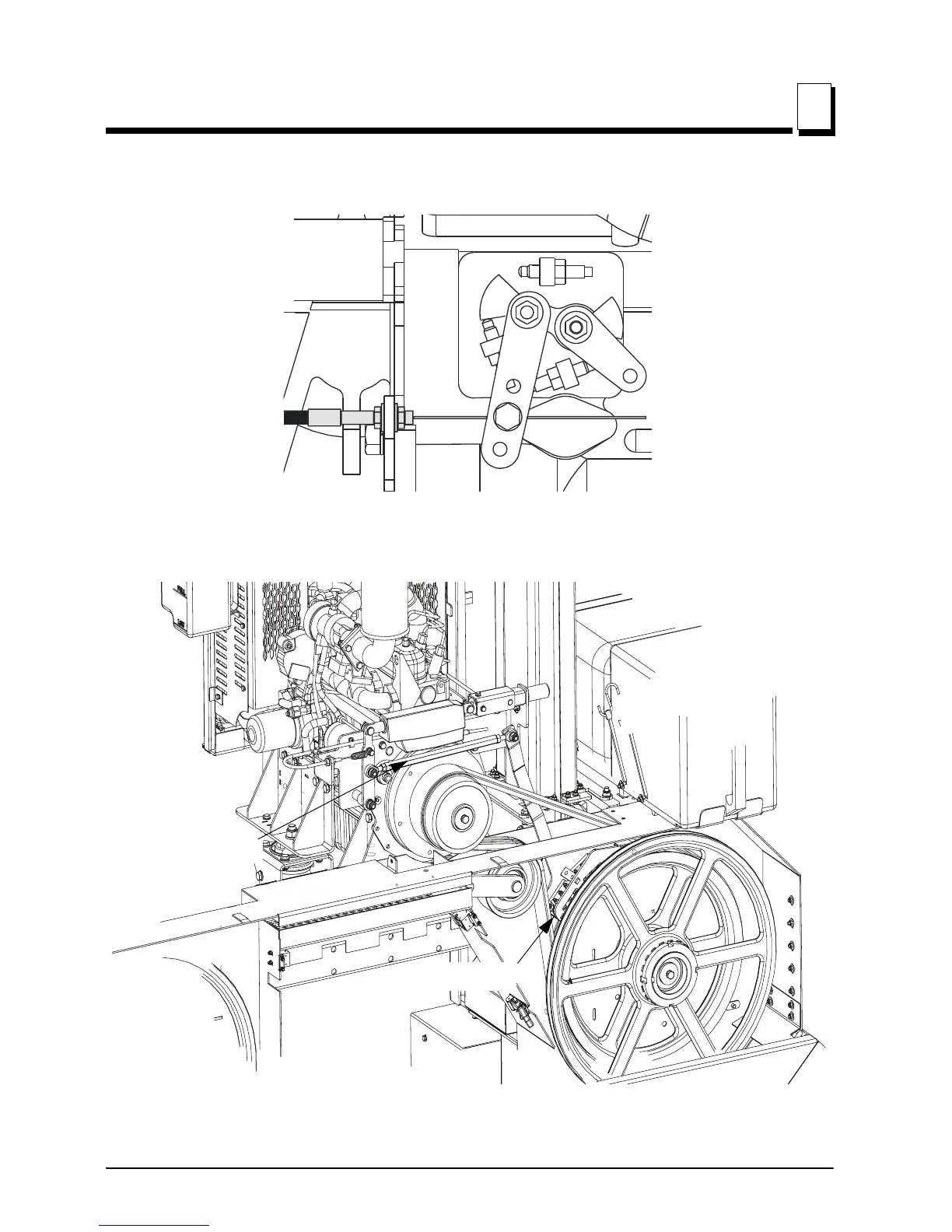

2. The throttle cable mounting bolt should be placed in the middle hole of the acceleration
lever located on the engine.
3. Adjust the brake using turnbuckle so that, the braking time is about 5 seconds and the
brake blocks are not touching the blade wheel with the linear actuator fully closed (mini-
mum actuator length).
4. With the actuator fully opened (maximum actuator length) during braking, the spring sup-
porting the actuator should be deflected as well as the spring guard along with the actua-
3H074
