Woods 208-2 - Splined Telescopic Installation - Pull-Type

32 Assembly
32394 (Rev. 9/3/2004)

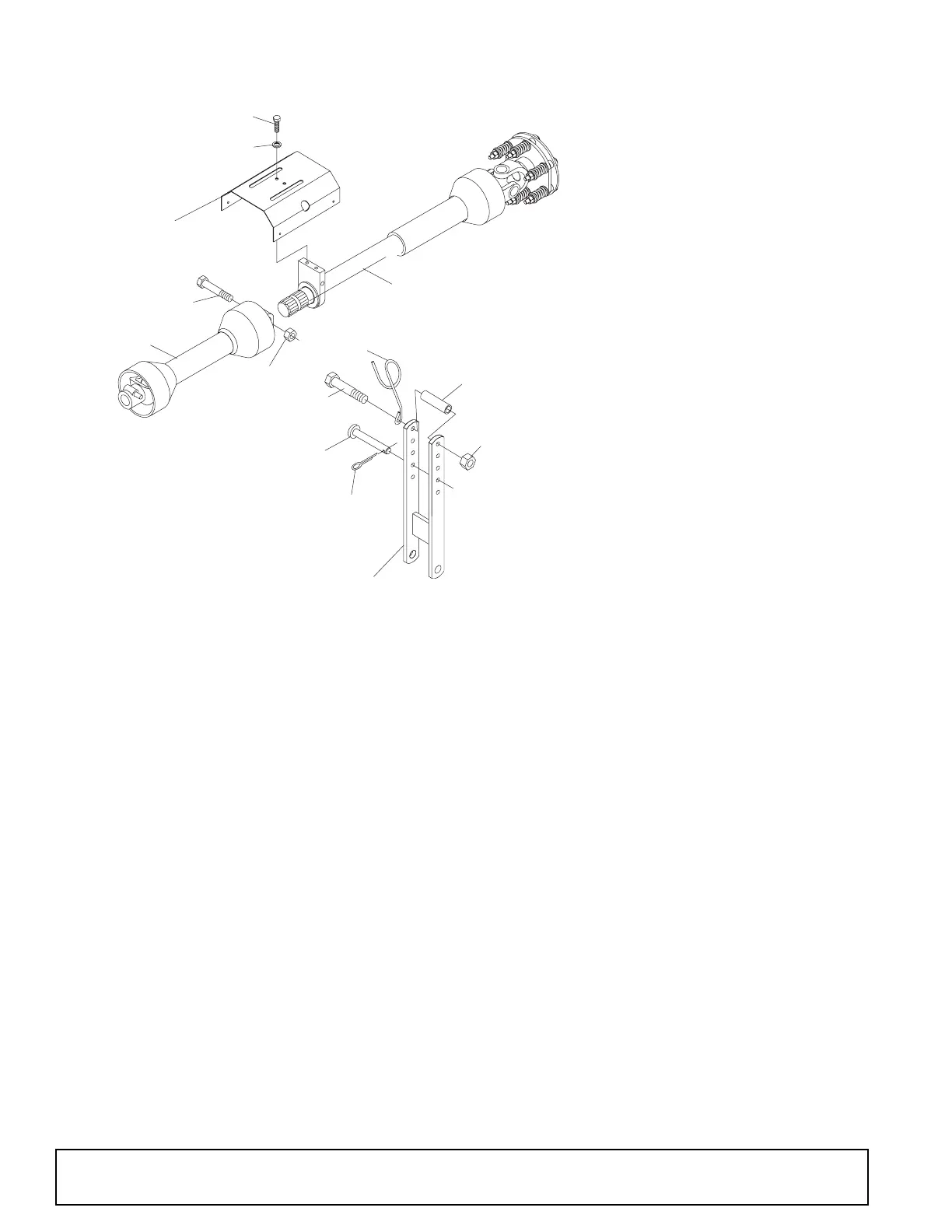

Figure 24. Splined Telescopic Installation - Pull-Type
11
12
17
5
4
16
13
2
10
14
15
3
15
1
CD5207
1. H-Frame
2. Hydraulic hose holder
3. Front 2/3 of 3-joint drive
4. Upper drive shield
5. Rear 1/3 of 3-joint
10. 3/16 x 1” Cotter pin
11. 3/8 x 1” Bolt
12. 3/8” Lockwasher
13. 1/2 x 5-1/2” Bolt
14. 1/2 x 5-3/4” Clevis pin
15. 1/2” Hex locknut
16. 1/2 x 3-9/16” Spacer
17. 1/2 x 2” Hex head cap screw GR8
