Woods 208-2 - 208-2 & M208-2 Crossbar Puller (Optional) (Pull-Type & Mounted); 208-2 & M208-2 Adjustable Skid (Optional) (Pull-Type & Mounted)

66 Parts
32394 (Rev. 9/3/2004)

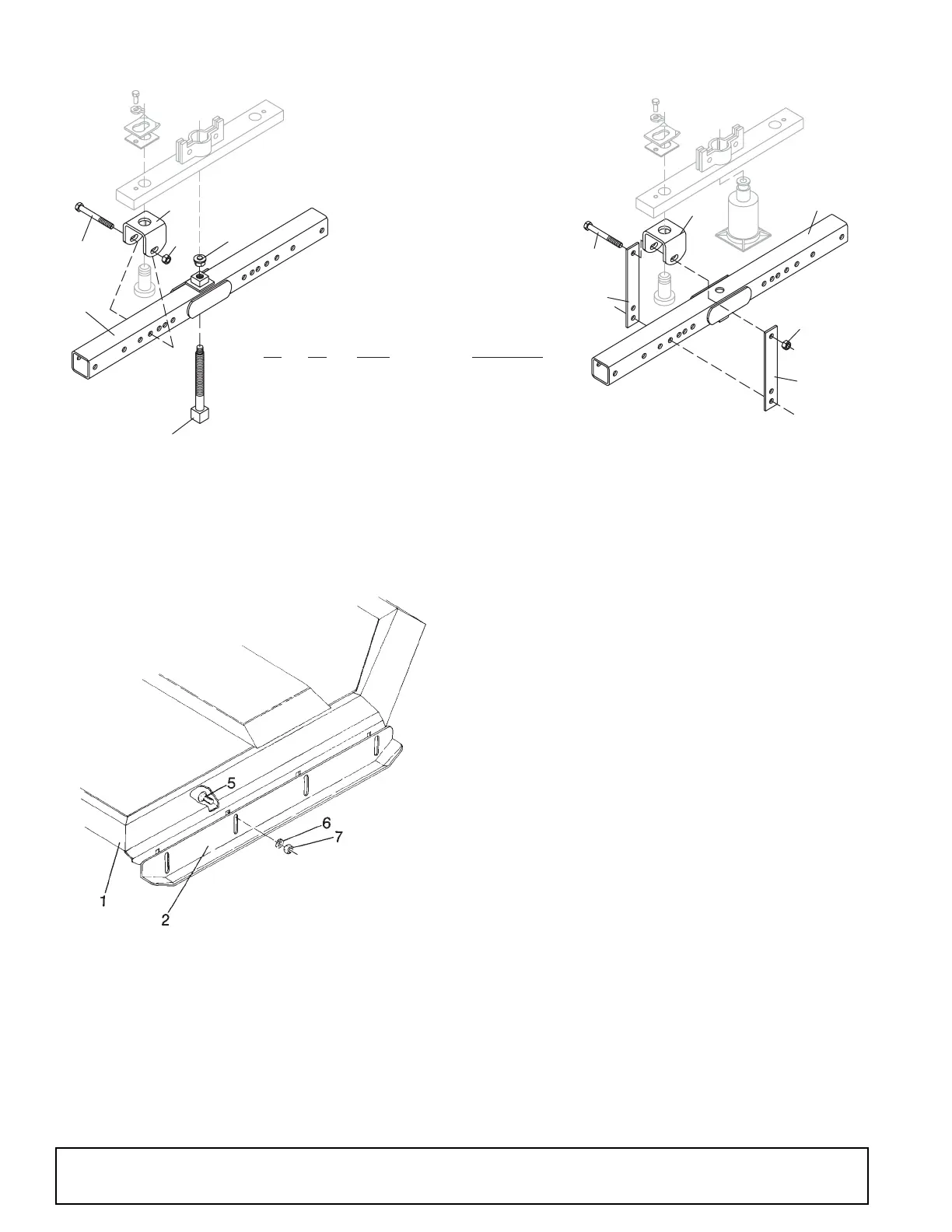

208-2 & M208-2 CROSSBAR PULLER (OPTIONAL) (PULL-TYPE & MOUNTED)
208-2 & M208-2 ADJUSTABLE SKID (OPTIONAL) (PULL-TYPE & MOUNTED)
7
7
5
3
1
2
5
6
4
3
1
2
CD1249A
Ref Part No
No
No Used Description
A 8811 1 Crossbar puller complete
1 19914 2 Crossbar puller clevis
2 3097 4 5/8 NC x 4-1/2 Hex head
cap screw GR5
3 230 * 4 5/8 NC Hex nut
4 24879 1 Pad assembly
5 24876 1 Tube assembly
6 24881 1 Screw assembly
7 24885 4 Crossbar puller link
*Obtain Locally
DB2150
REF PART QTY DESCRIPTION
1 ----- 1 Frame and gearbox assembly
2 28274 2 Side skid
5 5607 * 8 5/8 NC x 1-1/2 Carriage bolt
6 1286 * 8 5/8 Heavy lockwasher
7 230 * 8 5/8 Heavy hex nut
