Woods 208-2 - M208-2 Slip Clutch Drive - Two-Lobe Shaft

56 Parts
32394 (Rev. 9/3/2004)

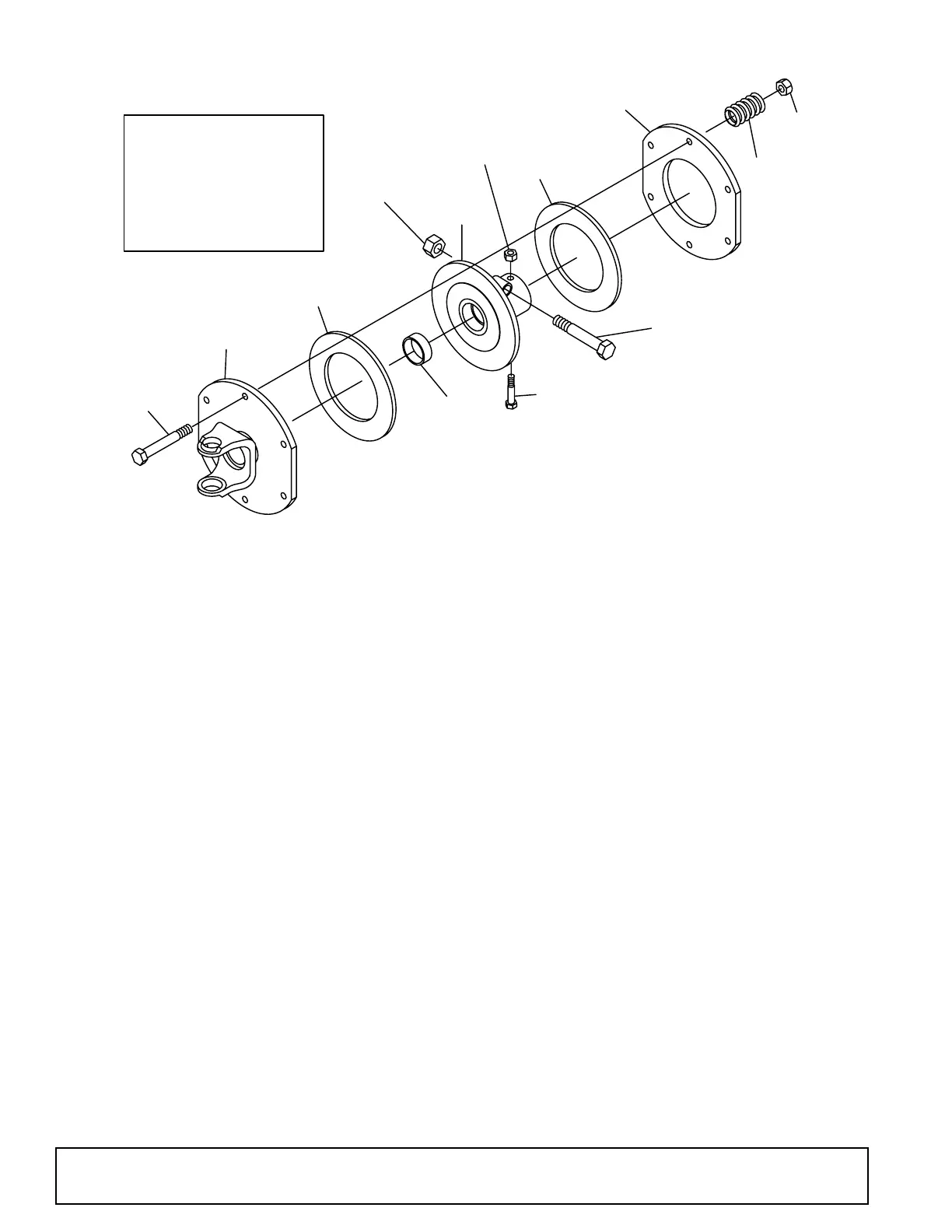

M208-2 SLIP CLUTCH DRIVE - TWO-LOBE SHAFT
10
9
11
4
8
6
5
12
3
2
2
1
7
NOTE: Four Styles o f
driveshafts have been used on
the 208 series cutters. Check
your driveshaft for square,
splined, tri -lobe, or t wo--lobe
shape and order repair parts
from the correct parts list.
REF PART QTY DESCRIPTION
1 45041 1 6 Spring clutch yoke & plate 1340
2 19459 2 4 x 6.15 Friction disc
3 11576 1 1-7/16 x 1-5/8 x 9/16 Bronze bushing
4 53442 1 6 Spring clutch hub 1-1/2 w/ bushing
5 13931 1 6 Spring clutch back-up plate
6 29687 6 Compression spring, 1.15 x .25 x 2.2
7 13927 * 6 3/8 NC x 3-3/4 HHCS GR5
8 12914 6 3/8 NC Wide flange lock nut
9 6048 * 1 7/16 NC x 3-1/2 HHCS GR5
10 13921 * 1 7/16 NC Hex lock nut
11 23141 * 1 5/8 NC x 3-1/2 HHCS GR5
12 6239 * 1 5/8 NC Hex lock nut
* Standard Hardware - Obtain Locally
CD5379
