Parts 57
32394 (Rev. 9/3/2004)

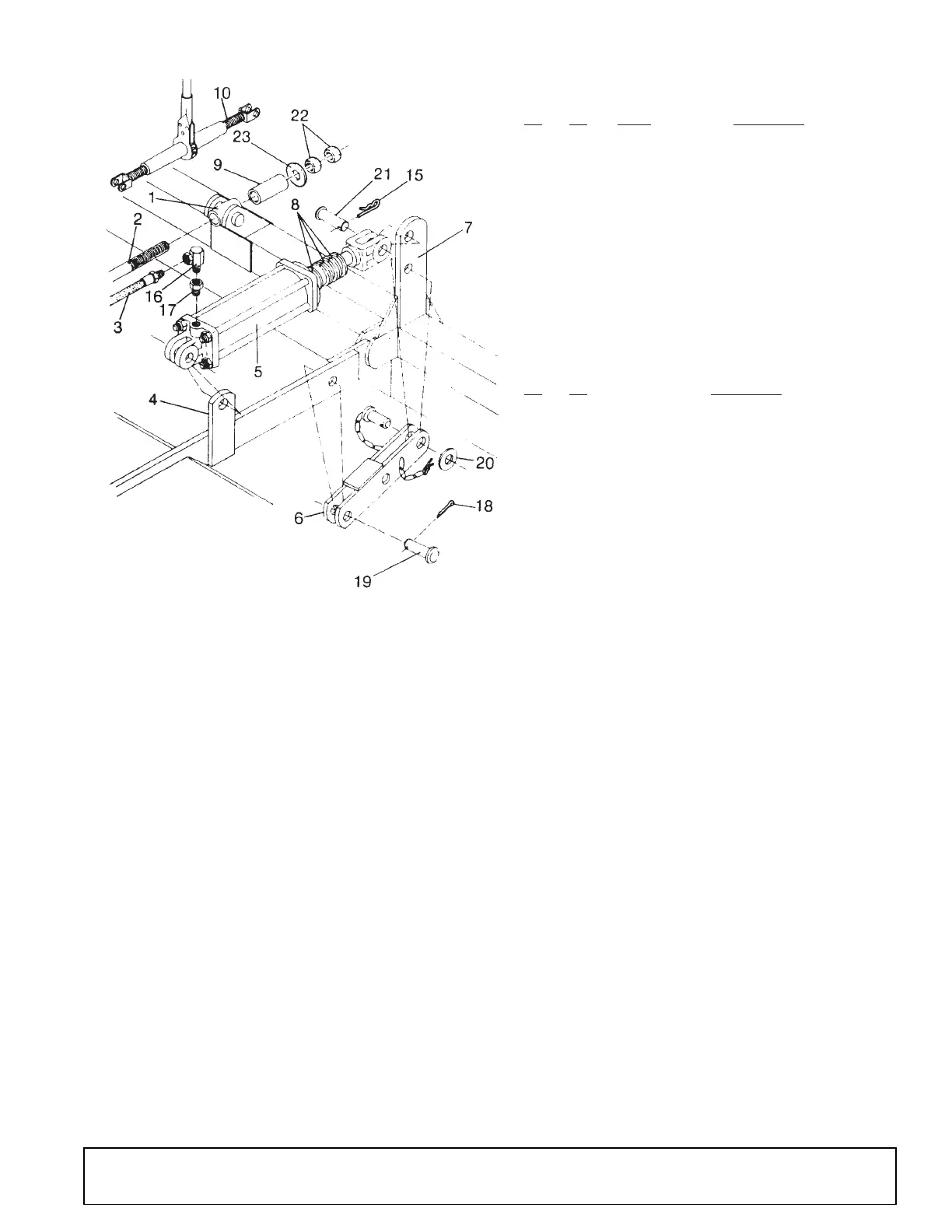

208-2 REAR HEIGHT ADJUSTMENT ASSEMBLY (PULL TYPE)
DB2163B
Ref Part No
No
No Used Description
1 ---------- 1 Attitude pivot block
2 12550 1 Attitude rod assembly
3 8669 1 1/4 NPT x 156” High-pressure hose
assembly
4 ---------- 1 Rear deck attachment lug
5 ---------- 1 3-1/2 x 8 Hydraulic cylinder w/
breather (see pg 46 for breakdown)
6 20380 1 Transport bar (incl.#18-20)
7 ---------- 1 Tailwheel height adjustment post
8 24098 1 1-1/4 Stroke control set
9 27267 1 1” Schedule 40 x 3-3/4 pipe
10 23650 1 Ratchet adjustment link (optional)
HARDWARE
Ref Part
No
No Description
15 18270 * 3/16 Safety pin
16 10290 1/4 x 1/4 90 ° Elbow with 1/16 restrictor
17 11893 * 1/4 x 1/2 Pipe reducer bushing
18 1266 * 3/16 x 1-1/2 Cotter pin
19 20409 7/8 x 3 Clevis pin
20 4258 7/8 Standard flat washer
21 445 1 x 2-1/2 Clevis pin
22 3132 1” NC Hex nut
23 1863 1” SAE Flat washer
* Obtain Locally
