Woods 208-2 - H-Frame & 1-1;2” Square Shaft Installation - Pull-Type

Assembly 33
32394 (Rev. 9/3/2004)

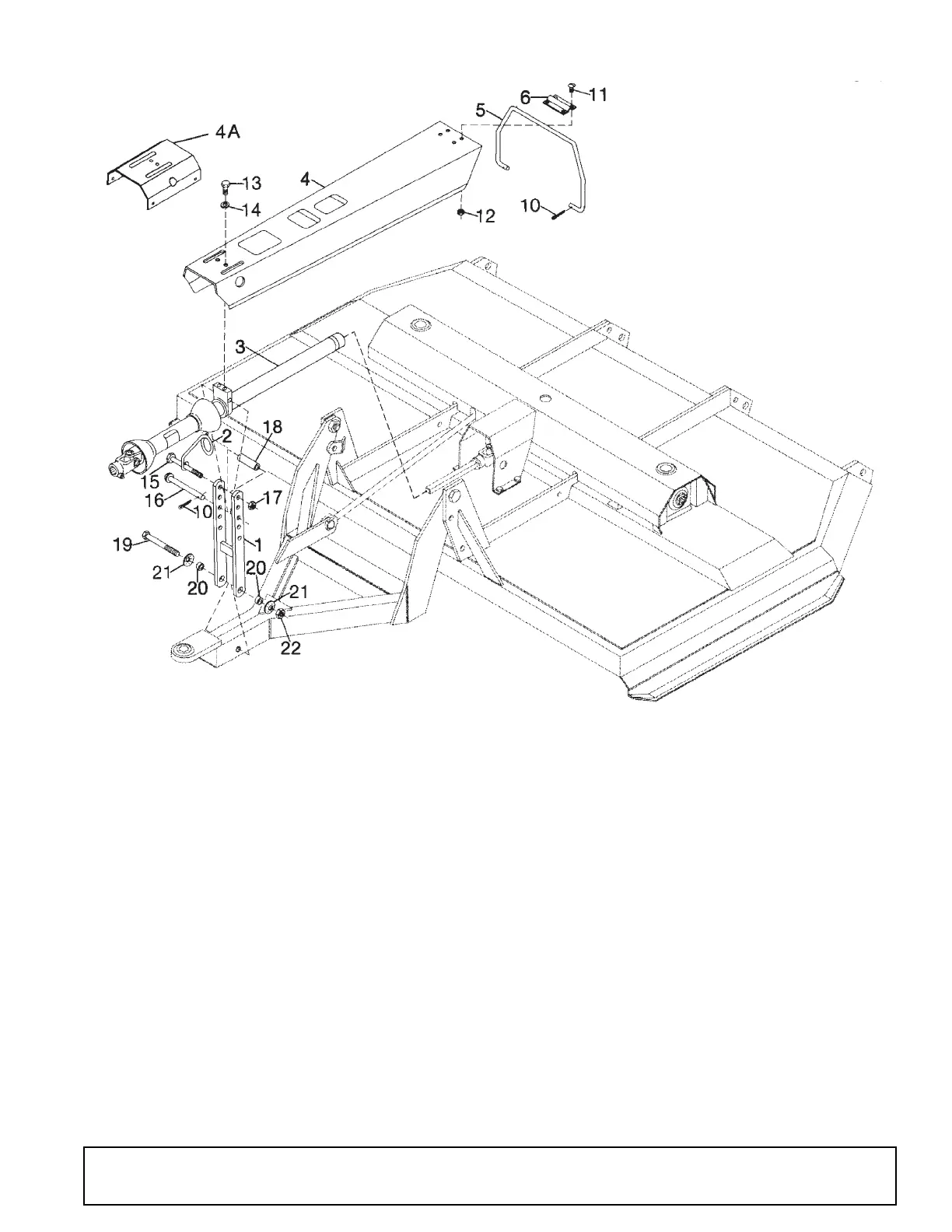

Figure 25. H-Frame & 1-1/2” Square Shaft Installation - Pull-Type
DC2162A
1. H-Frame
2. Hydraulic hose holder
3. Front 2/3 3-joint drive
4. Drive shaft shield
5. Shield support
6. Shield strap
10. 3/16 x 1” Cotter pin
11. 1/4 x 1/2” Stove bolts
12. 1/4” Hex locknut
13. 3/8 x 1” Bolt
14. 3/8” Standard lockwasher
15. 1/2 x 5-1/2” Bolt
16. 1/2 x 5-3/4” Clevis pin
17. 1/2” Hex locknut
18. 1/2 x 3-9/16” Spacer
19. 5/8 x 6” Bolt
20. 41/64 x 1 x 9/16” Spacer
21. Cup washer
22. 5/8” Hex locknut
