Woods 208-2 - M208-2 Tailwheel Assembly (Mounted Units Only)

58 Parts
32394 (Rev. 9/3/2004)

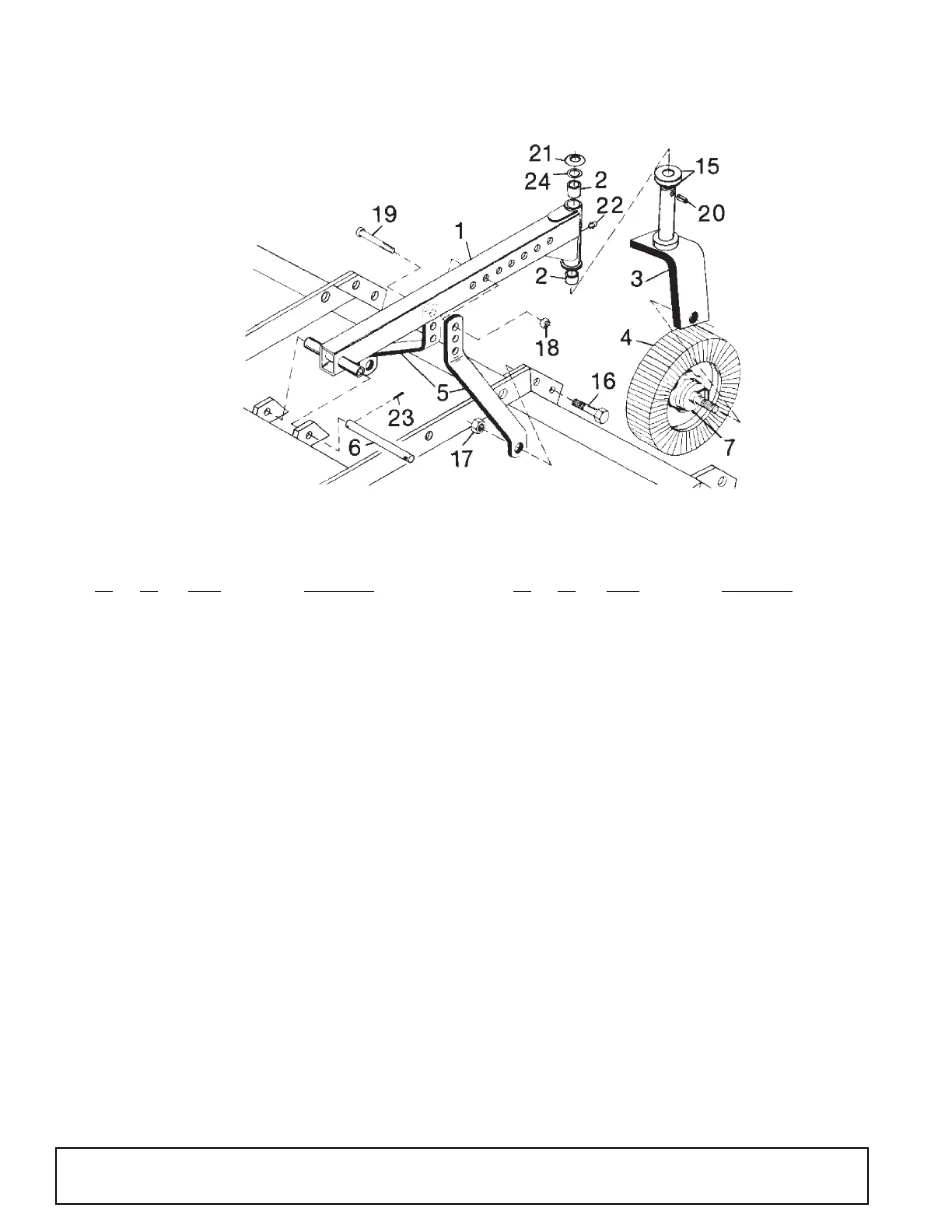

M208-2 TAILWHEEL ASSEMBLY (MOUNTED UNITS ONLY)
Ref Part No
No
No Used Description
1 32378 2 Tailwheel arm asy (includes
items 2 & 22)
2 11011 4 1--1/2 x 1--5/8 x 1--1/2 Bronze
bushing
3 32384 2 Tailwheel yoke assembly
4 ---------- 2 Wheel assembly
5 32387 4 Tailwheel adjustment bracket
6 27903 2 3/4 x 7--3/4 Clevis pin
7 4984 2 Heavy hub with long axle
15 2370 4 1--1/2 Standard SAE flat
washer
16 13759 4 3/4 NC x 2--1/4 Hex head cap
screw HT
17 2371 * 4 3/4 NC Hex locknut
18 6239 * 2 5/8 NC Hex locknut
19 3097 2 5/8 NC x 4--1/2 Hex head cap
screw HT
20 4674 2 3/8 x 2 Spirol pin
21 12881 2 Tailwheel cap washer
22 1972 * 2 1/4 -- 28 Taper thread grease
fitting
23 6185 * 2 1/4 x 2--1/4 Cotter pin
24 12889 2 3/32 SQ x 1--9/16 OD O--Ring
*Obtain Locally
DB2138
Dual
Ref Part No
No
No Used Description
1 32378 1 Tailwheel arm asy (includes
items 2 & 22)
2 11011 2 1--1/2 x 1--5/8 x 1--1/2 Bronze
bushing
3 12905 1 Tailwheel yoke assembly
(Early Style)
-- o r -- -- o r --
3 15580 1 Tailwheel Clevis Weldment
(Fork Style -- Use New Hub
Only)
4 ---------- 1 Wheel assembly
5 32382 2 Tailwheel adjustment bracket
6 27903 1 3/4 x 7--3/4 Clevis pin
7 ---------- 1 Heavy hub with long axl
15 2370 2 1--1/2 Standard SAE flat
washer
16 13759 2 3/4 NC x 2--1/4 Hex head cap
screw HT
17 2371 * 2 3/4 NC Hex locknut
18 6239 * 1 5/8 NC Hex locknut
19 3097 1 5/8 NC x 4--1/2 Hex head cap
screw HT
20 4674 1 3/8 x 2 Spirol pin
21 12881 1 Tailwheel cap washer
22 1972 * 1 1/4 -- 28 Taper thread grease
fitting
23 6185 * 1 1/4 x 2--1/4 Cotter pin
24 12889 1 3/32 SQ x 1--9/16 OD O--Ring
Single
