Parts 63
32394 (Rev. 9/3/2004)

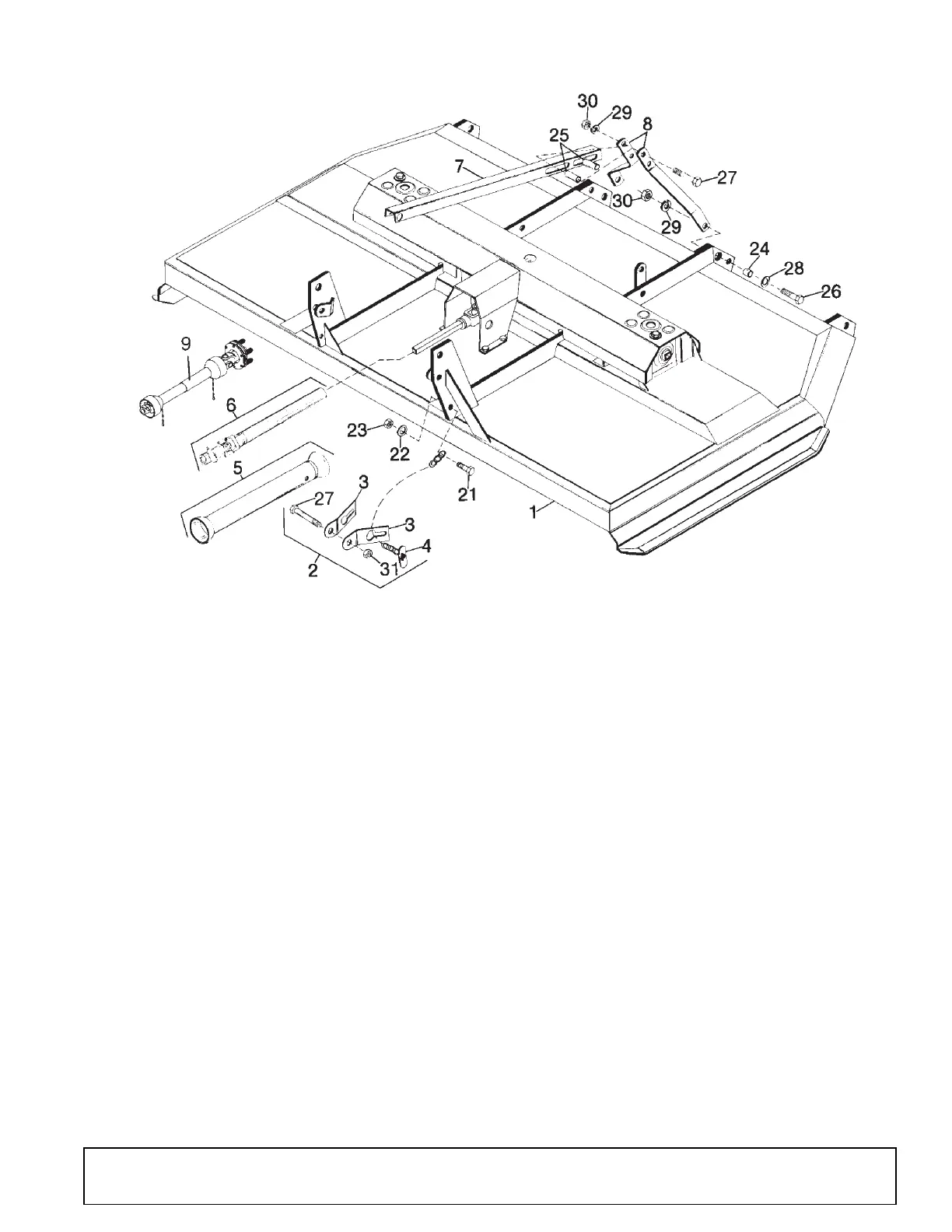

M208-2 LINK & PIVOT ARM ASSEMBLY (MOUNTED UNITS ONLY)
DC2164A
REF PART QTY DESCRIPTION
1 8417 1 Frame shipping unit
2 10521 1 Check chain kit
3 7906 2 Lower check chain bracket
4 18048 2 3/8 Chain x 32-link & check lug
5 ----- 1 PTO Shield kit (1-1/2ā Square tele-
scopic shaft)
6 ----- 1 Tubular shaft & joint (1-1/2ā Square
telescopic shaft)
7 28285 1 Top link weldment
8 28287 2 Pivot arm
9 53443 1 Drive assembly complete 60 29.9 x
48.2 S.C. (Tri-Lobe)
REF PART DESCRIPTION
21 12274 * 5/8 NC x 2-1/4 HHCS HT
22 3632 * 5/8 Standard SAE flat washer
23 6239 * 5/8 NC Hex locknut
24 13087 3/4 x 1-1/8 x 2-1/2 HT Sleeve
25 28288 3/4 x 1-1/8 x 3-3/16 Sleeve
26 13759 3/4 NC x 2-1/4 HHCS GR5
27 2377 3/4 NC x 6 HHCS HT
28 2864 * 3/4 SAE Flat washer
29 2522 * 3/4 Standard lockwasher
30 1450 * 3/4 NC Hex nut
31 2371 * 3/4 NC Hex locknut
Obtain Locally
To Next Page
