62 Parts
32394 (Rev. 9/3/2004)

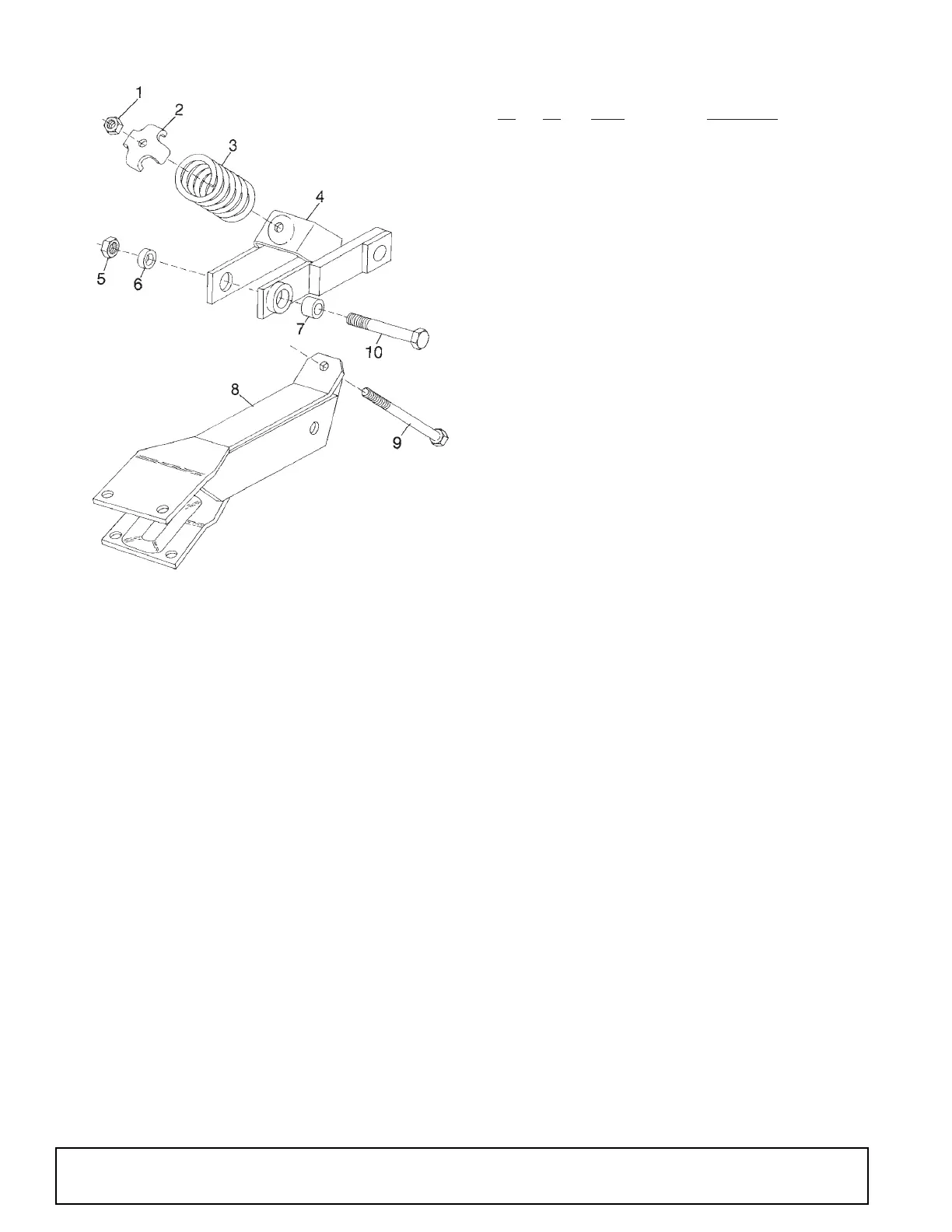

208-2 SPRING ARM ASSEMBLY (OPTIONAL) (PULL-TYPE UNITS ONLY)
DB2157A
Ref Part No
No
No Used Description
1 12006 2 5/8 NC Elastic stop nut
-- o r -- -- o r --
1 2371 * 2 3/4 NC Hex locknut
2 12447 2 5/8 x 3 x 7 GA Hat washer
-- o r -- -- o r --
2 39097 2 .781 x .38 x 4.12 Square washer
3 17195 2 5/8 x 9--1/2 Compression spring
4 16302 1 Right outer arm assembly
-- o r -- -- o r --
4 16303 1 Left outer arm assembly
5 2371 * 2 3/4 NC Hex locknut
6 10083 2 3/4 x 1--1/8 x 5/8 HT Bushing
7 5560 2 3/4 x 1--1/8 x 31/32 HT Sleeve
8 20089 2 Spring wheel yoke arm for 3/4”
spring retaining bolt
-- o r -- -- o r --
8 20111 2 Spring wheel yoke arm kit for 5/8”
spring retaining bolt (includes items
#1, 2, 8 & 9)
9 25160 2 3/4 NC x 11--1/2 Hex head cap
screw GR5
10 2377 2 3/4 NC x 6 Hex head cap screw HT
-- 8423 1 Spring arms, left and right complete
*Obtain Locally
To Next Page
