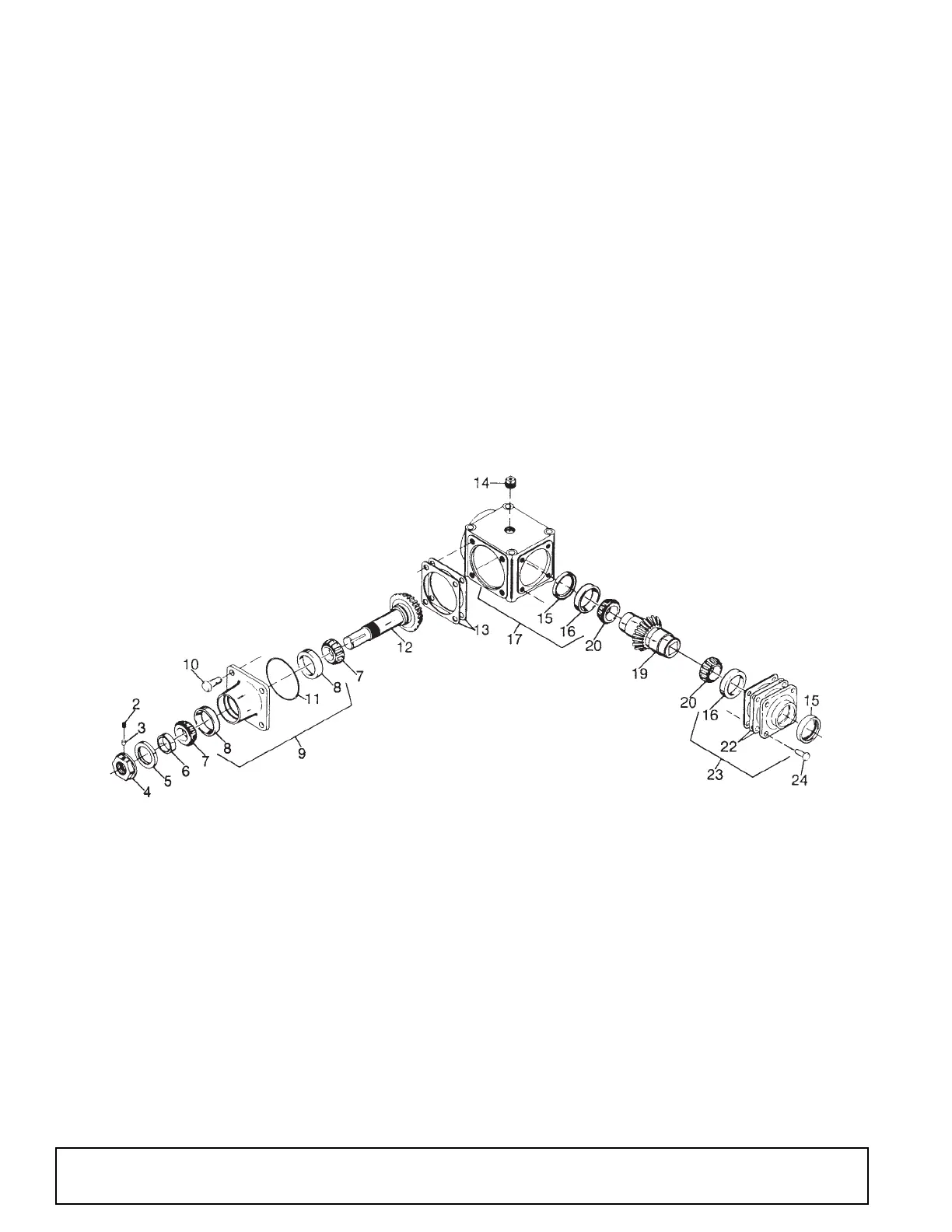

208-2 & M208-2 INPUT GEARBOX 1:1.35 (PULL-TYPE & MOUNTED)
1 -- COMPLETE GEARBOX
DC2170C
REF PART QTY DESCRIPTION
1 32363 1 Input gearbox 1:1.35 complete
2 7269 1 3/8 NC x 3/8 Flat point socket set
screw
3 7127 1 5/16 x 5/32 Dowel plug
4 11007 1 1-5/8 Flanged nut
5 11010 1 Seal for 2-1/8 shaft
6 11054 1 1-/58 x 2-1/8 x 5/8 Sleeve
6 11054 1 1-/58 x 2-1/8 x 5/8 Sleeve
7 11114 2 Bearing cone, 1.625 ID
8 11115 2 Bearing cup, 2.891 OD
9 11063 1 Horizontal gearbox housing with cups
(includes item 8)
10 7832 * 4 5/8 NC x 2-1/2 HHCS GR5
11 10055 1 1/8 SQ x 5-1/4 OD O-ring
REF PART QTY DESCRIPTION
12 32364 1 Gear and shaft assembly
13 11209 2 .010 Gearbox gasket
14 23675 1 1” Breather vent pipe plug
15 32359 2 3.00 OD x 2.00 ID x .31 Seal
16 4320 2 Bearing cup, 3.50 OD
17 32391 1 Input gearbox housing with bearing
cup (includes one of item 16)
19 32367 1 Cross shaft and gear assembly
20 15681 2 Bearing cone, 2.00 ID
22 32388 4 .005 x 4-1/2 ID x 5 Gasket
23 32390 1 End cap with bearing cup and seal
(included one each of items 15 & 16)
24 839 * 4 3/8 NC x 1 HHCS GR5
*
Obtain Locally
