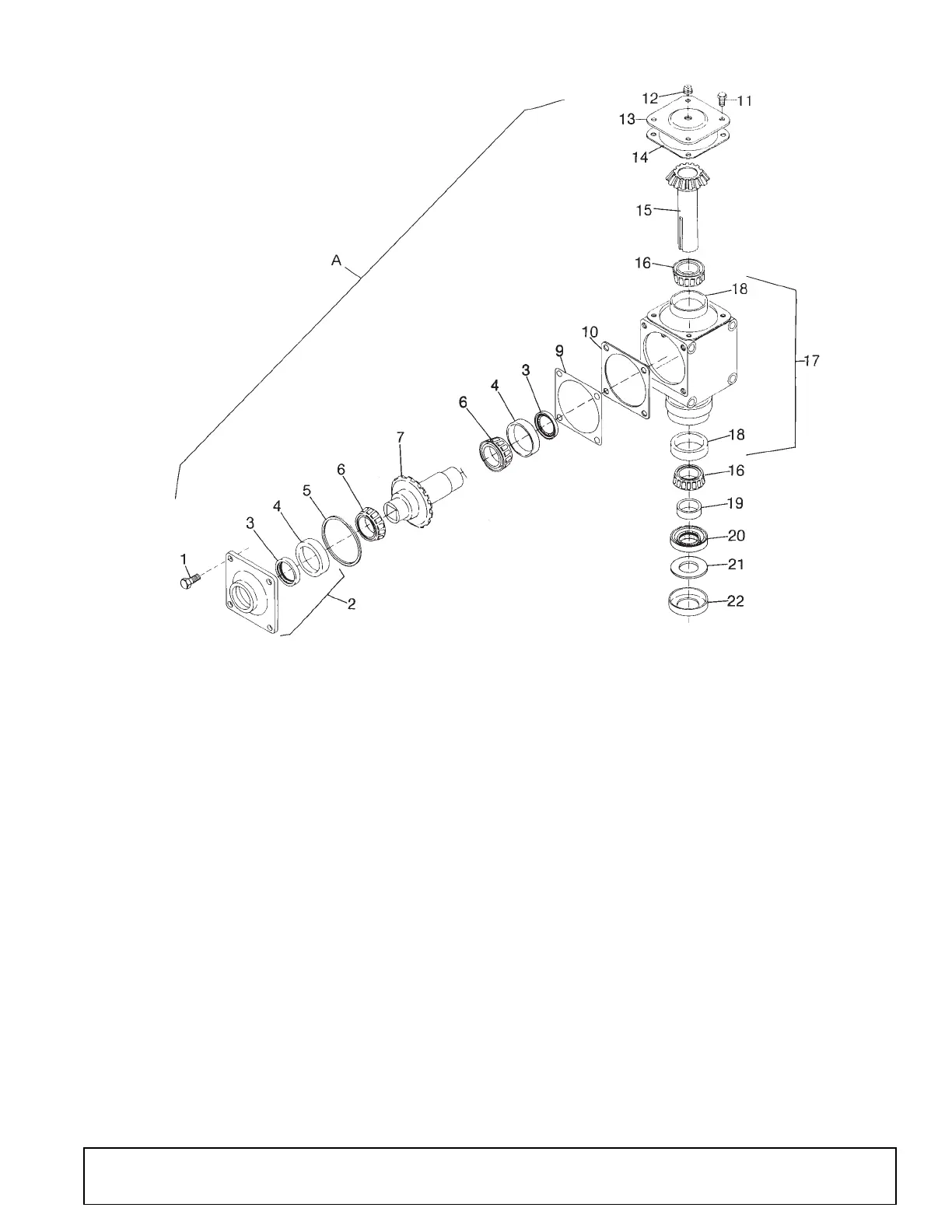

208-2 & M208-2 SPINDLE GEARBOX 1:1.35 (PULL-TYPES & MOUNTED)
DC2168B
REF PART QTY DESCRIPTION
A 32399 1 1:1.35 Repair gearbox
1 7832 * 4 5/8 NC x 1-1/2 HHCS HT
2 32413 1 Bearing cap, cup and seal (2 bore)
3 32359 2 3.00 OD x 2.00 ID x .31 Seal
4 11555 2 Bearing cup, 3.81 OD
5 10055 1 1/8 SQ x 5-1/4 OD O-ring
6 32397 2 Bearing cone, 2.00 ID
7 32354 1 Cross shaft and 23-tooth gear
assembly
9 17215 1 .005 Gearbox gasket
10 11209 2 .010 Gearbox gasket
11 839 * 4 3/8 NC x 1 HHCS GR5
12 23057 1 1/2 NPTF Vented pipe plug
13 23051 1 Gearbox cover
14 11442 1 .062 x 4-1/2 ID x 5 Gasket
15 11158 1 Vertical gear and shaft assembly, HT
16 11114 2 Bearing cone, 2.891 OD
17 17105 1 Spindle gearbox housing with cups
(includes cups #18)
18 11115 2 Bearing cups, 2.891 OD
19 11054 1 1-5/8 x 2-1/8 x 5/8 Sleeve
20 11010 1 Seal for 2-1/8 Shaft
21 25367 1 1-5/8 x 2-3/4 x 10 GA Flat washer
22 25365 1 Gearbox washer retainer
23 25366 1 Gearbox crossbar shim pack
* Obtain Locally
