Woods 208-2 - Page 48

46 Parts
32394 (Rev. 9/3/2004)

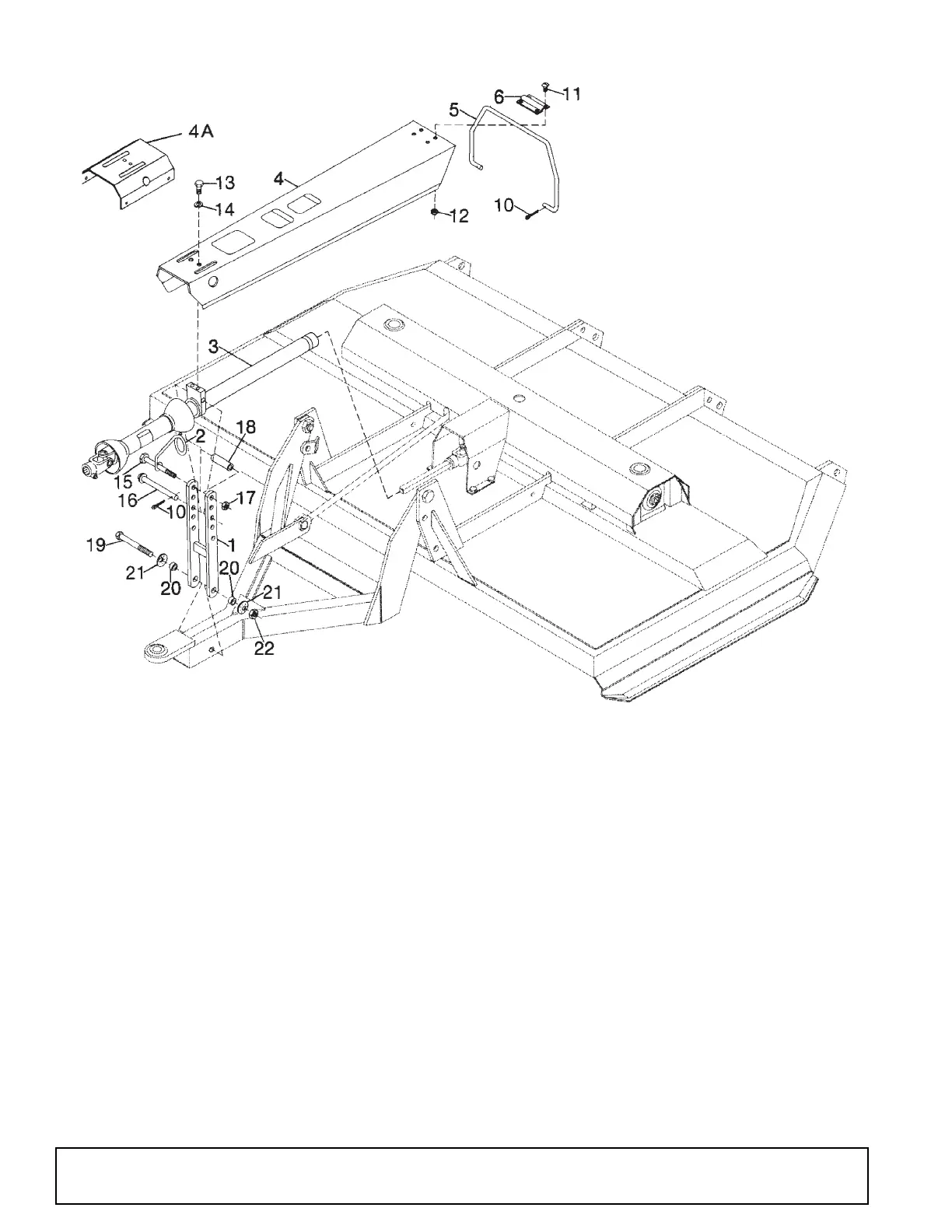

208-2 DRIVE SHAFT & SHIELD ASSEMBLY (PULL-TYPE UNITS ONLY)
DC2162A
REF PART QTY DESCRIPTION
1 11940 1 H-Frame assembly with hardware
2 3443 1 Hydraulic hose holder
3 ----- 1 Front 2/3 of 3-joint drive (see splined
or square driveshafts)
4A 51575 1 Upper drive shield for splined drive-
shafts (items 5, 6, 10, 11 & 12 are not
used with this shield) -or-
4 24873 1 Drive shaft shield for square drive-
shaft
5 29686 1 Shield support
6 6747 1 Shield strap
HARDWARE
10 1256 * 3/16 x 1 Cotter pin
11 1282 * 1/4 NC x 1/2 Round head screw
12 6128 * 1/4 NC Hex locknut
13 839 * 3/8 NC x 1 HHCS GR5
14 838 * 3/8 Standard lockwasher
15 12305 * 1/2 NC x 5-1/2 HHCS GR5
16 404 1/2 x 5-3/4 Clevis pin HT
17 1093 1/2 NC Heavy hex nut
18 7035 1/2 Schedule 40 x 3-6/16 pipe
19 12005 5/8 NC x 6 HHCS HT
20 1791 5/8 x 1 x 9/16 Sleeve HT
21 10635 5/8 x 1-3/4 x 14 GA Cup washer
22 6239 * 5/8 NC Hex locknut
* Obtain Locally
REF PART QTY DESCRIPTION
