MOUNTED 208-2 ASSEMBLY
The mounted 208-2 is available for Category 1 and
Category 2, 3-point hitch tractors. It is also available
with single or dual tailwheels.
A-Frame Installation (MTD)
(Figure 26 & Figure 27)
Determine if the machine is to be set up in a Category
1 or 2 configuration. Refer to the proper category
instructions

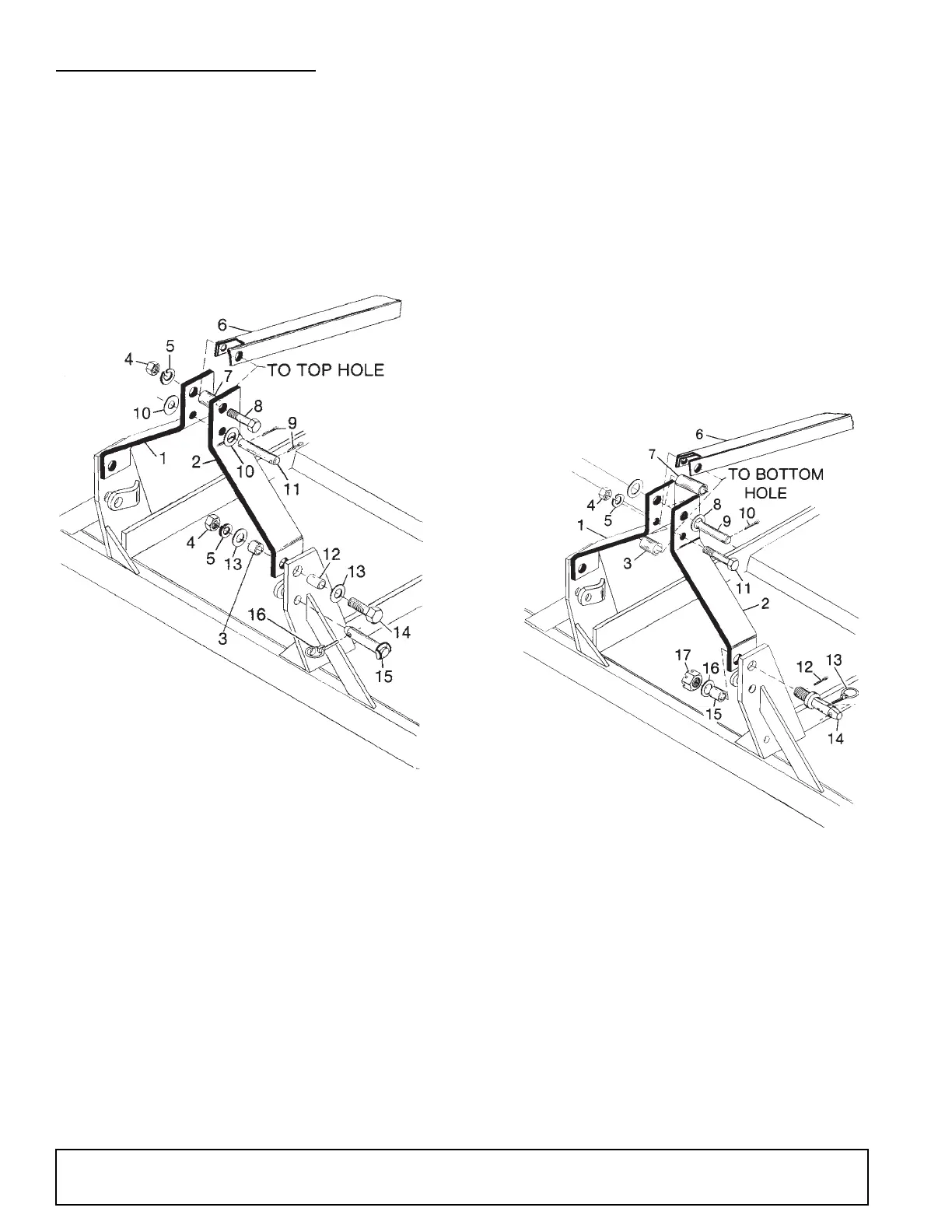

Figure 26. Category 1, 3-Point Hitch
Installation (MTD)
Category 1 Assembly (MTD) (Figure 26)
Attach right A-frame half (1) and left A-frame half (2) to
top hole of cutter mast by placing washer (13) and
sleeve (12) on bolt (14). Insert bolt through mast and A-
frame half, then place spacer (3), washer (13), lock
washer (5), and nut (4) on bolt. Torque hardware.
Insert clevis pin (11) through lower hole in top of A-
frame and place a washer (10) on each end. Secure
both ends of clevis pin with cotter pins (9).
Place spacer (7) inside top link weldment (6) and
attach to top hole of A-frame with bolt (8), lock washer
(5), and nut (4). Torque hardware.
Insert category 1 hitch pin (15) through bottom hole of
cutter mast by inserting hitch pin (14) through top hole
of cutter mast and secure with Klik pin (16). Tractor 3-
point arms will be mounter inside the clevis bracket.
Figure 27. Category 2, 3-Point Hitch
Installation (MTD)
DB2118
CATEGORY 1
3--POINT HITCH MOUNT
1. Right A--frame half
2. Left A--frame half
3. 1--1/8 x 1--7/16 x 11/16” Spacer
4. 3/4” Hex nut
5. 3/4” Standard lock washer
6. Top link weldment
7. 3/4 x 1--1/4 x 3” Spacer
8. 3/4 x 5--1/2” Bolt
9. 1/4 x 1--1/2” Cotter pin
10. 3/4” Flat washer
11. 3/4 x 5--27/32” Clevis pin
12. 3/4 x 1--1/8 x 1--3/8” Sleeve
13. 3/4 x 1--3/4” x 7GA Flat washer
14. 3/4 x 3” Bolt
15. Category 1 hitch pin
16. 7/16 x 11/32” Klik pin
CATEGORY 2
3--POINT HITCH MOUNT
1. Right A--frame half
2. Left A--frame half
3. 3/4 x 1--1/4 x 3” Sleeve
4. 3/4” Hex nut
5. 3/4” Standard lock washer
6. Top link weldment
7. 3/4 x 1 x 3” Spacer
8. 3/4 Flat washer
9. 3/4 x 5--27/32” Clevis pin
10. 1/4 x 1--1/2” Cotter pin
11. 3/4 x 5--1/2” Bolt
12. 3/16 x 1--1/2” Cotter pin
13. 7/16 x 11/32” Klik pin
14. Category 2 hitch pin
15. 1--1/8 x 1--7/16 x 1--11/16” Sleeve
16. 1--1/8 x 2--3/8 x 3/16” Flat washer
17. 1--1/8 Slotted hex nut
DB2119
