Assembly 37
32394 (Rev. 9/3/2004)
Chain Shielding Installation (Figure 32)
Full chain shielding, designed to reduce the
possibility of thrown objects, must be installed
when operating in populated areas or other areas
where thrown objects could injure people or dam-
age property. If this machine is not equipped with
full chain shielding, operation must be stopped
when anyone comes within several hundred feet.
Install chain shielding as shown, inserting bolts from
inside out. Be sure to use flange locknuts (7) on front
shields, and locknuts (6) on rear chain shielding. When
assembly is finished, complete the Pre-Delivery and
Delivery checklists on page 40.

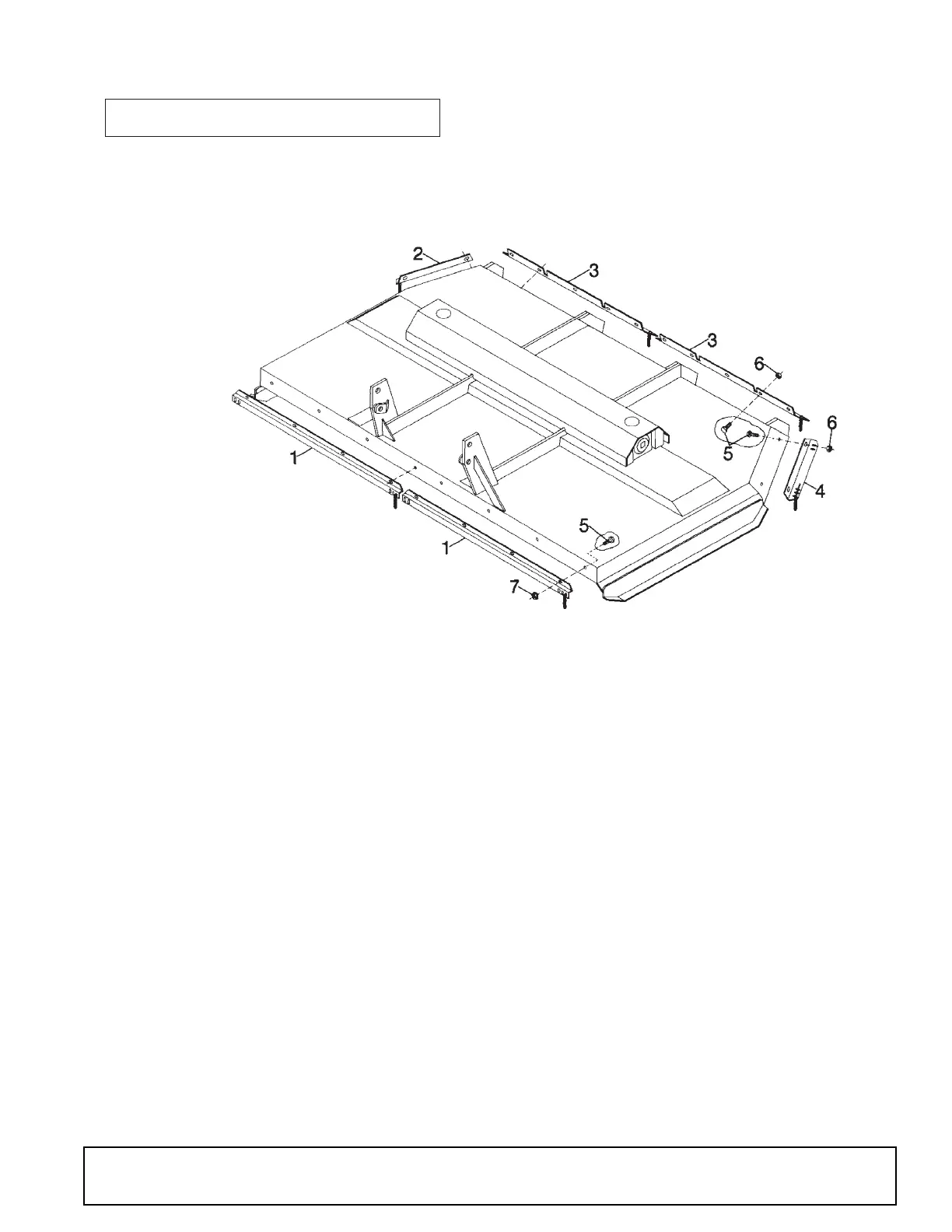

Figure 32. Chain Shielding Installation
A WARNING
1. Front chain shielding
2. Right rear chain shielding
3. Rear chain shielding
4. Left rear chain shielding
5. 1/2 x 1--1/4” Bolt
6. 1/2” Locknut
7. 1/2” Flange locknut
