C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Publication No. 150-041118 Page 4-13
Rev A Section 4 –Electrical Installation
Sep 2001
B. C-5000 Transceiver Interface to RT-5000 Transceiver Wiring Considerations
(1) P501/P502 Connectors

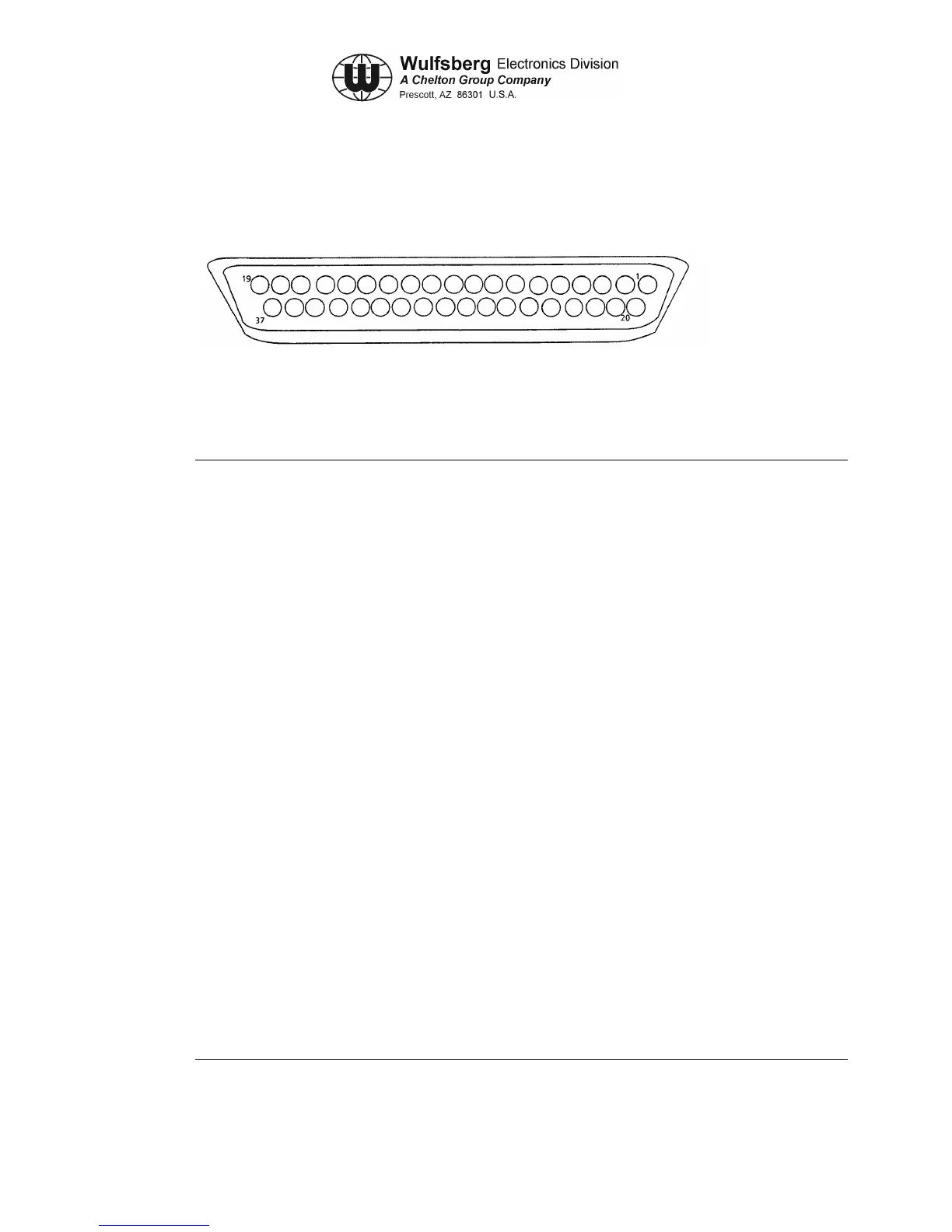

Figure 4-4. P501/P502 Connectors
(2) C-5000 Transceiver (RT-5000) Connector P501, P502.
PIN SIGNAL NAME PIN SIGNAL NAME
1 DIGITAL SHIELD 23 SPARE
2 CONTROL TX L 24 SPARE
3 ON/OFF 25 RESERVED OUT SPARE B
4 CONTROL TX H 26 VOICE AUDIO LO
5 CONTROL RX L 27 RESERVED OUPUT SPARE
6 SPARE 28 SPARE
7 IN SPARE NO 1 29 SHIELD
8 CONTROL RX H 30 MIC HI
9 SPARE 31 UNSQL MN RCV AUDIO
10 SPARE 32 SPARE
11 MIC LO/PTT 33 TX
12 SPARE 34 IN SPARE NO 3
13 VOICE AUDIO HI 35 SPARE
14 CIPHER/PLAIN 36 IN SPARE NO 2
15 SPARE 37 GROUND
16 PLAIN/CIPHER
17 TAKE CONTROL
18 EXT XMT AUDIO
19 GROUND
20 CONTROL GROUND
21 UNSQL GD RCV AUDIO
22 SPARE
Table 4-2. C-5000 Transceiver (RT-5000) Connector P501, P502 Pin Names
