C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Publication No. 150-041118 Page 4-25
Rev A Section 4 –Electrical Installation
Sep 2001
PIN SIGNAL NAME PIN SIGNAL NAME
A+27.5 VDC
B DC RETURN
CGND

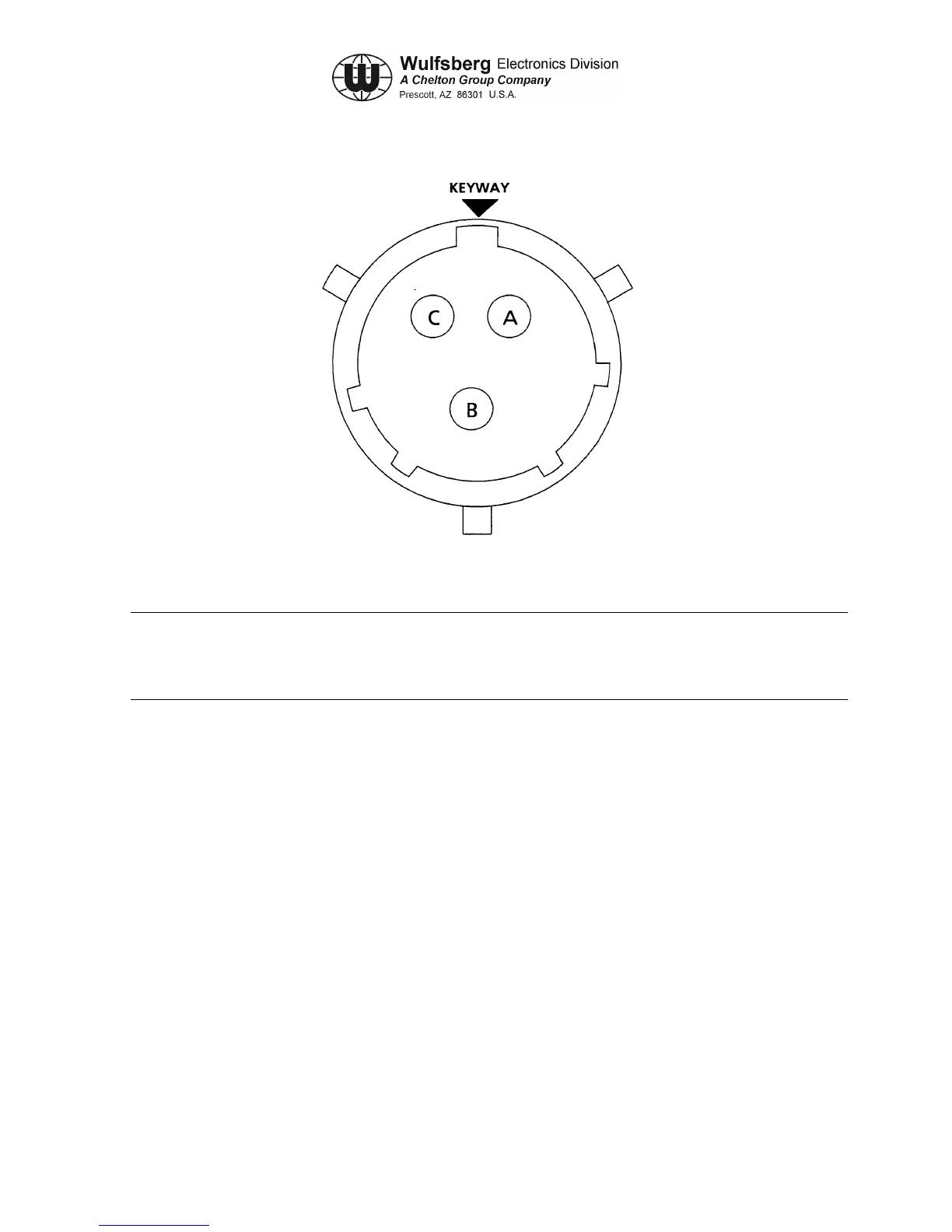

Figure 4-7. FC-50 / FC-550 / FC-5000 Connector J2
