Wunder-Bar JoeTap NITCOM - Page 21

Page | 21
a. Stainless Steel Elbow Shanks: The Elbow Shank can leak from two locations, tube connected with Oetiker
Clamps or the welded joints:
i. If the leak is coming from the tubes connected to the Elbow, the tube and Oetiker Clamp can be
removed once the Tower is disassembled and reused. Refer to Appendix I: Disassembling The Tower to
see how to disassemble and reassemble the Tower. See Figure 42.
ii. If the Stainless-Steel elbow is damaged, replace the entire elbow. Refer to Appendix I: Disassembling
The Tower to see how to disassemble and reassemble the Tower. See Figure 42.
b. BSPP x Push to Fit Adaptor Fittings: The BSSPP X Push to Fit Adaptor Fitting can leak from two locations, the
threaded end and the Push To Fit end:
2-Way
Divider
BSPP x Push
to FIT
Adaptor
Fittings
Black Elbow
Fitting
Check
Valve
Welded End

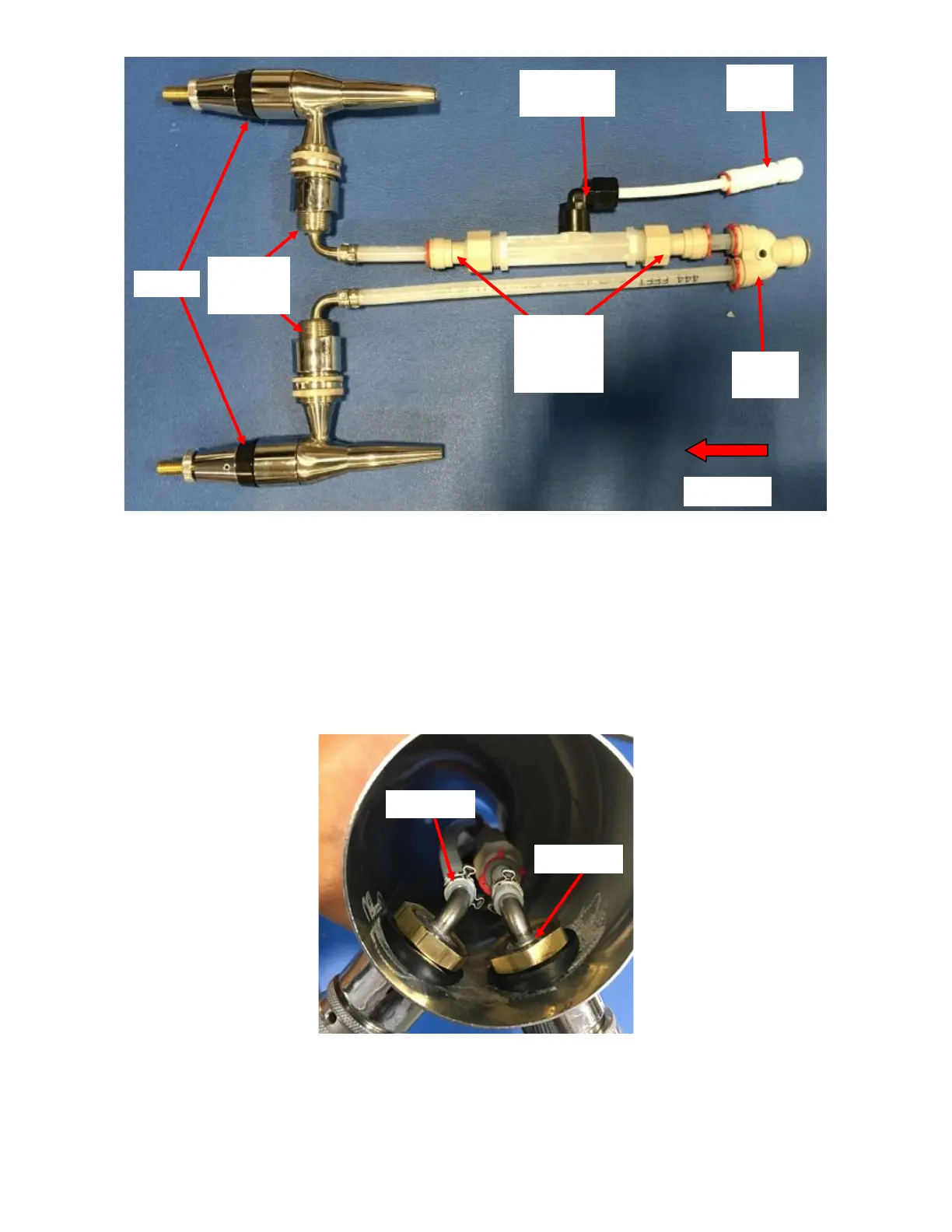

Figure 41: Tower Parts Identification.
Figure 42: Leak points on the Elbow Shank shown.
Stainless
Steel Elbow
Shank
Faucet
Tube End
This Way Up
