Page | 95

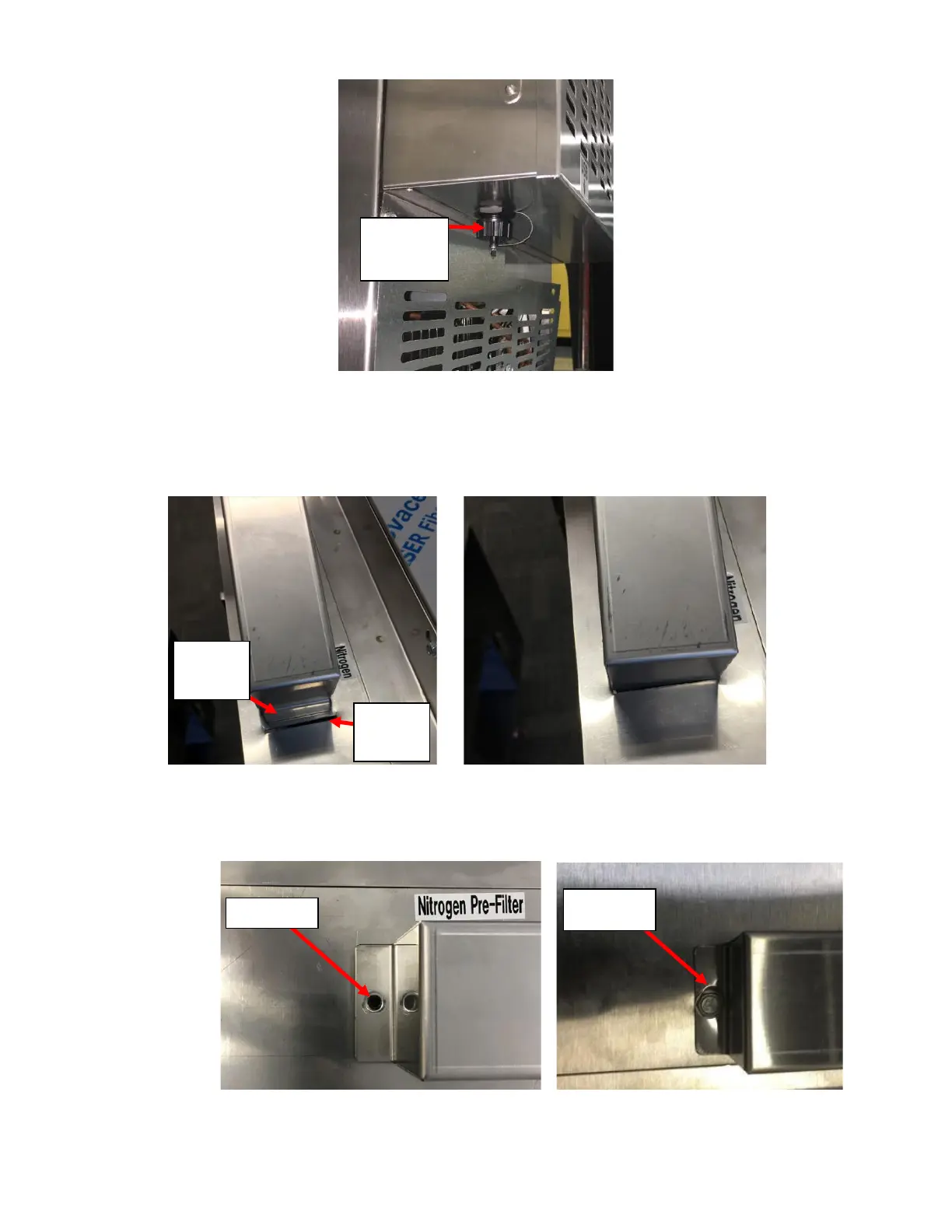

30. Hand tighten the Receptacle Cover over the Threaded End of the USB Receptacle x Plug. See Figure L33.
31. Reinstall the Regulator Cover:
a. Insert the Tab without a slot on the Regulator Cover into the Slot on top of the Rear Enclosure. See Figure
L34 and L35.
b. Lay the Regulator Cover ln the Rear Enclosure so the Slot on the Left tab is lined up with the hole on top of
the Rear Enclosure. See Figure L36 and Figure L37.
Figure L34: Regulator Cover Tab lined up with
Slot on Top Wall of Rear Enclosure.
Figure L35: Regulator Cover Tab sliding into Slot on
Top Wall of Rear Enclosure.
Figure L36: Hole on Left tab of the Regulator Cover Lined
up with punch on the Top Wall of Rear Enclosure.
Figure L37: Regulator Cover secured in place
with Sheet Metal Screw.
Receptacle
Cover Hand
Tightened
Figure L33: Receptacle Cover of the USB
Receptacle x Plug hand tightened.
