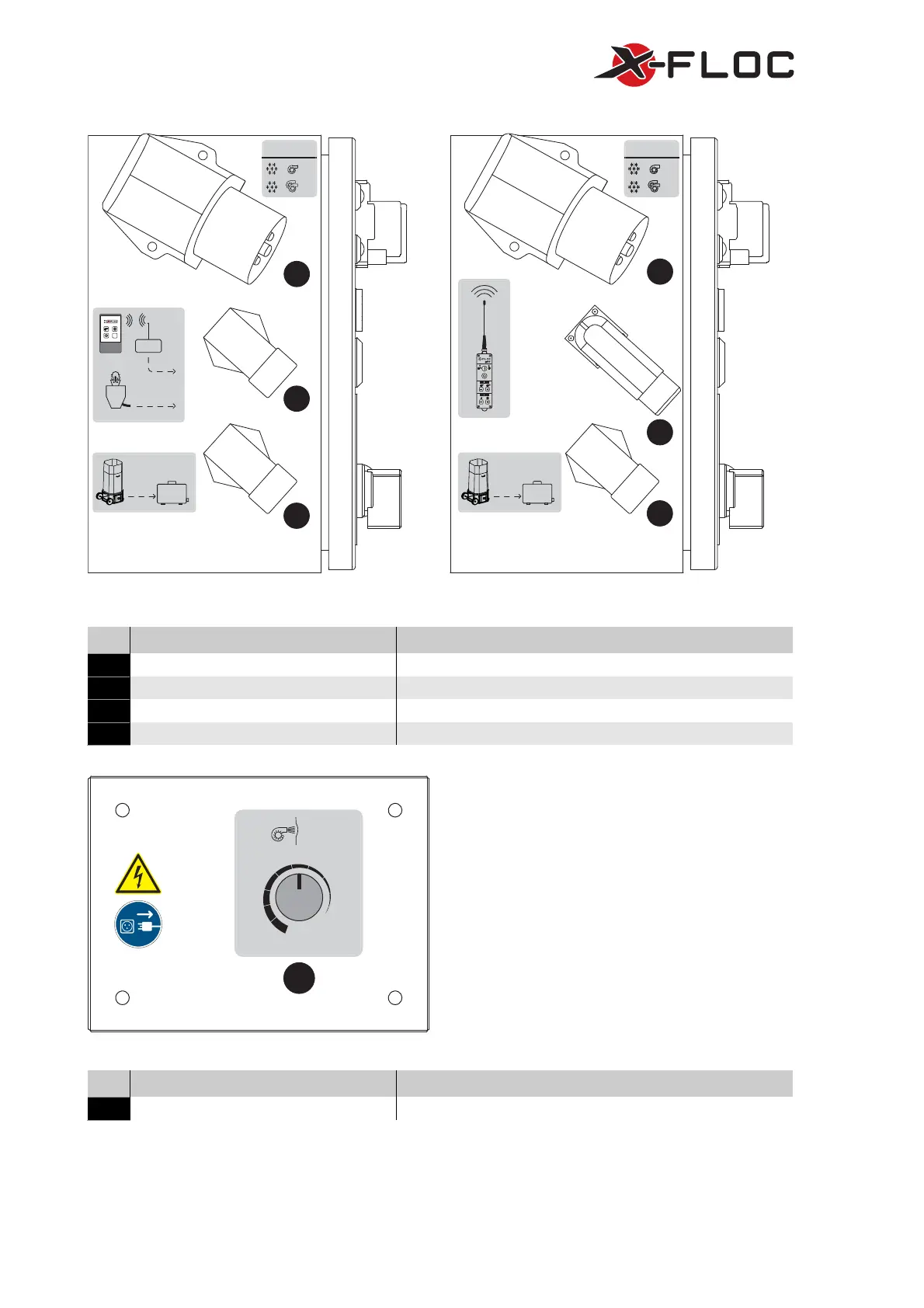

Figure 4: Side view of the electric switchboard’s [6]
control elements M99, M99-DS
Figure 5: Side view of the electric switchboard’s [6]
control elements M99-DS-Pro
Pos. Control Element Purpose
27
Main connection X10 Electrical power point
28 Machine control socket X3 (M99, M99-DS) Remote control connection FFB400 / KFB3 / KFB30
29 Auxiliary power socket X2 Amplifier/vacuum station connection, signal output
30 Machine control socket X3 (M99-DS-Pro) Remote control connection FFB2000-Pro
[mbar]
300
275
250
225
200
175
150
125
100
80
315
31
S3
Figure 6: Control Element additional switch box [14]
Pos. Control Element Purpose
31 Pressure regulator S3 Pressure threshold setting
