5 Operation
5.1 Cable Remote Control KFB
3
32
33
34
35
36
37
www.x-floc.com

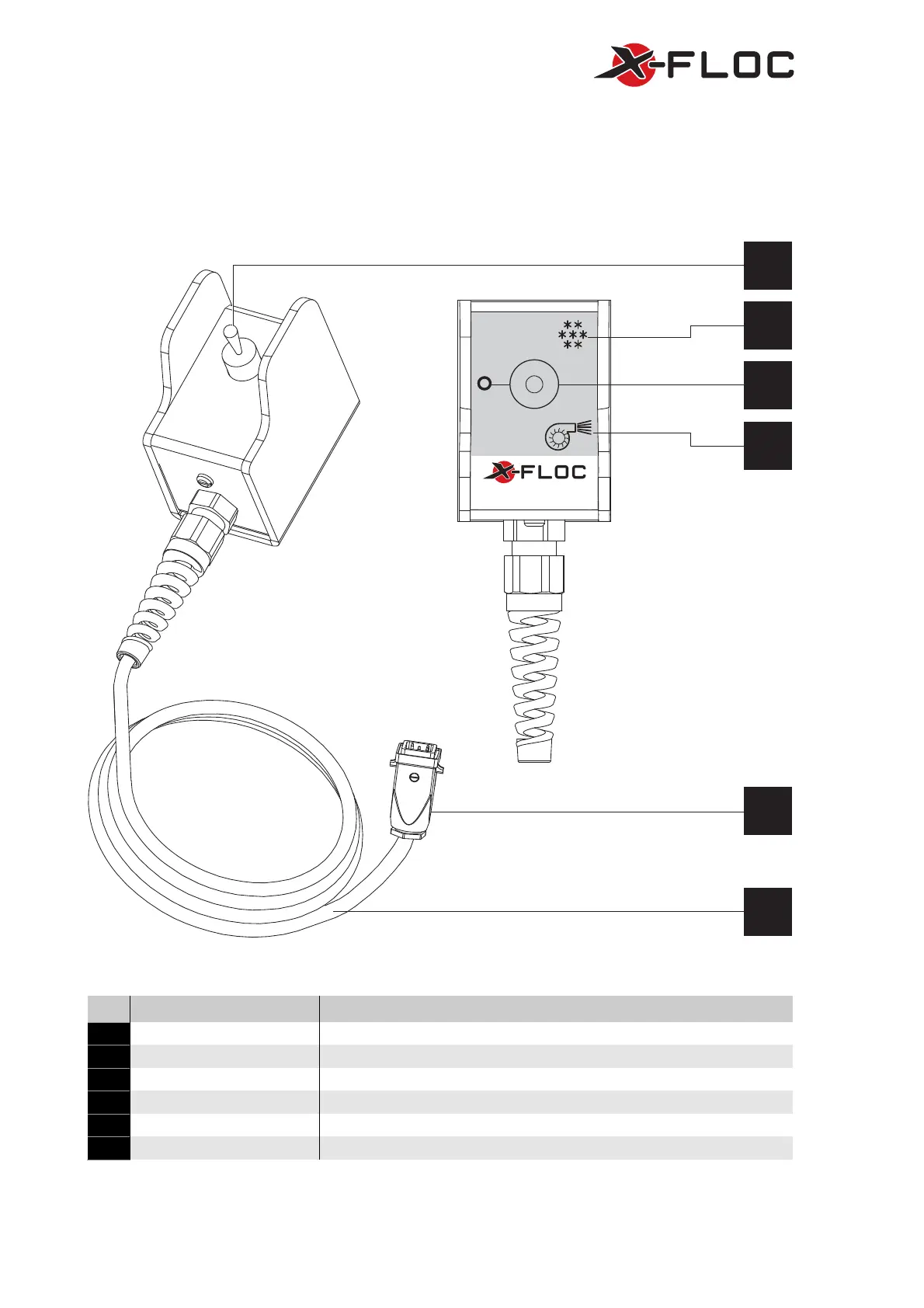

Figure 13: Hand-held control KFB 3
Pos. Control Element Purpose
32 Toggle switch Choosing the air flow, air and material flow, OFF
33 Material Activating the air and material flow, switching the material flow on
34 OFF Deactivating the air and material flow, switch off the machine
35 Air Activating the air flow, deactivating the material flow
36
Connection plug
Connection via the machine control socket X3 [28]
37
Connection cable Hand-held control and insulation blowing machine connection
