3 General Technical Description
3.1 Full Diagram
1
2
3
4
7
6
5
8
9
5
6
7
8
9
4
3
2
1

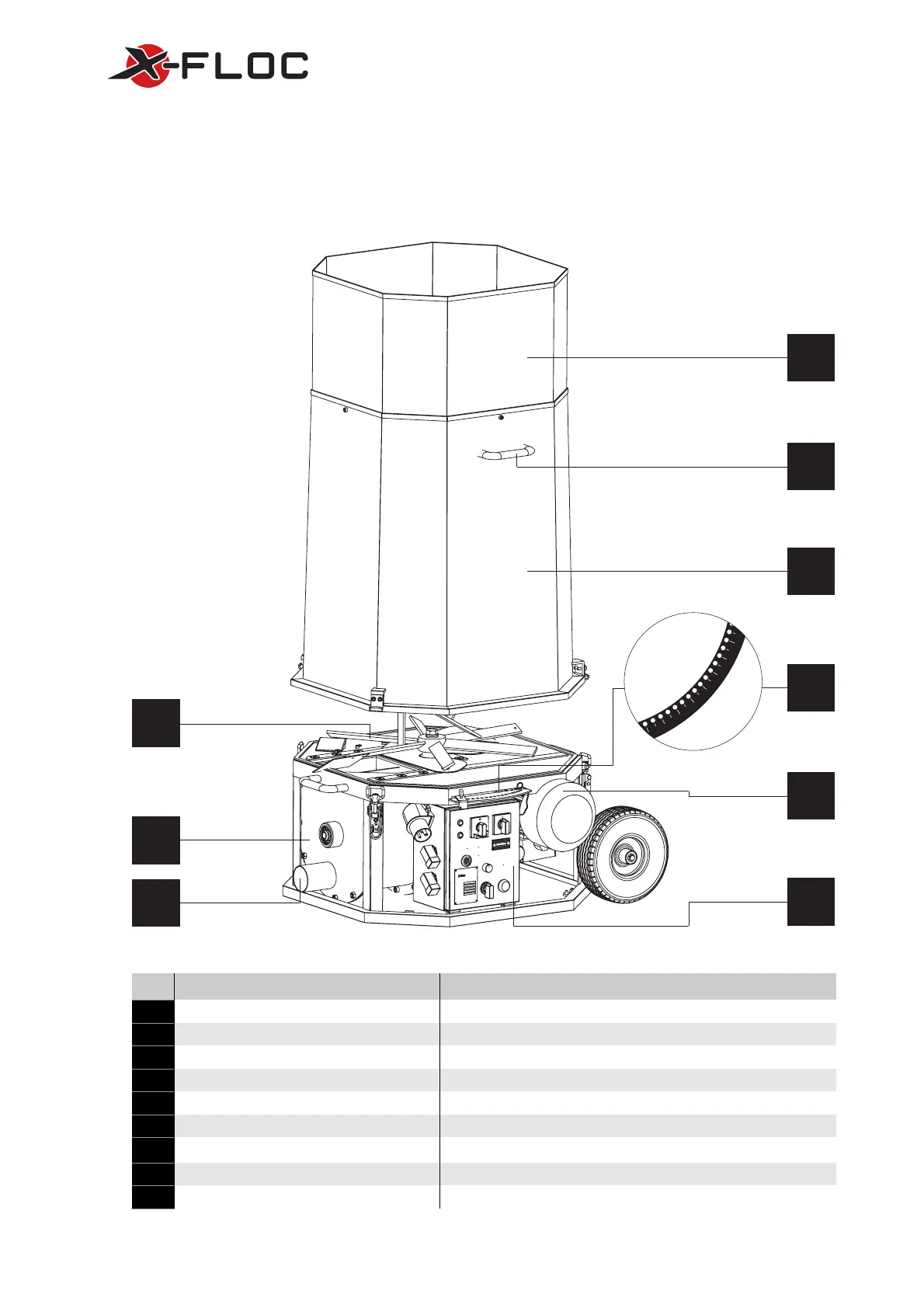

Figure 1: Insulation blowing machine M99
Pos. Control Element Purpose
1 Hopper extension Filling up, safety flap
2 Handle Holding device for removing the hopper [3]
3
Hopper Filling in
4
Airlock feed gate scale Material dosing, airlock feed gate settings
5
Motor Drive
6 Electric switchboard Control elements, on and off switch
7
Outlet NW63 (2
½
‘‘)
Insulation material and air mixture outlet, conveyor line port
8
Rotary Airlock Transport and insulation material outlet, material dosing
9
Conditioning unit Shredding and conditioning of insulation material
