X-FLOC Minifant M99 - Radio Remote Control FFB 400

Insulation Blowing Machine M99
X-Floc Dämmtechnik-Maschinen GmbH Page 19 of 51
Rosine-Starz-Straße 12 · 71272 Renningen · Germany
Phone +49-7159-80470-30 · Fax -40 | info@x-floc.com · www.x-floc.com
5.2 Radio Remote Control FFB 400
39
38
43
44
45
46
40
41
42

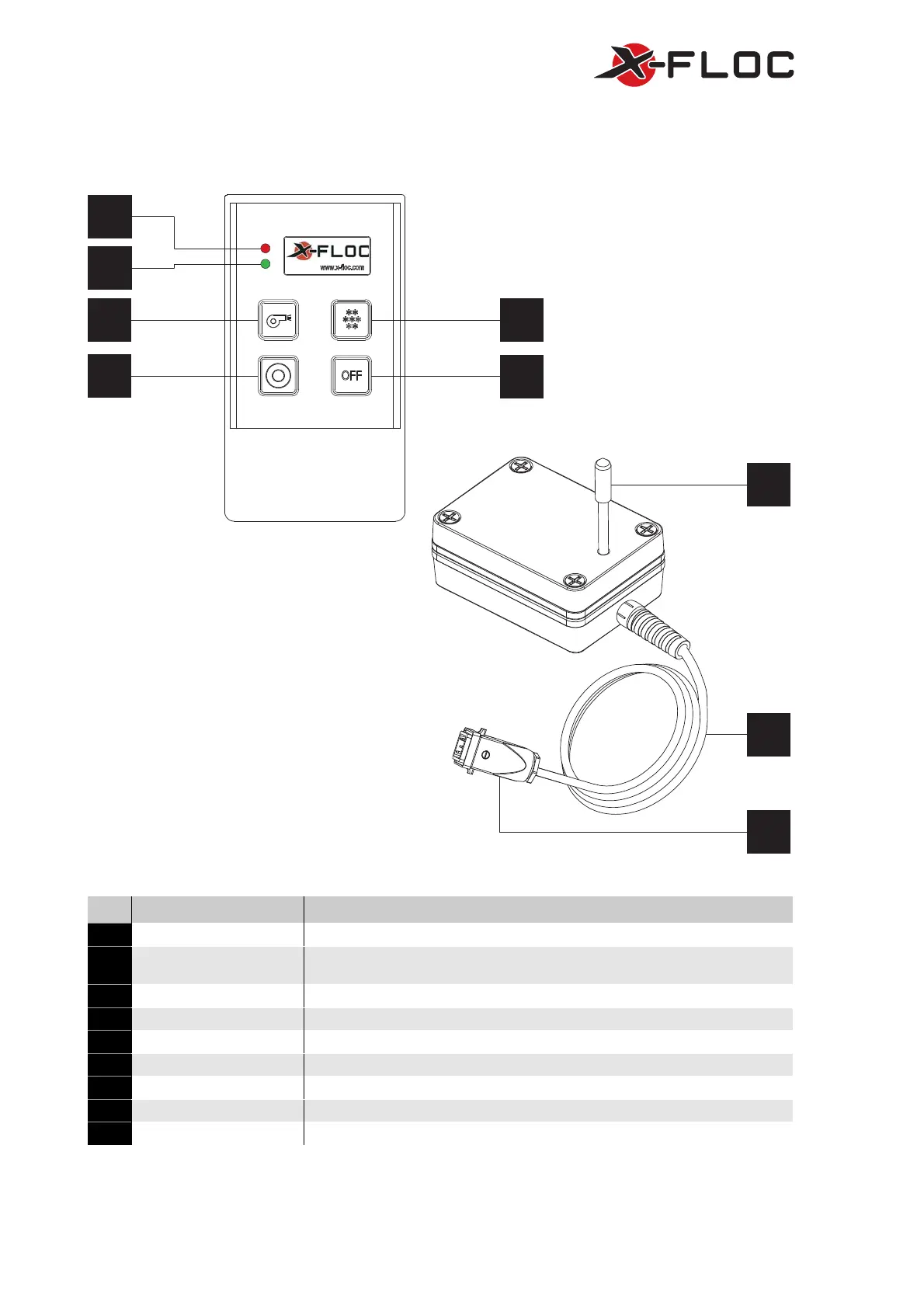

Figure 14: Hand-held control and receiver FFB 400
Pos. Control Element Purpose
38 Material Material and air flow activation, switching on the material flow
39 OFF
Material and air flow activation, switchover to parameterisation mode, key lock
activation
40 Antenna Bidirectional radio transmission between hand-held control and receiver
41 Connection cable Receiver and insulation blowing machine connection
42
Connection plug Connection at the machine control socket X3 [28]
43
AUX Additional-/reserve channel, deceleration time setting
44
Air Air flow activation, material flow deactivation, setting the deceleration time
45 Radio contact LED Control-LED for arising radio contact
46 Battery LED Signal LED for necessary battery, radio demolition and activated key lock
