Insulation Blowing Machine M99
Page 16 of 51
X-Floc Dämmtechnik-Maschinen GmbH
Rosine-Starz-Straße 12 · 71272 Renningen · Germany
Phone +49-7159-80470-30 · Fax -40 | info@x-floc.com · www.x-floc.com
4.1.4 Outlet Connection

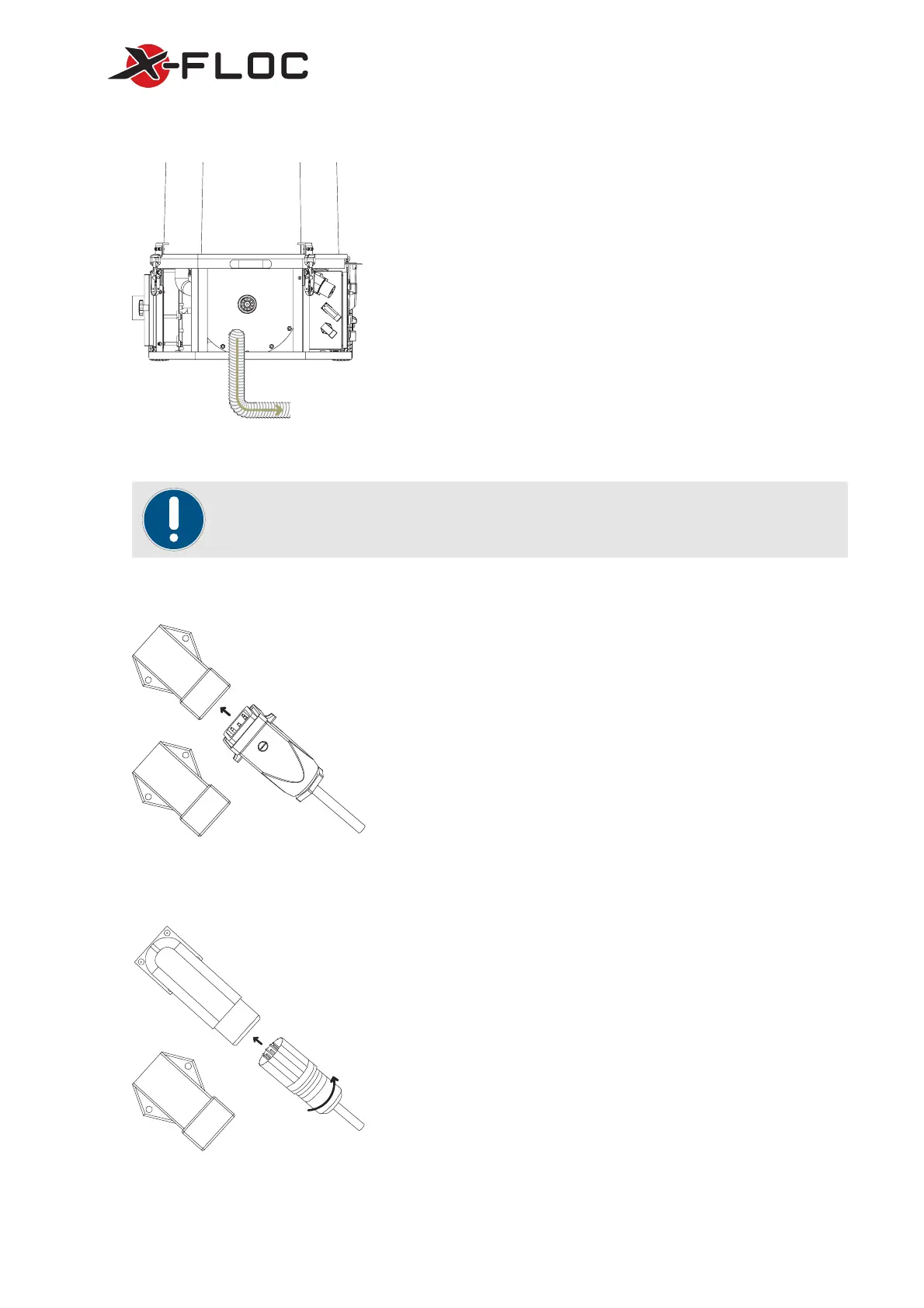

Figure 10: Outlet NW63 (2
½
‘‘) [7] with
conveyor line
The insulation material-air mixture is blown out through the
blowing machine’s outlet NW63 [7].
Put the hose line with a nominal diameter of NW63 over the
outlet and seal airtight using a hose clamp NW63.
In order to prevent air and material congestion inside the machine, vertically ascending have to
be implemented with hose loops or hose knots every 3-4
m.
4.1.5 Control Connection M99/M99-DS
X3
Figure 11: Control connection
The cable remote control KFB3/KFB30 and radio remote control
FFB400’s connections are made at the electric switchboard’s [6]
machine control socket X3 [28].
Open up the machine control socket’s retaining bracket and plug
in the control’s connection plug [36/42] into the control socket.
Press the retaining bracket downwards in order to fix the
connection plug.
4.1.6 Control Connection M99-DS-Pro
X3
Figure 12: Control connection
The radio remote control FFB2000-Pro’s connection is made at
the electrical switchboard’s [6] machine control socket X3 [30].
Plug in the control’s connection plug [36/42] into the control
socket. When establishing the plug connection, the correct
insertion position can be found by aligning the flattened sides
on the connection plug and the machine control socket. Securely
screw the connection plug’s ferrule onto the control socket.
