Insulation Blowing Machine M99
X-Floc Dämmtechnik-Maschinen GmbH Page 39 of 51
Rosine-Starz-Straße 12 · 71272 Renningen · Germany
Phone +49-7159-80470-30 · Fax -40 | info@x-floc.com · www.x-floc.com
Art.-Nr.: 2271
Pos.-Nr. Menge Art.-Nr.
1 1 2270
2 1 2272
3 1 2273
4 1 2274
5 6 2275
6 2 5666
72099
8 1 6037
92127
10 18 120
11 1 420
12 1 1387
13 6 1504
14 30 107
15 1 124
17 1 101

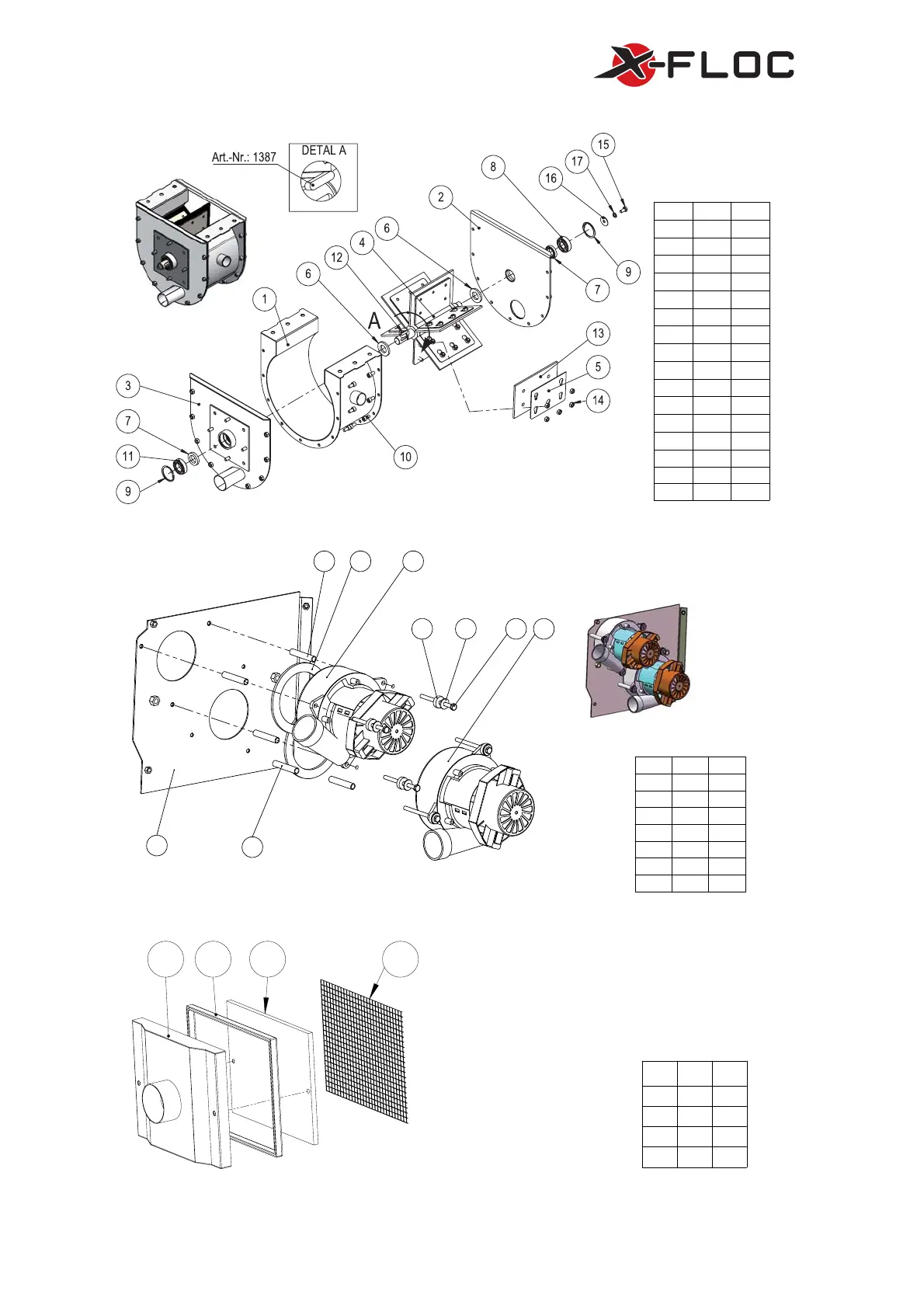

Figure 35: Blow-up drawing airlock
14
5
5
236 1
7
Art.-Nr.: 5803
Pos.-Nr. Menge Art.-Nr.
1 2 3848
2 6 3035
3 6 3964
4 2 1738
5 6 4598
6 6 2755
7 1 5834
Figure 36: Blow-up drawing air supply unit
23 41
Art.-Nr.: 3449
Pos.-
Nr.
Menge Art.-Nr.
1 1 3313
2 1 1383
3 1 3450
4 1 3451
Figure 37: Blow-up drawing suction hood [12]
