Basic Installation Procedures
24 Freedom X 2000 - 230V Owner's Guide
WARNING
ELECTRIC SHOCK HAZARD
Use a screwdriver to loosen the captive nut panel screw.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.

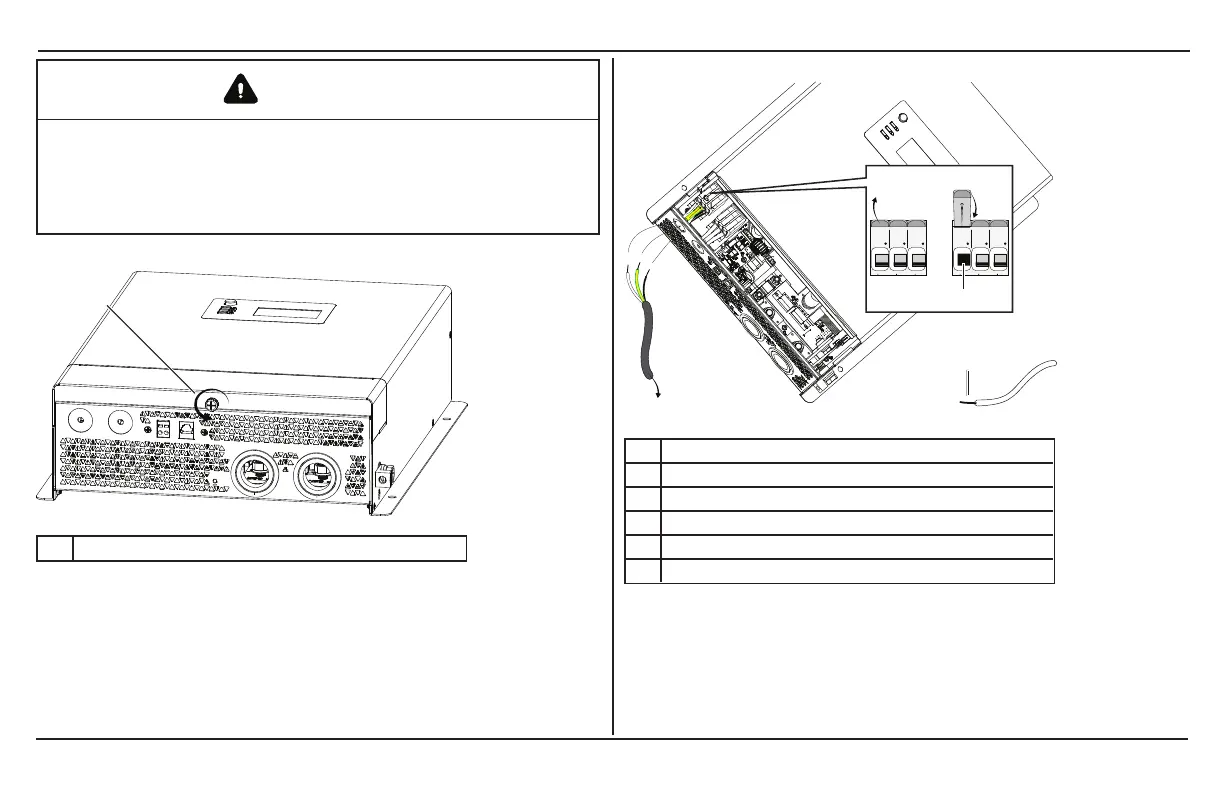

Figure 9 Loosening the captive nut panel screw
1
1 Captive nut panel screw
4. Strip a single AC input wire, as appropriate. Strip 10 mm off
the ends of each of the three the wires (tin the exposed
copper wire with lead-free solder using a soldering iron).
5. Remove the knockout and install 13mm strain relief clamp.
6. Route the wires through the strain relief clamp (not shown in
the figure).
Figure 10 Routing the AC input wires
N
L
G
N LG N LG
2
1
3
4
5
1 step 8a
2 step 8b
3 step 8c
4 15mm
5 to circuit breaker
NOTE: AC input hole - install a strain relief clamp (not shown).
7. Locate the Neutral, Earth and Line terminals on the AC input
terminal labeled as N, G, and L respectively.

Xantrex Freedom X 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Efficiency	90%
Waveform	Pure Sine Wave
Protections	Overload, Over Temperature, Short Circuit
