Xantrex Freedom X 2000 User Manual

Basic Installation Procedures
28 Freedom X 2000 - 230V Owner's Guide

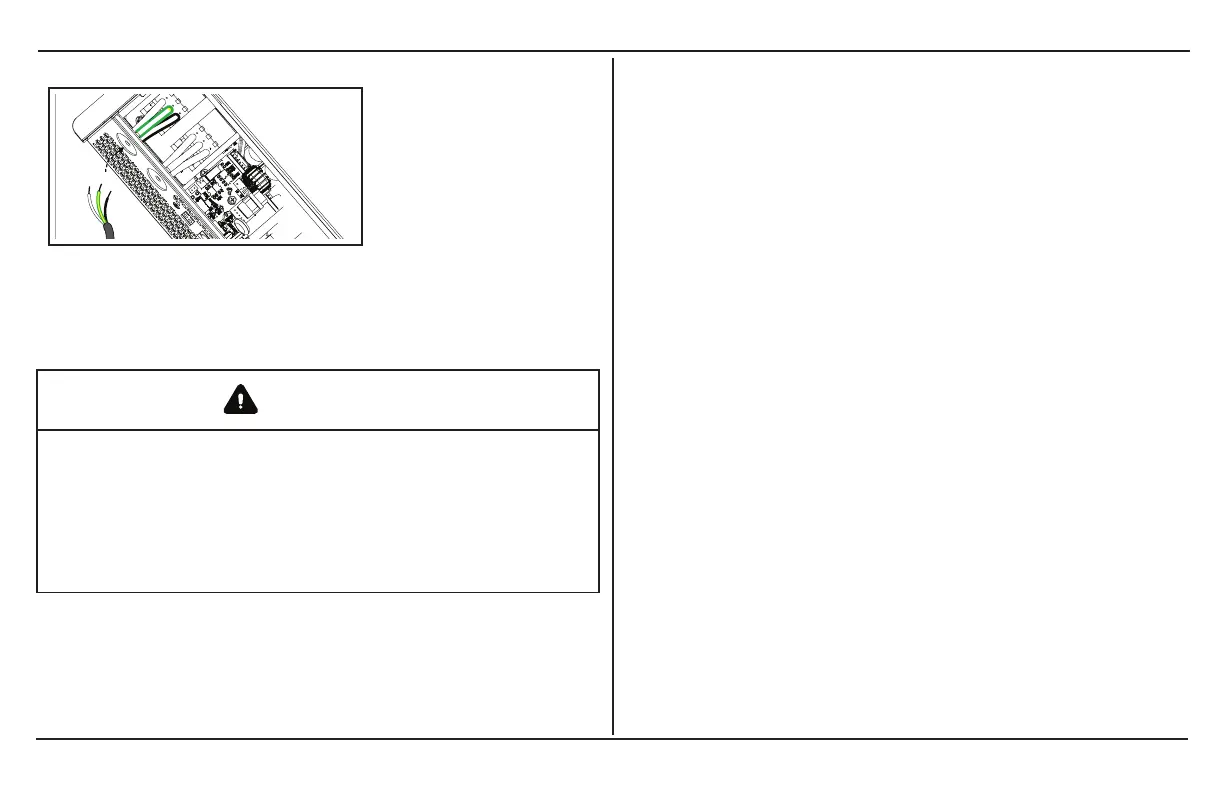

the Neutral (N), Earth(G), and Line (L) connections.
N
L
G
9.
Tighten the strain relief clamp to secure the wires.
10.
Replace the wiring compartment cover (using a #2 Phillips
torque screwdriver - see WARNING), if you are finished with
connecting all the AC wires in the unit.
WARNING
ELECTRICAL SHOCK HAZARD
Use a torque screwdriver to tighten the captive nut panel screw to
0.56N-m torque of force to ensure a proper earth connection and a
required tool access to the wiring compartment.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.
11. Connect the other end of the wires to a circuit breaker in AC
distribution panel providing AC power to the loads.

Xantrex Freedom X 2000 Specifications

General

Continuous Power	2000W
Surge Power	4000W
Input Voltage	12V DC
Output Voltage	120V AC
Output Frequency	60 Hz
Efficiency	90%
Waveform	Pure Sine Wave
Protections	Overload, Over Temperature, Short Circuit
