Preparing for Installation
975-0402-01-01 2–7
This guide for use by qualified installers only

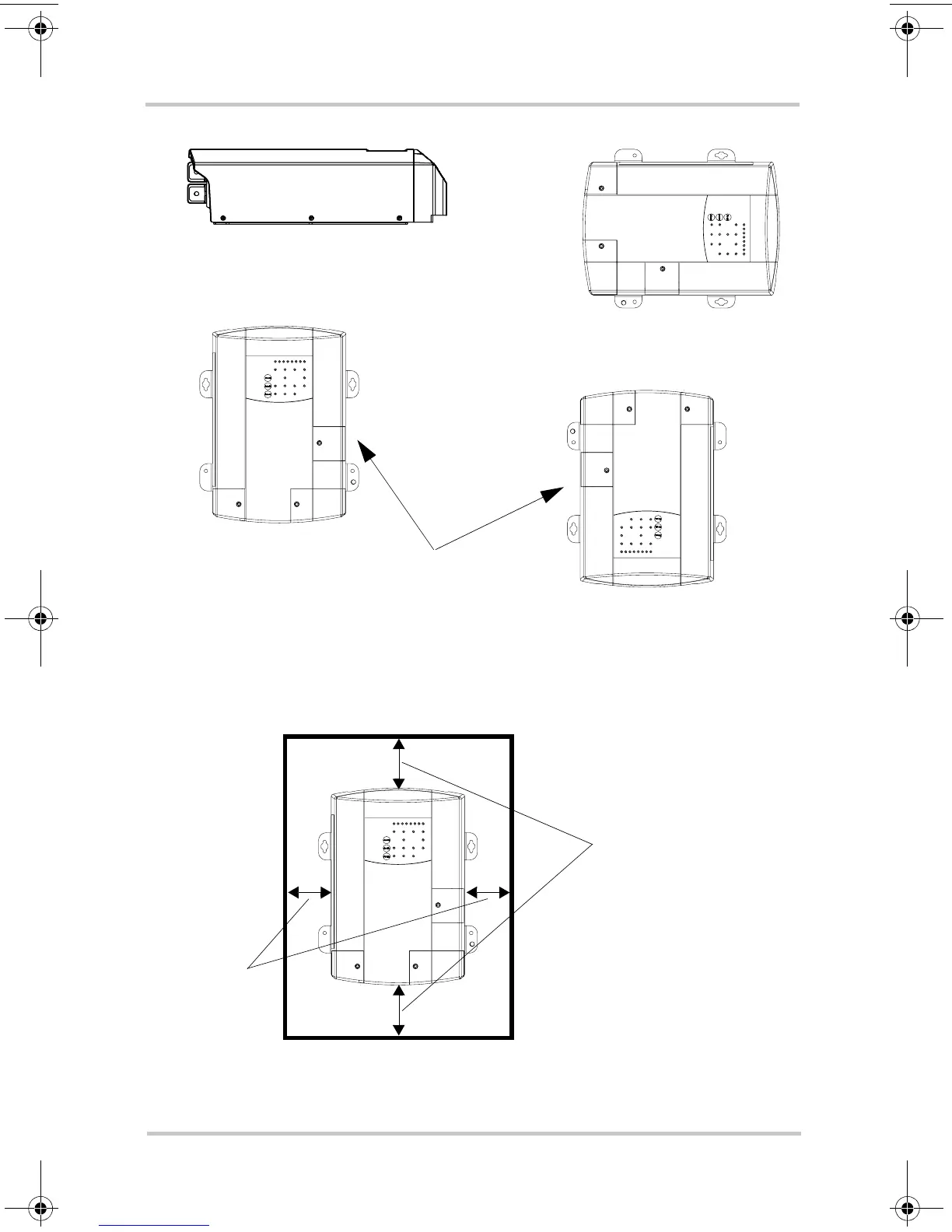

Figure 2-2
Truecharge™ 2 Battery Charger Mounting Orientations
Figure 2-3
Ventilation Clearance
Deck Mount - this orientation meets IP-32
marine requirements and is drip-proof.
Vertical Wall Mount (Rear panel facing down or up) - this
orientation is allowed in locations that are always dry but
is not approved for marine installations without additional
drip protection.
Horizontal Wall Mount (with AC wiring higher
than DC terminals only) - this orientation meets
IP-32 marine requirements and is drip-proof.
a) b)
AC
DC
c)
d)
6cm.
(2.5 in.)
10 cm.
(4 in.)
TC2 Series BattChg Install Guide.book Page 7 Monday, June 30, 2008 3:18 PM
