Installation
AC Input Power
42 Operating Manual for XDC Series Power Supply
6. Route the AC wires to the input terminal block by connecting the red, black, and
white wires to the remaining 3 cable clamp connectors. There is no set order for
connecting the wires. Any of the 3-phase wires can be connected to any of the 3
line input connectors. To connect each wire, loosen the terminal screw, insert the
stripped wire 0.55 in. (14mm) into the terminal, and tighten the screw securely.
7. Reinstall the AC input strain relief/cover, routing wires inside the cover to
prevent pinching.
8. Connect the free end of the cable to the AC source, checking that the voltage is
within the approved input range for the supply.
9. Energize the AC input.
It is now safe to turn the power supply on.

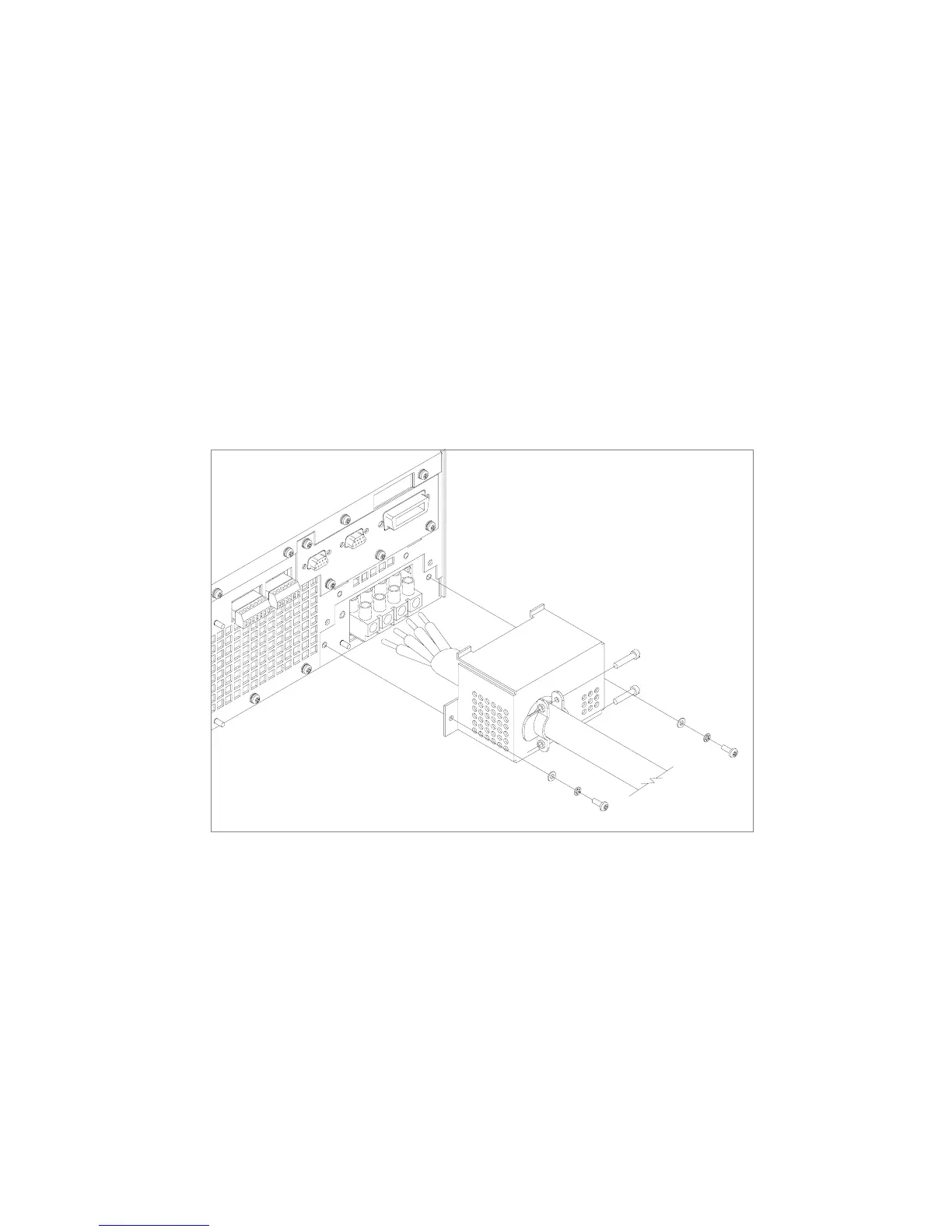

Figure 2.5 Attaching the AC Input Wires for 6000 Watt units
