15.
(Figure
15):
Install the fuser bearing and
16.
(Figure
15):
Ensure that the fuser roll
is
not
the clip.
pinched under the mounting screws.
NOTE: The overheat thermostat must be
in
17.
Lower and
push
in the cleaning blade
the up position towards the cleaning
weight, while ensuring that the opposite
blade solenoid weight. The overheat
end of the cleaning blade
is
seated.
thermostat connectors can be
interchanged with no effect on their
function.
tG-ki=?l

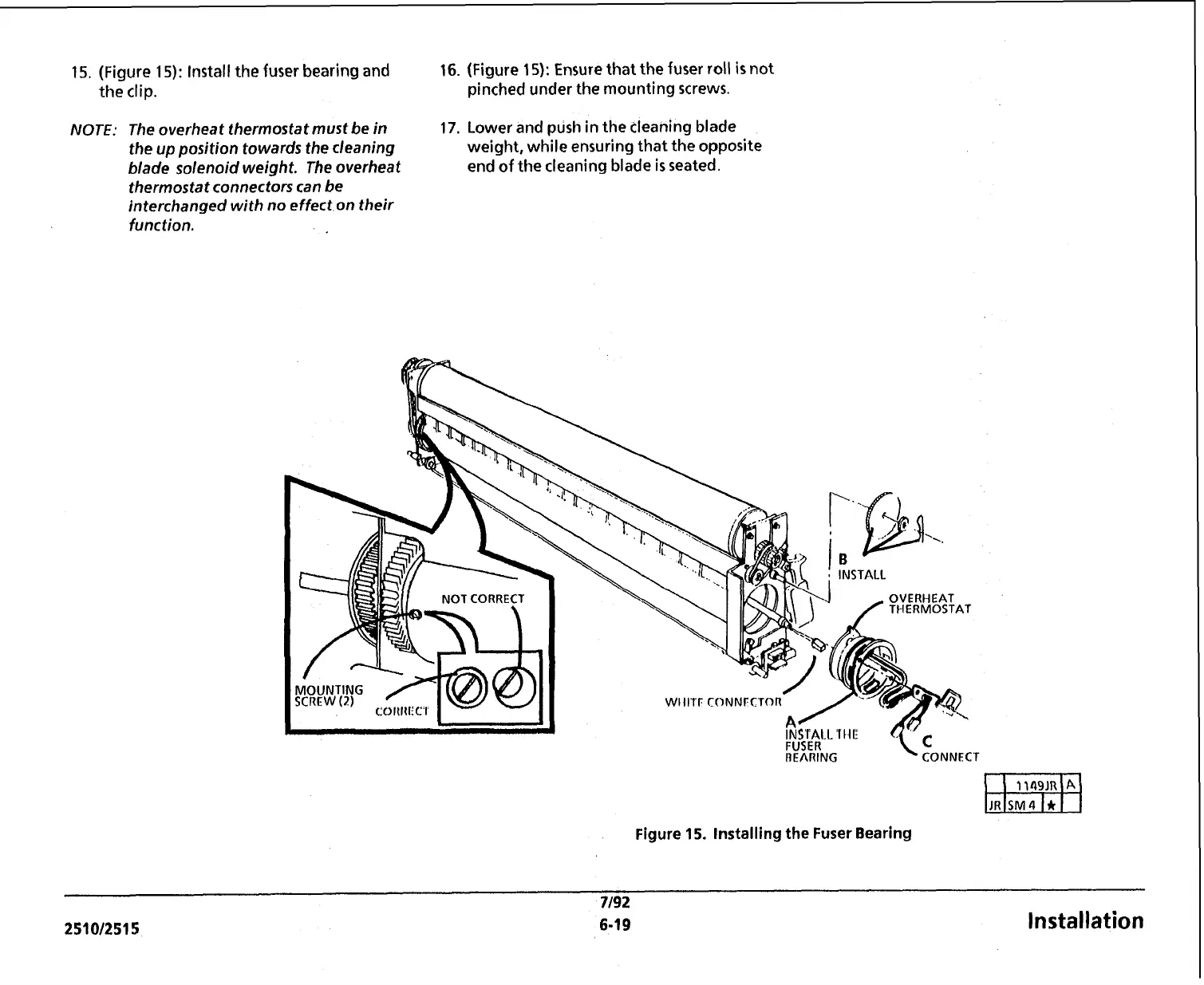

Figure
15.
Installing
the
Fuser Bearing
7/92
25101251s
6-1
