18. (Figure 16): Check the position of the
pressure plate.
19. Reinstall the retaining bar.
20. Reinstall the fabric guide.
J A
ENSURE THAT THE PRESSURE PLATE
IS OVER THE PINS ON BOTH SIDES
\ PRESSURE PLATE
\ MEDIA GUIDE
(251 5 ONLY)

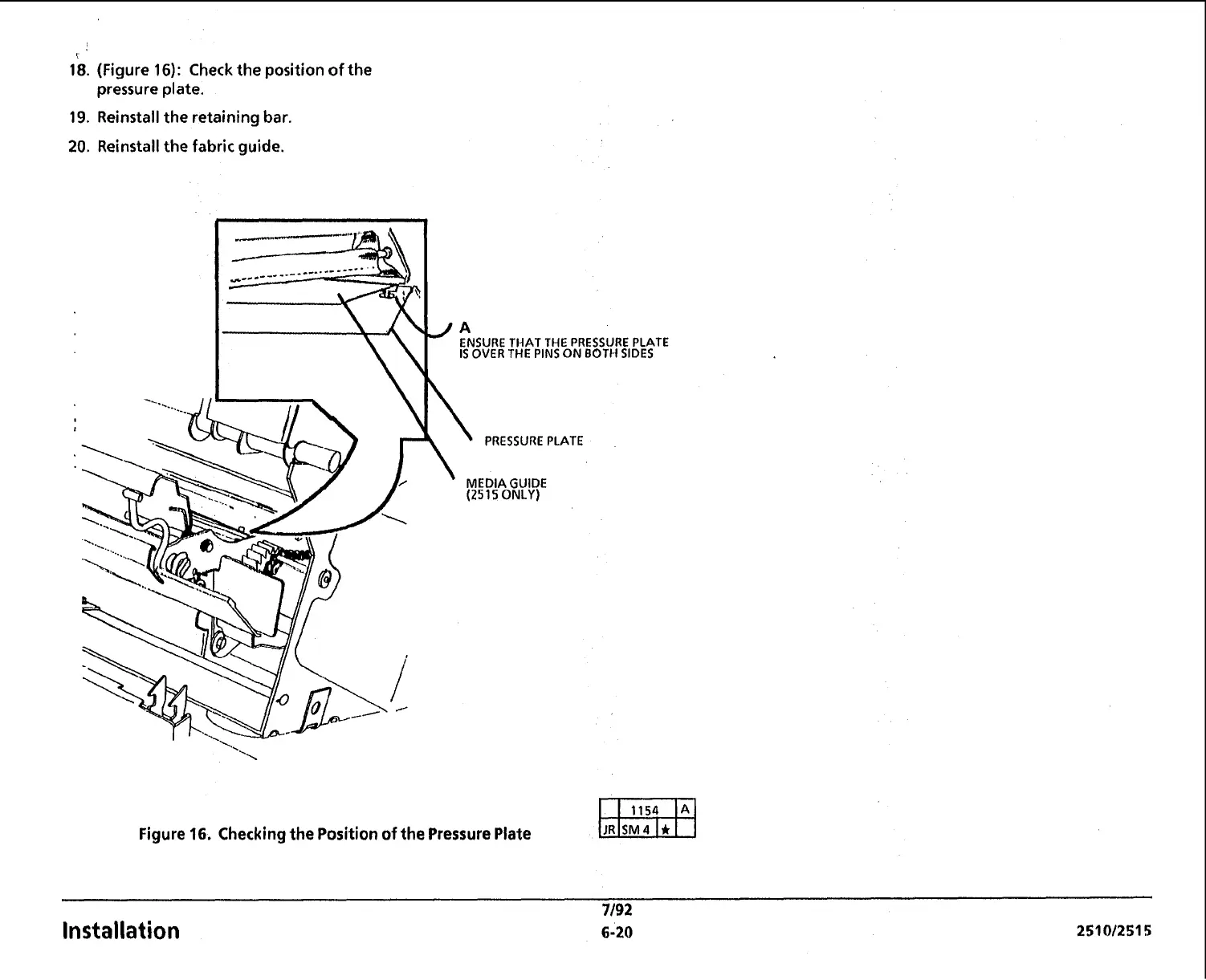

Figure 16. Checking the Position of the Pressure Plate
