Xerox 2510

2 1. (Figure 17): Remove the photoreceptor
drum shaft assembly.
NOTE: Only the photoreceptor drum shaft
assembly will be in the xerographic
module. The drum is shipped separately
and will be installed later.
22. Clean the auger -to -drum seal (PL9.1 item
19) and reform it towards the drum to
provide
a seal between the drum and the
augur extrusion.
NOTE: Ensure that the cleaning blade is fully
into
the blade support assembly.
23. Install the photoreceptor drum beginning
with the replacement in
(REP 9.3).
24.
Check the cleaning blade solenoid (ADJ 9.1).
25.
Reinstall the xerographic module (REP 9.1).
D
REMOVE DRUM @ '
SHAFT c
ASSCYBLY REMOVE (2)
REMOVE
BELT

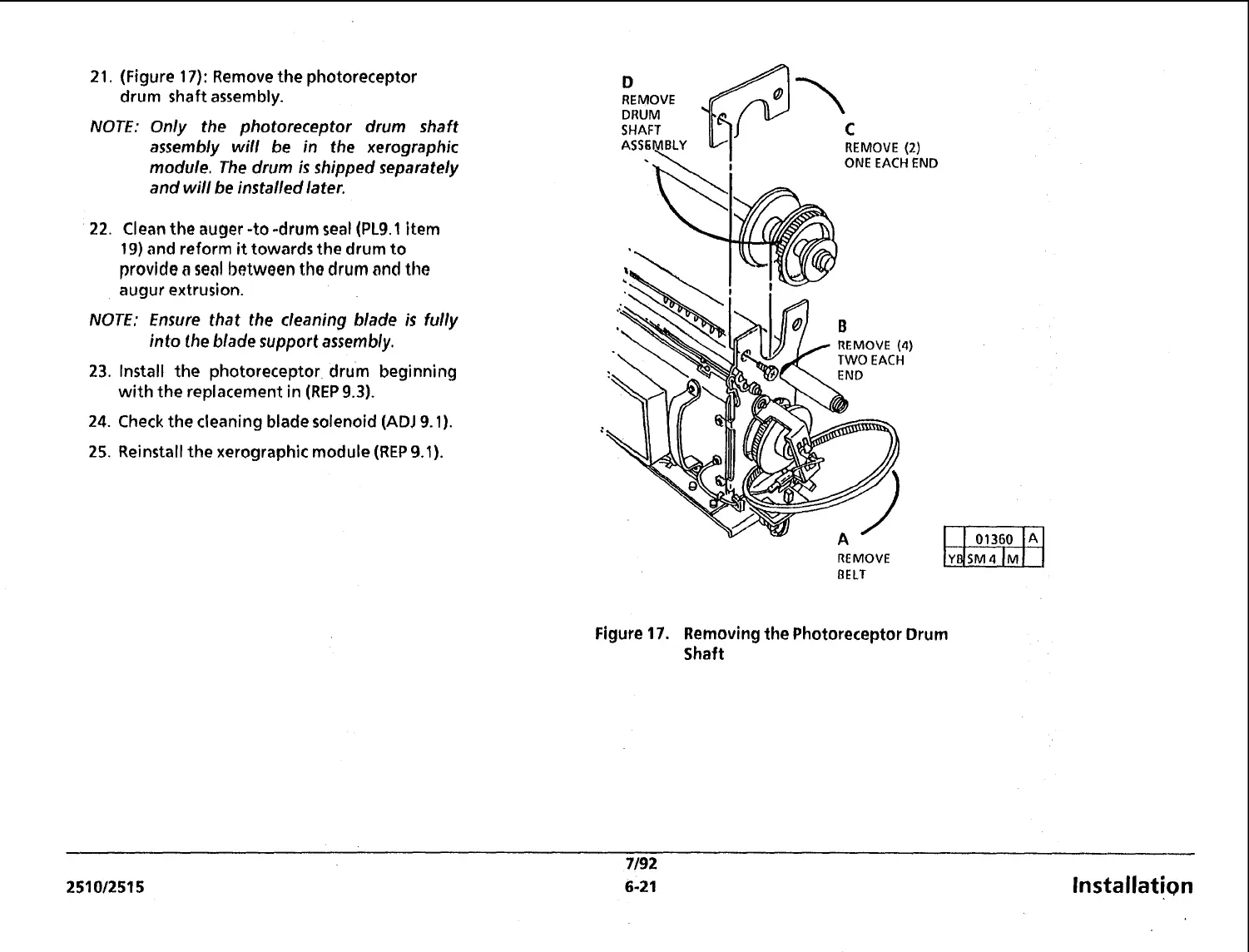

Figure 17. Removing the Photoreceptor Drum
shaft
